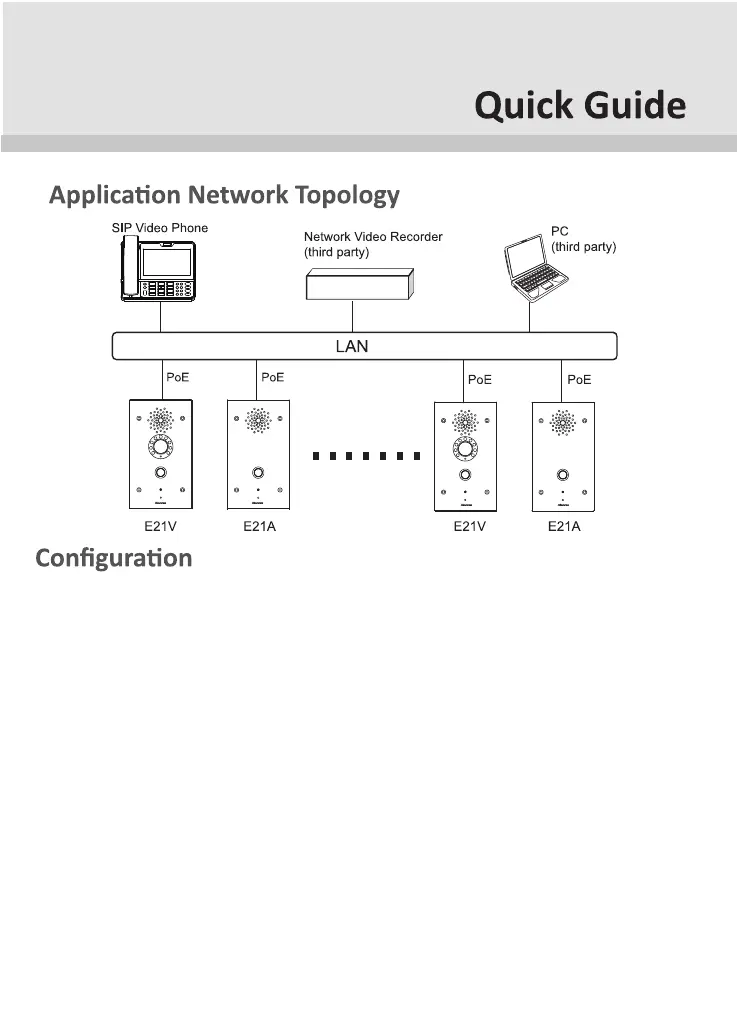

E21X
1. Access the Web UI: Input the IP address into browser to configure the phone.
2. Account Registration: On web UI, go to the path: Account > Basic to register an account
and fill in the account information. ( Please refer to admin guide for
more information)
3. Push Button Configuration: On web UI, go to the path: Intercom > Basic > Push Button
to configure the call number.
4. DTMF code Configuration: On web UI, go to the path: Intercom > Relay > Relay
ID/DTMF and choose the DTMF code number in corresponding area.
IP Announcement
1.While E21X starts up normally, hold the Call Button for several seconds after Status LED
light turns blue, the voice system will enter IP announcement mode.
2.In announcement mode, the IP address will be announced periodically.
3.Press Call Button again to exit the announcement mode.
* If no IP address has been obtained, E21X announces “IP 0.0.0.0”.
3
