Akuvox R26 Series User Manual

2
1.2. Connector Introduction
Ethernet (POE): Ethernet (POE) connector, which can provide
both power and network connection.
12V/GND: External power supply terminal if POE is not available.
RS485A/B: RS485 terminal.
DOORA/B: Trigger signal input terminal.
RelayA/B (NO/NC/COM): Relay control terminal.
Note: The general door phone interface diagram is only for
reference.

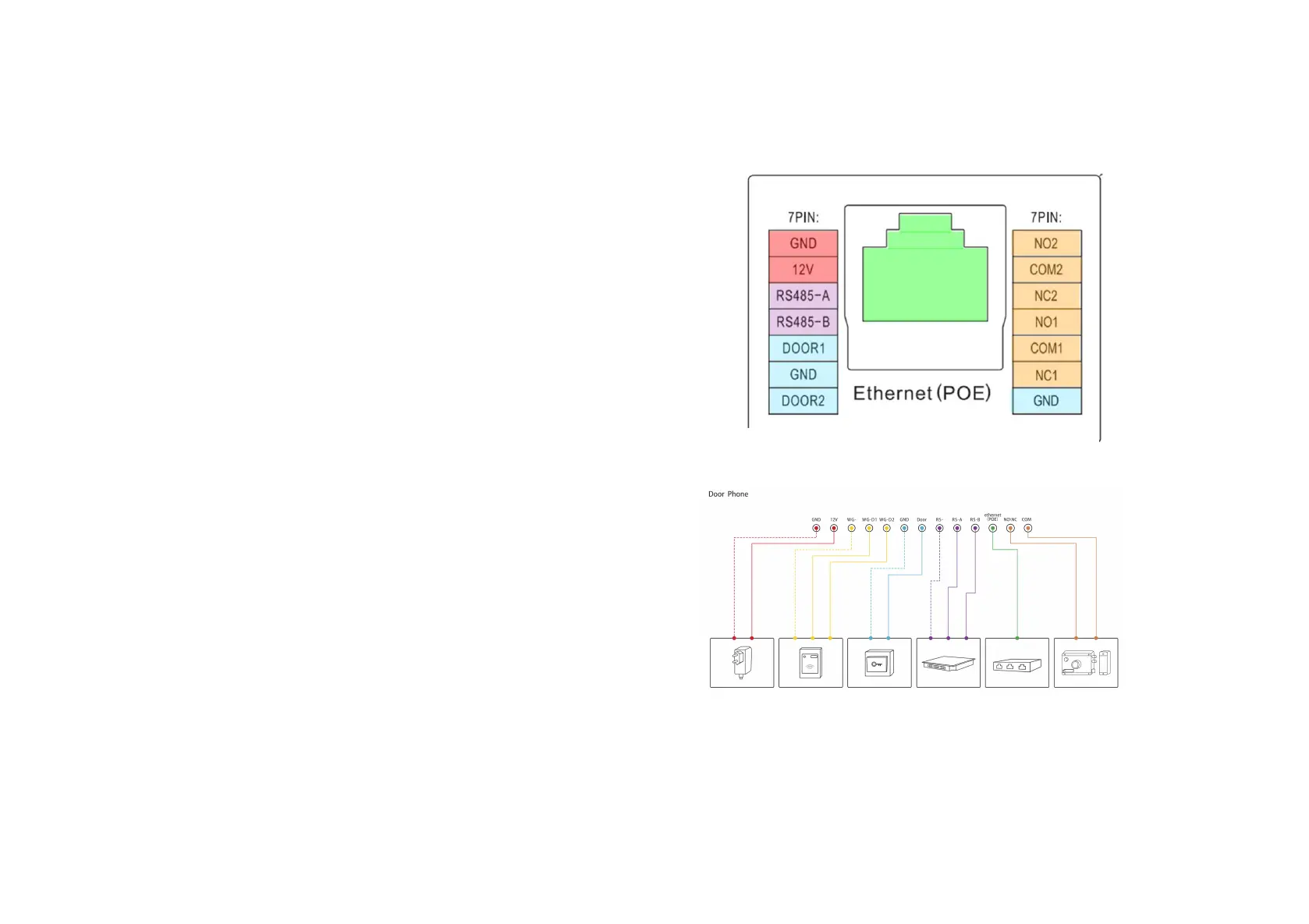

Figure 1.2-2 General interface
Figure 1.2-1 R26’s interface

Akuvox R26 Series Specifications

General

Brand	Akuvox
Model	R26 Series
Category	Intercom System
Language	English
