Ensure the pump spacers are used to prevent the cables from being trapped.
Red
Brown
Flow Sensor
Wire
+
S
Black
White
Red
Black
Pump Wire
Connector Block
All cable connections must be in a dry location.

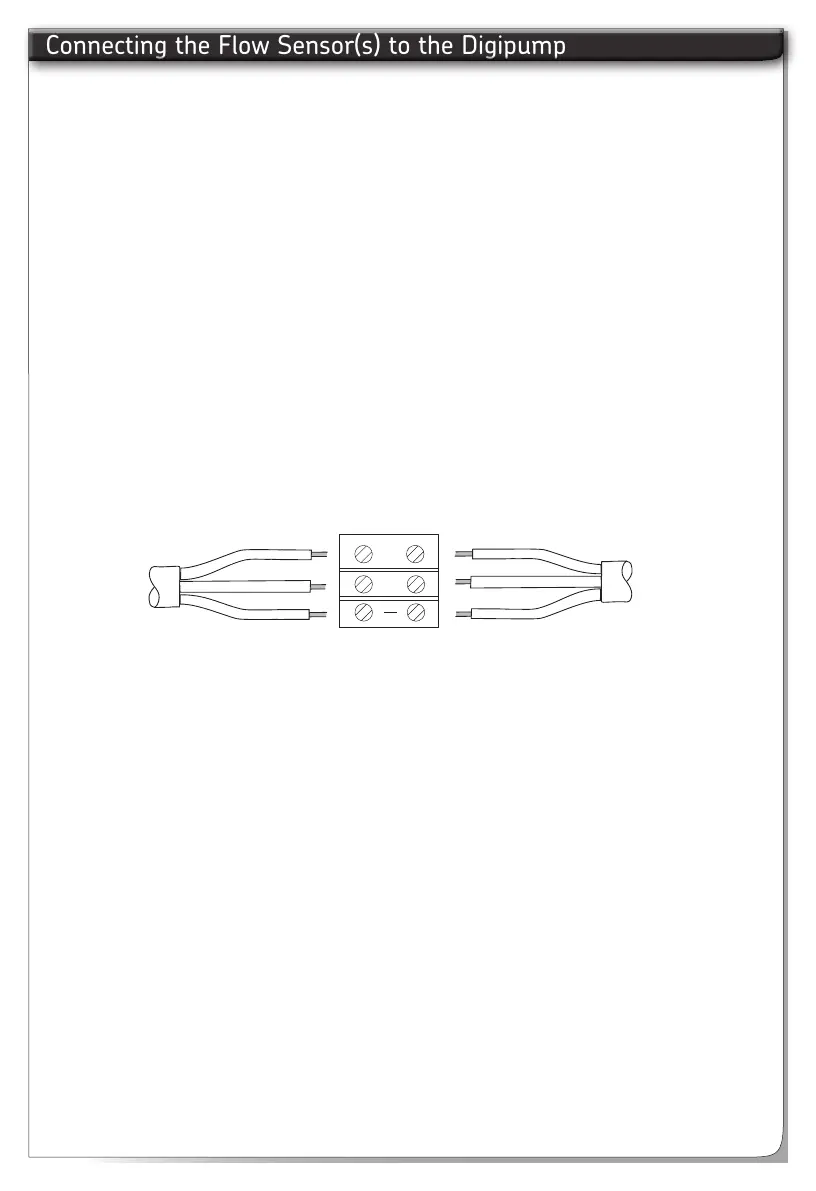

Connecting the Flow Sensor(s) to the DigipumpConnecting the Flow Sensor(s) to the Digipump
11
Ensure sensor and filter are in an easily accessible location.
Ensure all cables and plumbing are behind water resistant surfaces.
The pump has two flow sensor cables, for mixer showers with two water feeds, both must be
connected to the separate flow sensors. Fit one flow sensor to cold water feed pipe and one to
the hot water feed pipe.
For electric showers only connect one sensor, the other sensor wire must be terminated in a
connector block and insulated using electrical insulation tape at a dry location.
Failure to do this may damage the pump.
Note: To connect the pump directly to a compatible electric shower please see the instructions
supplied with your electric shower.
