MIN
HEAD
1.0m Max
0.5m Max
0.5m
Max
LIFT
Shower Head
Waste
outlet pipe
NOT PREFERRED
PREFERRED (NO ELBOWS)
Shower Tray/Waste
Important: Pipe connections must be easily accessed and pipework must be secured to prevent vibration and noise.
NEVER fit pipe inserts.
ALWAYS fit the supplied
collet locking clips.
MINIMISE PIPEWORK LENGTH WHEREVER POSSIBLE
OR
100mm (4in)
MIN GAPS
Use the supplied Pipe Adaptors
to connect to waste outlet pipe.

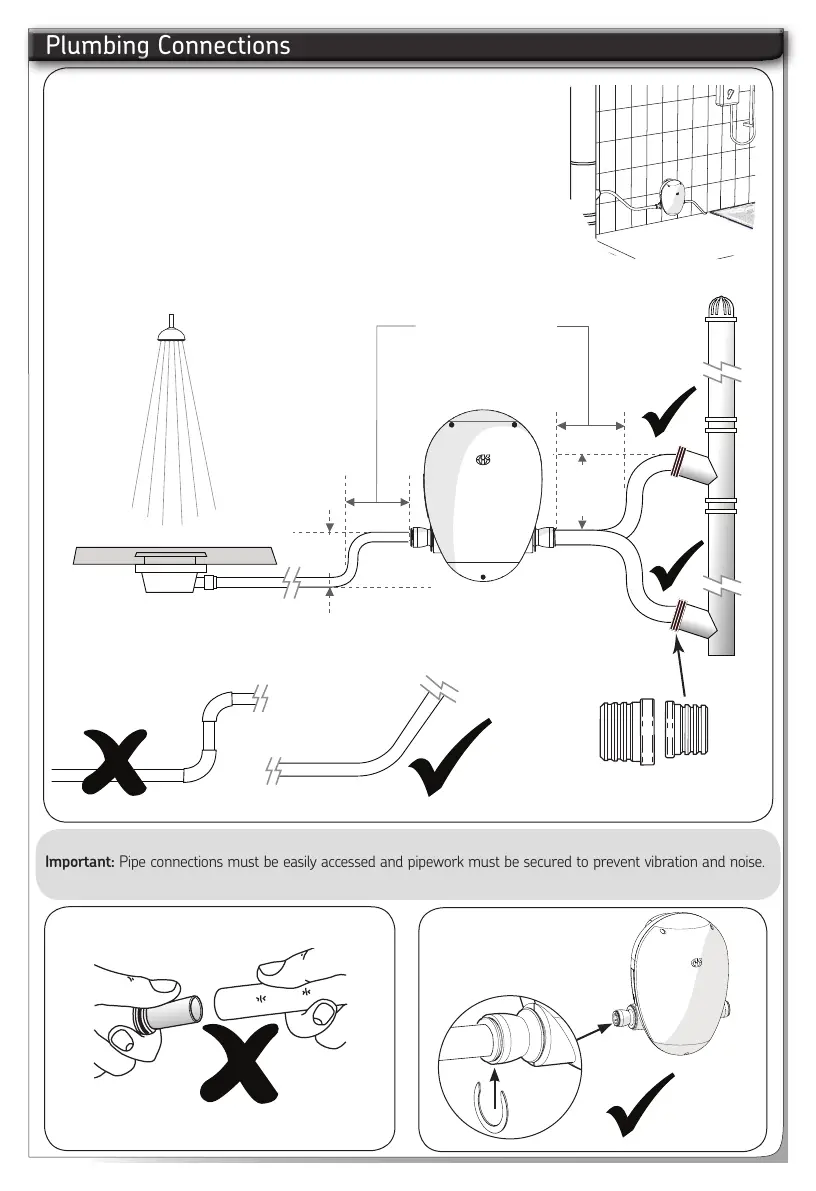

Plumbing ConnectionsPlumbing Connections
8
For best performance locate within 1m (39in) of shower and minimise
the number of lifts, bends and the length of all pipes connecting the
pump to the waste outlet pipe.
Note: Increased Head/Lift conditions will affect the pump’s performance.
See product specifications.
