Refit the front cover.
Fit the non-return valves as
shown. Fit the pump connectors
to the pump.
Screw both connectors into
place. No thread sealant
needed, firmly hand tighten
only.
Check that you have not
overtightened and distorted
the non-return valves before
connecting the pipework.

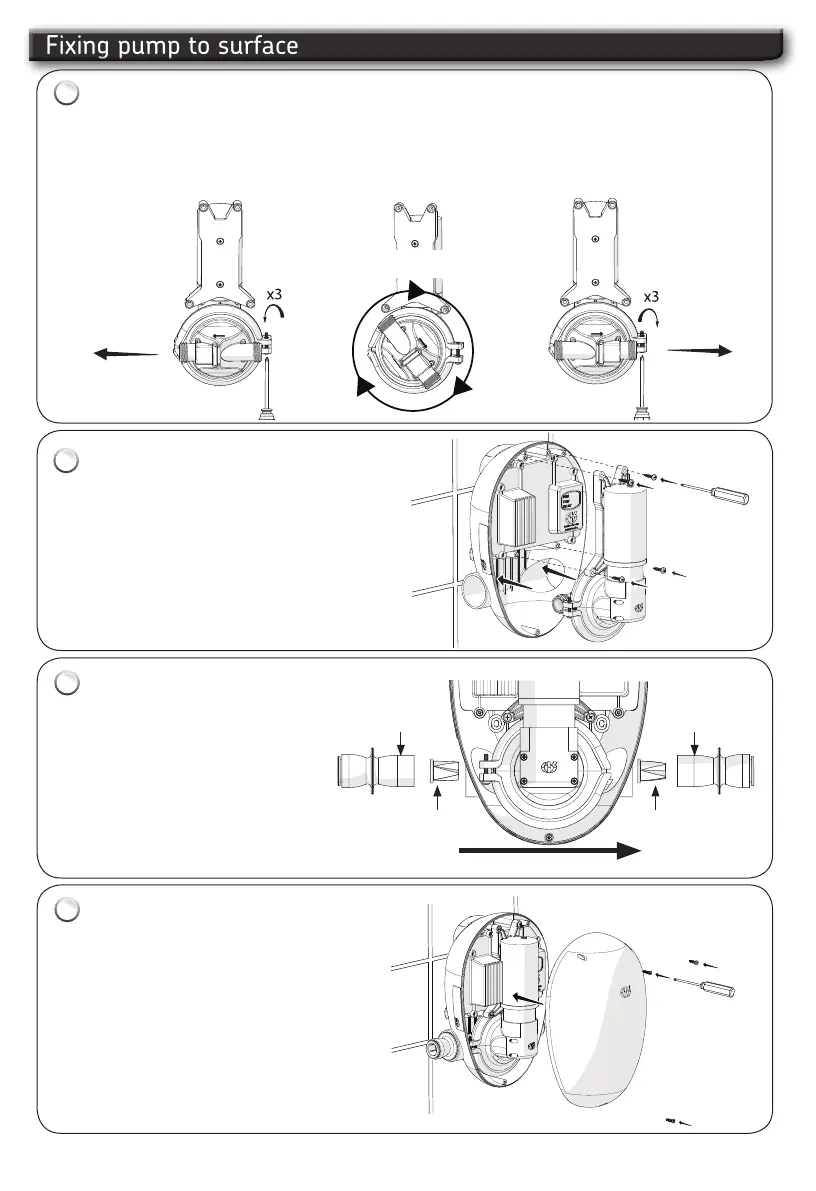

Fixing pump to surfaceFixing pump to surface
Check that the flow is in the required direction, reverse as required. Loosen the
pump head housing, rotate and fully tighten home.
The pipework to this high performance pump must be clamped down effectively,
AKW advise and recommend you clamp pipework either side of joints, junctions
or connections and at a maximum of 500mm between other supports.
Rotate to direction of flow
Loosen
Fully tighten
Flow directionFlow direction
5
Remove shipping tapes from pump
inlet and outlet.
Refit the pump to the back plate.
Reconnect pump motor cable.
6
Flow direction
non-return valve
non-return valve
22mm
Connector
22mm
Connector
7
8
7
