Akw M17 - Fixing Pump to Surface

Important: For service & maintenance
purposes this product should be installed
in an accessible location.

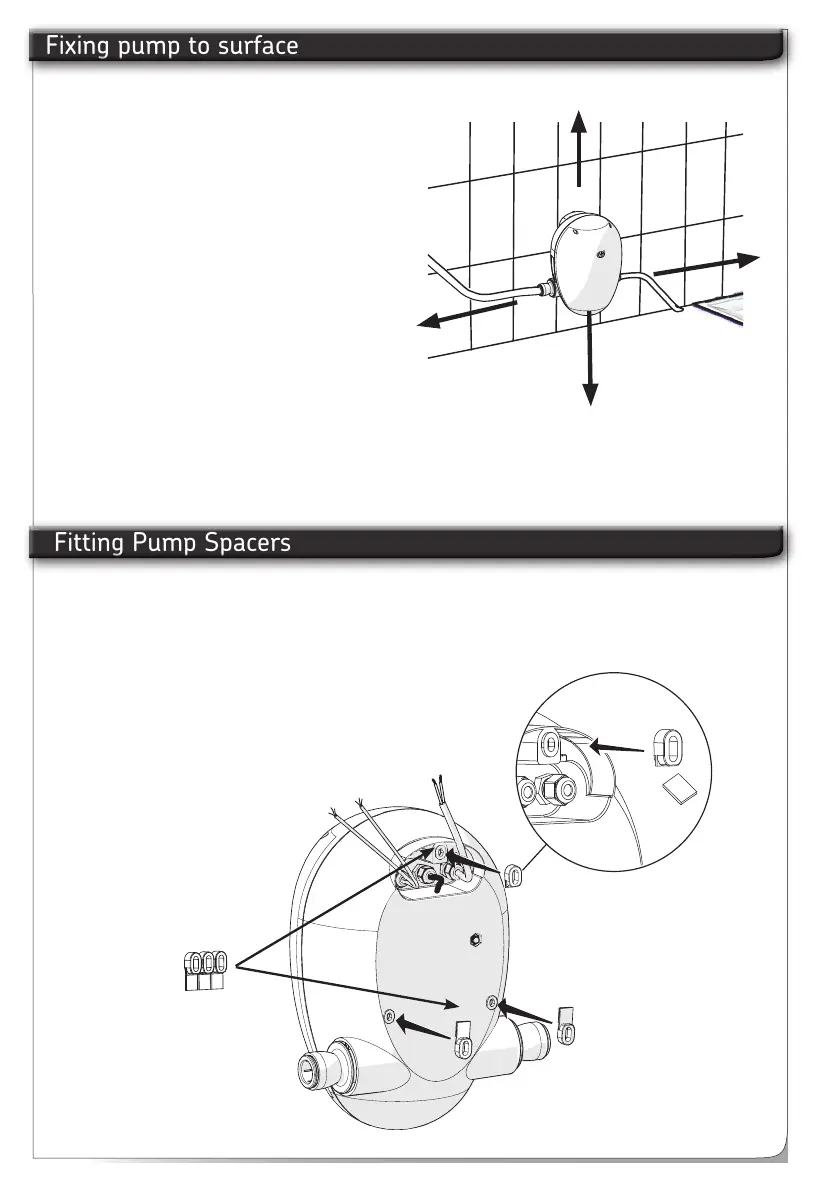

The pump unit must be located on a
vertical surface with the inlet/outlet
connections at the bottom of the unit
in horizontal alignment, with the AKW
case logo at the top.
Pipe connections must be easily
accessible and a clearance of 100mm
around the base and sides is
recommended.
Fitting Pump SpacersFitting Pump Spacers
5
100mm (4in)
minimum clearance all round
Flow sensor
cables
Power cable
Pump Spacers
Remove the adhesive tab at
this hole only.
Fixing pump to surface Fixing pump to surface
Use the Pump Spacers to prevent the cables being trapped.
Separate the spacers, remove the adhesive backing and snap lock into position
