Before you start... Before you start...
3
MIN
100mm MIN
*
HEAD
LIFT
*
*
*

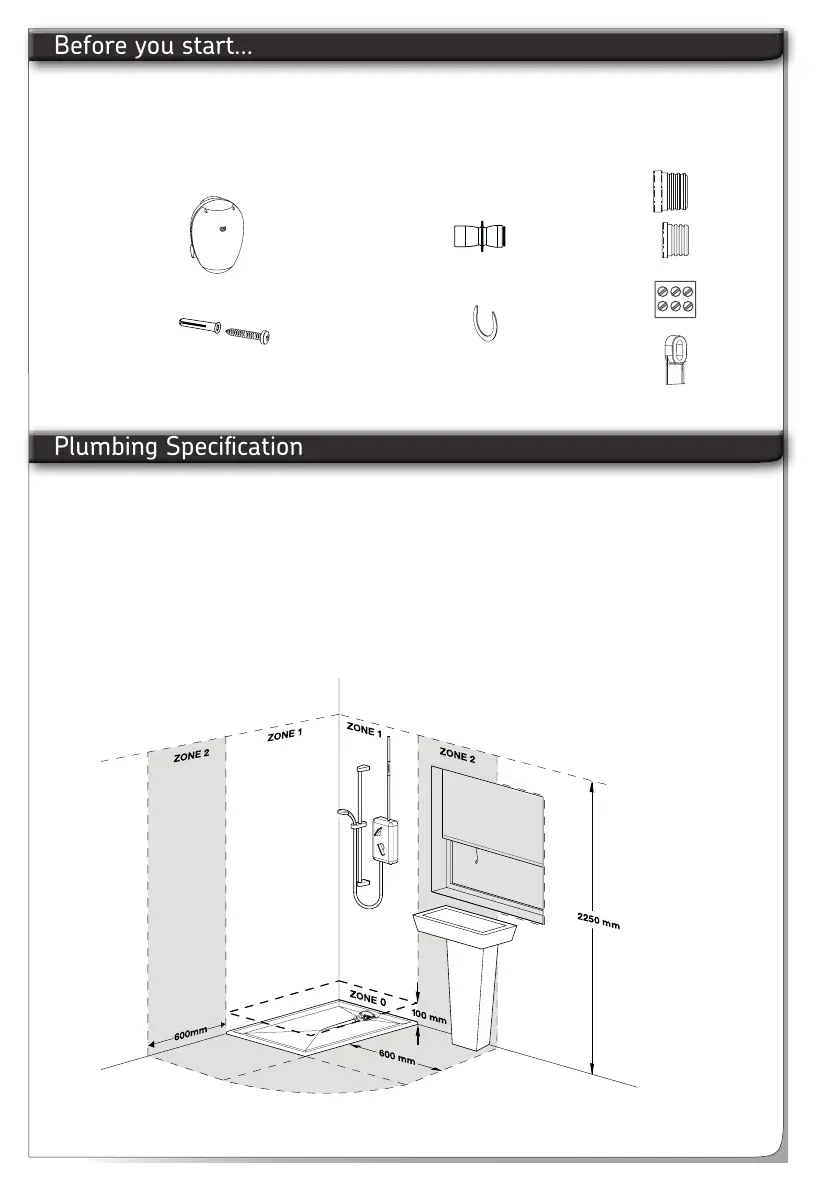

Box contents
1x
3x
3x
1x
2x 22mm
2x 22mm
1x
2x
MIN
100mm MIN
*
HEAD
LIFT
*
*
*
Plumbing SpecificationPlumbing Specification
This product is rated at IP45 and suitable to be installed in Zone 1, 2 or Zone 3 of a
shower room only if these instructions are fully complied with.
The unit must be located away from the direct line of water jets.
Note: Zone 1 lies above zone 0 and upto 2250mm (88in) vertically above a shower tray
or wet floor area.
The perimeter of zone 1 of a wet floor is within a 1.2 metres (47in) radius of the
shower head position. Zone 2 is the area 600mm beyond Zone 1.
FOR GUIDANCE ONLY- PLEASE REFER TO BS7671 FOR FURTHER DETAILS
Confirm you have all the correct parts and tool required.
