Name
Handle
Drive clutch lever
Blade lever
Gearshift lever
Throttle lever
Grass bag
Guard
Adjustment lever
Wheel
Fuel tank port
Recoil starter
Air cleaner
Muffler
Housing
Step
Ignition plug
Plug cap
Fuel cock
Blade
Blade mounting bolt
Oil tank cap
No.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
Description
Grab this handle when using the lawn mower.
Controls mowing and stoppage.
Released : Stops mowing.
Rotates and stops the blade.
Pushed forward with button pressed: Rotates the blade.
(When pushed forward with the button not pressed, the blade does not rotate.)
Released: Stops the blade rotation.
Adjusts the mowing speed.
Receives the mown grass.
Adjusts the mowing height. (Mounted at each wheel.)
Refuels gasoline.
Pull the knob to start the engine.
Put your foot when starting up the engine.
Supplies fuel to the engine. "ON" : Fuel supply "OFF" : Fuel stop
Bolts to mount the blade to the machine.
Cap for oil filler port with oil gauge.
Pushed forward : Starts mowing.
(Position)
" "
" "
" "
" "
Adjusts the engine speed.
(Meaning)
Choking
High speed
Low speed
Stop
(Usage)
Engine start
Mowing
Idling
Engine stop
This lawn mower is designed and manufactured to mow a lawn.
Illustrations may differ from the actual machine you have purchased.
NOTE
Purpose of Use

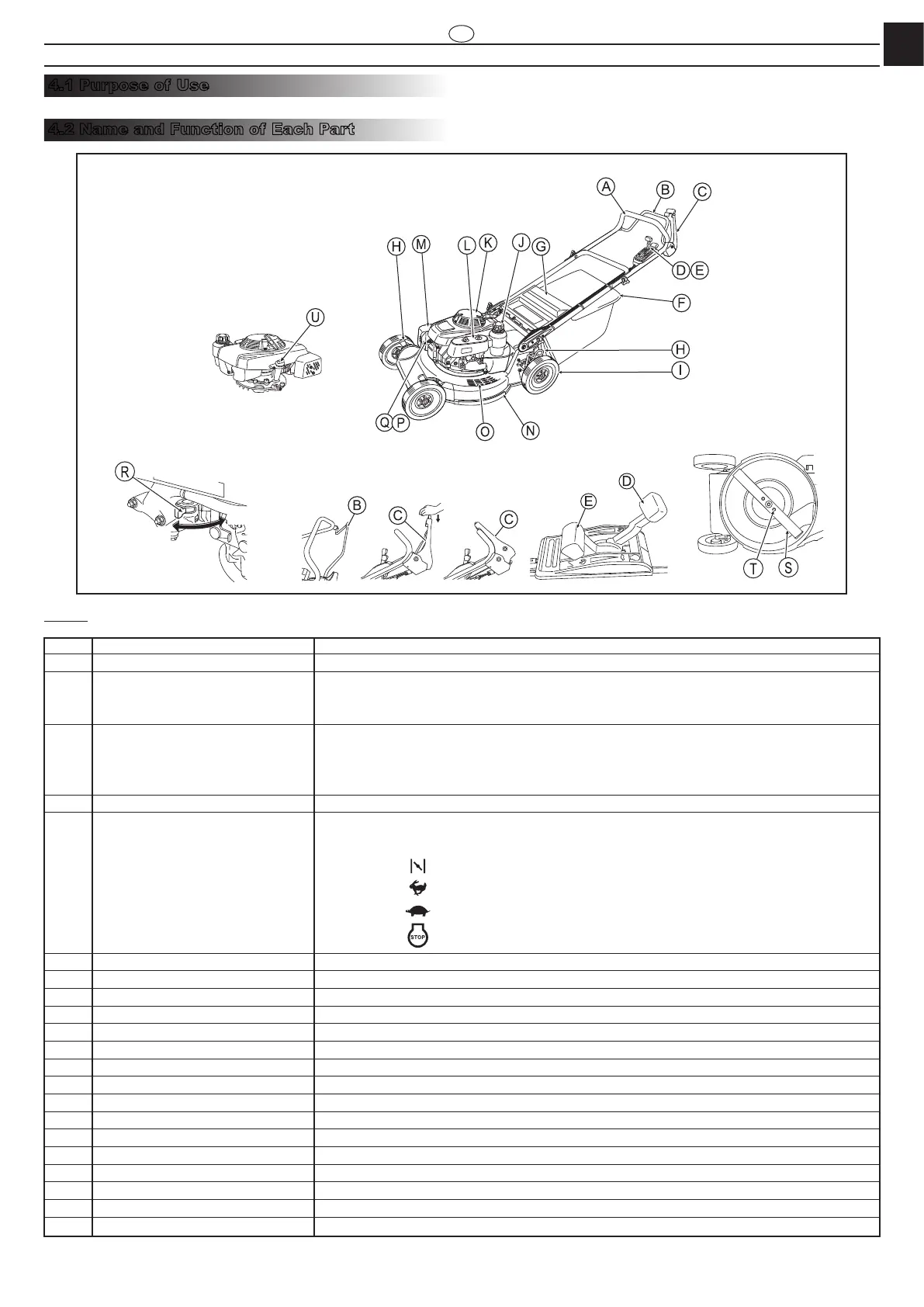

Name and Function of Each Part
