Alamo MACHETE - Hyd Cyl Asy - Lift - Pn 02967173 A

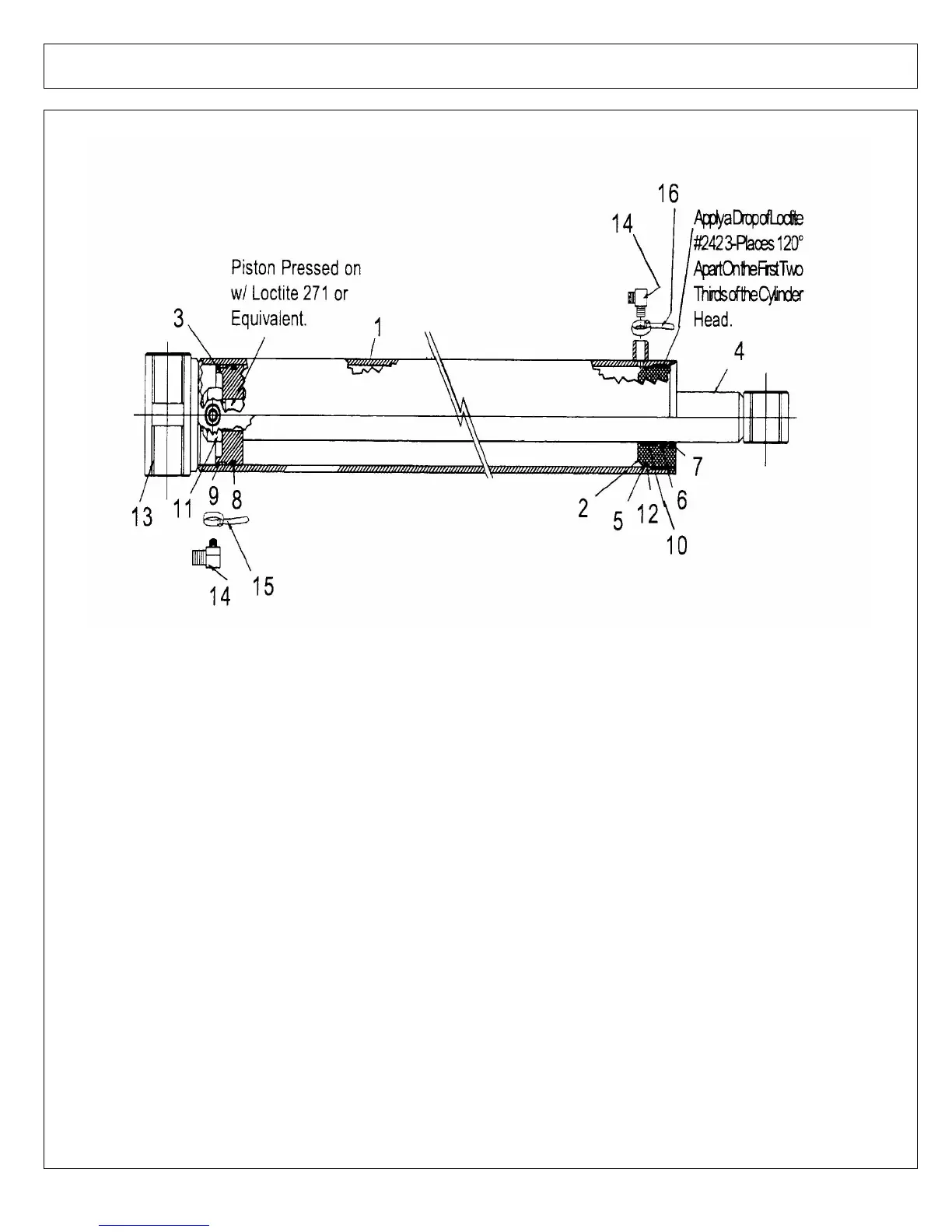

HYD CYL ASY - LIFT - PN 02967173A
ITEM PART NO. QTY. DESCRIPTION
02968841 - LIFT CYL. ASY, W/ FITTINGS
02967173A - LIFT CYL. ASY, L/ FITTINGS
1 02975466 1 TUBE / BARREL WLD`MT
2 02975452 1 CYLINDER HEAD
3 02975457 1 PISTON
4 02975552 1 ROD WLD`MT
5 * SEAL KIT 1 O-RING (IN ITEM 17)
6 * SEAL KIT 1 SEAL ROD, HALITE (IN ITEM 17)
7 * SEAL KIT 3 SEAL, WIPER ROD (IN ITEM 17)
8 * SEAL KIT 2 SEAL, PISTON RING (IN ITEM 17)
9 * SEAL KIT 1 WEAR RING (IN ITEM 17)
10 * SEAL KIT 1 WEAR RING (IN ITEM 17)
11 02975453 1 LOCKNUT
12 * SEAL KIT 2 SEAL (IN ITEM 17)
13 02968803 1 BUSHING
14 63149100 1 ELBOW
15 02968835 2 PLASTIC TIE, ORANGE / WHITE
16 02968834 2 PLASTIC TIE, ORANGE
17 02975527 1 SEAL KIT (ITEMS 5,6,7,8,9, 10 & 12)
©2012 Alamo Group Inc. Parts Section -133
Machete Boom 17 21 and 24 04-04 Rev 02-12
