Alamo MACHETE - 50 IN BLADE CARRIER ASY (PAN)

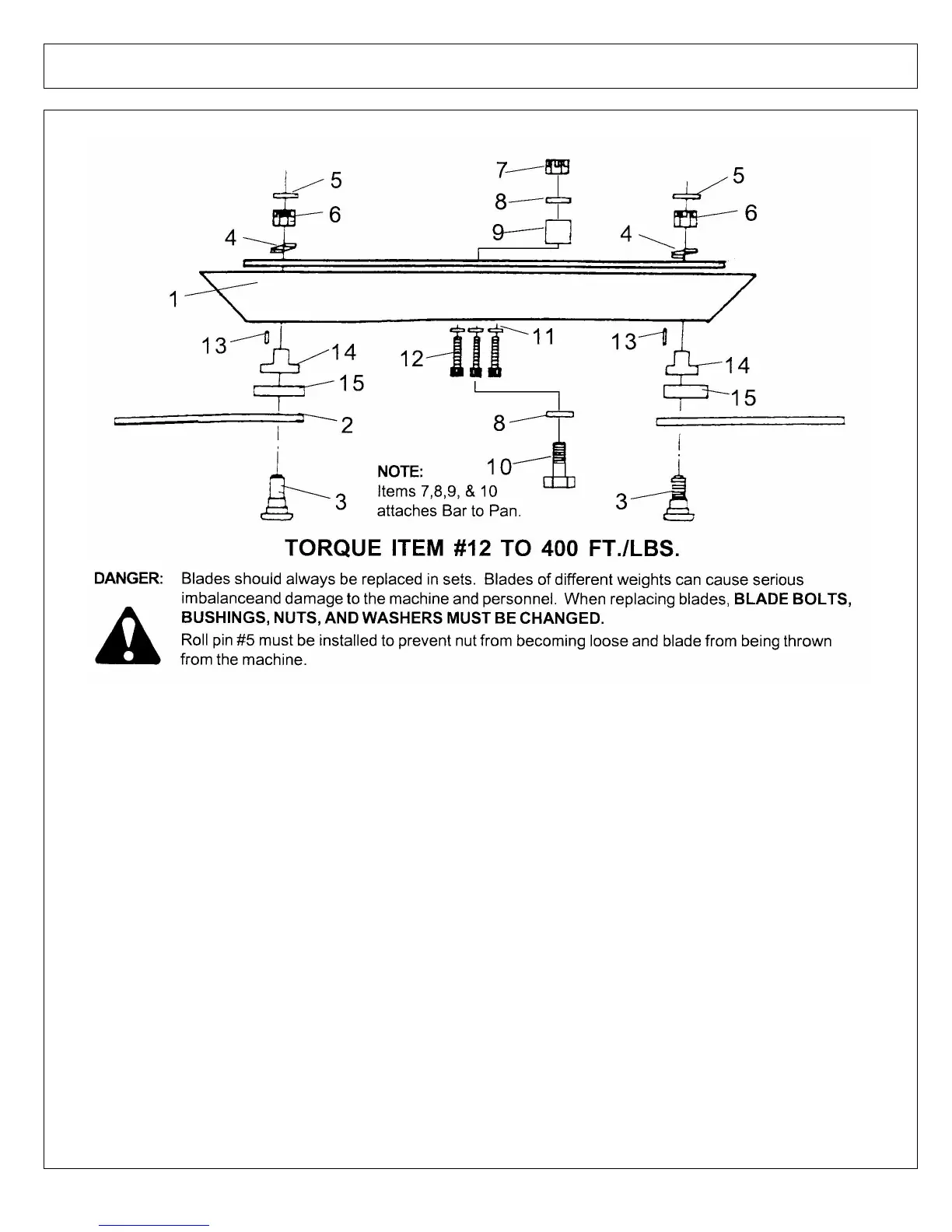

50 IN BLADE CARRIER ASY (PAN) - PN 02964457
ITEM PART NO. QTY. DESCRIPTION
02964457 - BLADE / SPIDER PAN ASY
1 02964804 1 SPIDER PAN SUB-ASY (W/ ITEMS 7,8,9 & 10)
2 02962722 1 BLADE SET, MATCHED SET OF 3
3 02964330 3 BLADE BOLT
4 00755623 3 WASHER, SPECIAL ( HARDENED )
5 00023200 3 ROLL PIN
6 00020900 3 SLOTTED HEX NUT, 1-1/8"-NF PL GR5
7 02030300 3 LOCKNUT, 1"-NC PLB
8 00748547 3 FLATWASHER, 1-1/32" X 2-3/16" X.22"
9 02964162 3 SPACER
10 7A16824 3 BOLT, HEX HEAD 1"-NC X 3"PL GR5
11 00003901 4 LOCKWASHER, 3/4" PL HEAVY
12 02886600 4 BOLT, SOCKET HEAD 3/4"-NC X 2-1/2" PL GR8
13 02964954 3 KEY
14 02964161 3 BUSHING
15 02965229 3 SPACER
