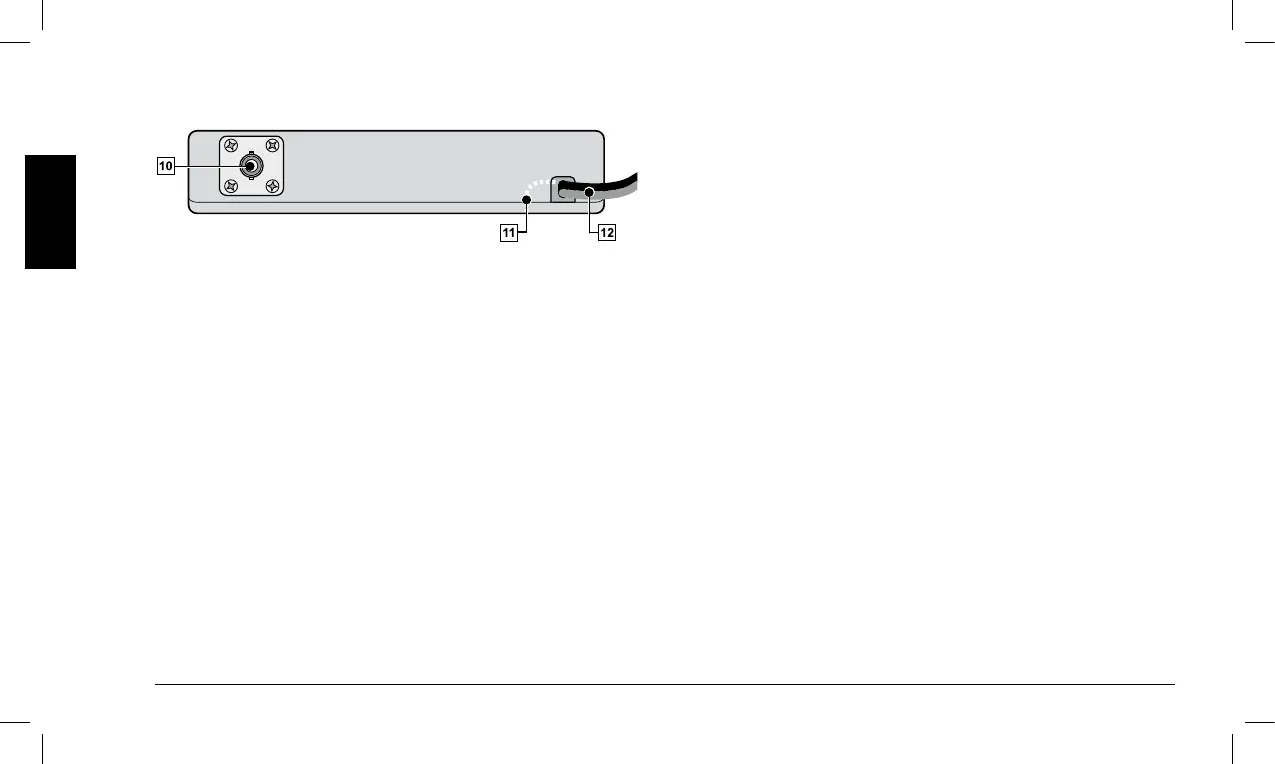

3.2 Rear side
[10] Aerial jack – BCN jack for the connection of a vehicle-mounted
aerial. For assistance in the selection of the correct model, refer
to the Catalogue or visit www.alanprofessional.it.
[11] External speaker output – This cable, which is tted with a
3.5mmadjustablejackisusedtoconnectanexternalspeaker.
For additional information, see paragraph 5.3.d.
[12] Power cable – This red/black cable must be connected to a
suitable 13.8 VDC power supply (the red wire must be con-
nected to the positive pole and the black one to the nega-
tive one);forexampletothebatteryofavehicle.
3.2.a Content of the package
(a) Transceiver
(b) Palm-sized standard MK06/35 microphone with built-in transmis-
sion key (PTT)
(c) Powercable(d) Vehiclerodwithxingscrewsandttings
(e) Support for microphone with screws
(f) User's Manual (this document)
2 Somecomponentsmayalreadybetted/connectedtotheunit,
depending on the model.Immediately contact thedistributor if
thepackagecontainsmissing/damagedcomponents.
2 TheMK06/35supportstheuseoftheMonitoringfeatureonlyif
ithasbeenremovedfromthesupport(hang-up).Foradditional
information,seeparagraph5.1.b.
