Alarko ACK2 - Page 34

34

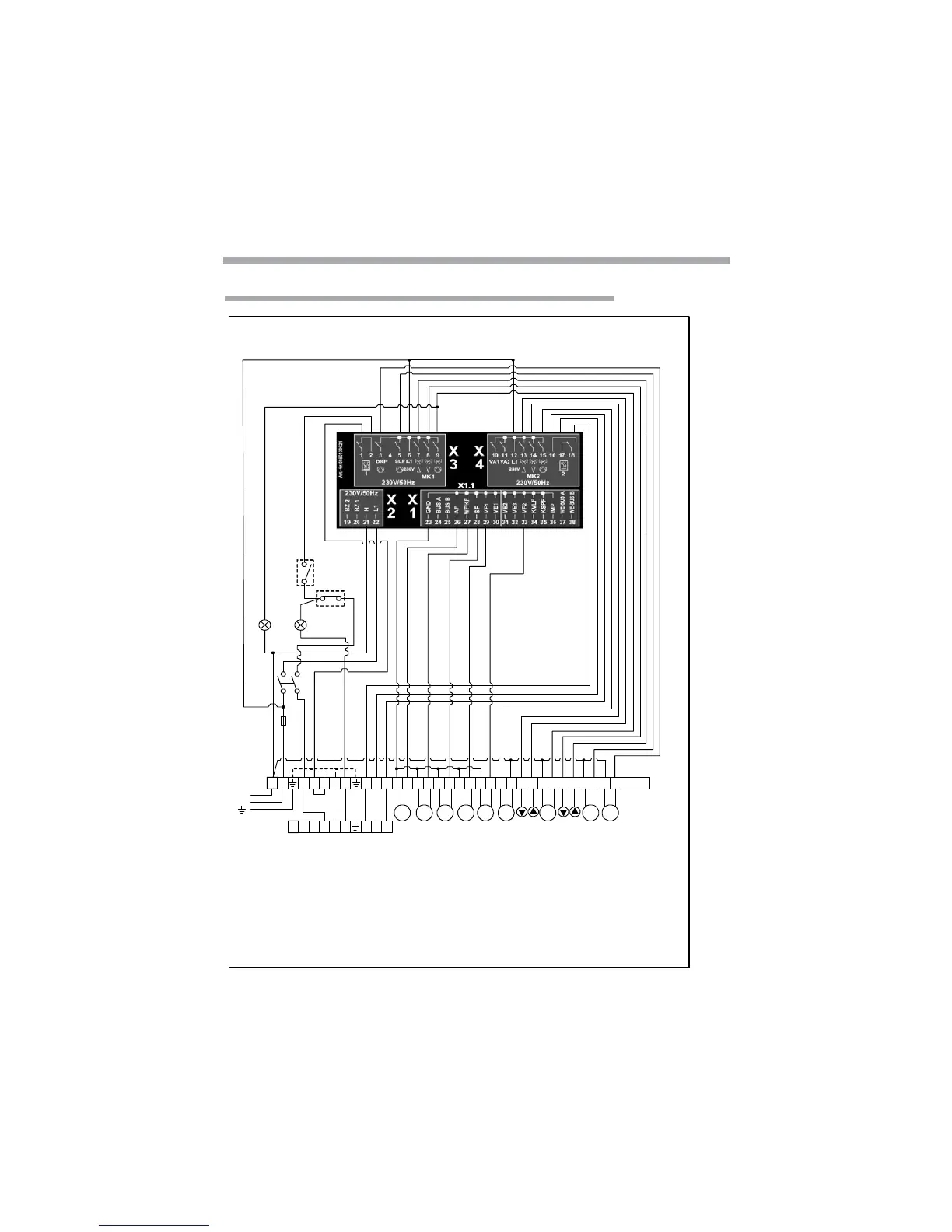

ECO PANEL 7/21 AND 12/31 ELECTRÝCAL DÝAGRAMS
KT1
AA
PL
LT
AL
N L 2 1 4 L N 18 17 16 G 26 G 27 G 28 G 29 G 33 15 N 14 13 N 9 8 7 N 5 N 3 KAZAN
AF KF SF VF1 VF2 P2 P1 BP DP
R S T1 T2 N 16T 18 17
N
L
BRÜLÖR
