GAS MULTIBLOCK MBC 1900 VEF MBC 3100 VEF SETTINGS
45

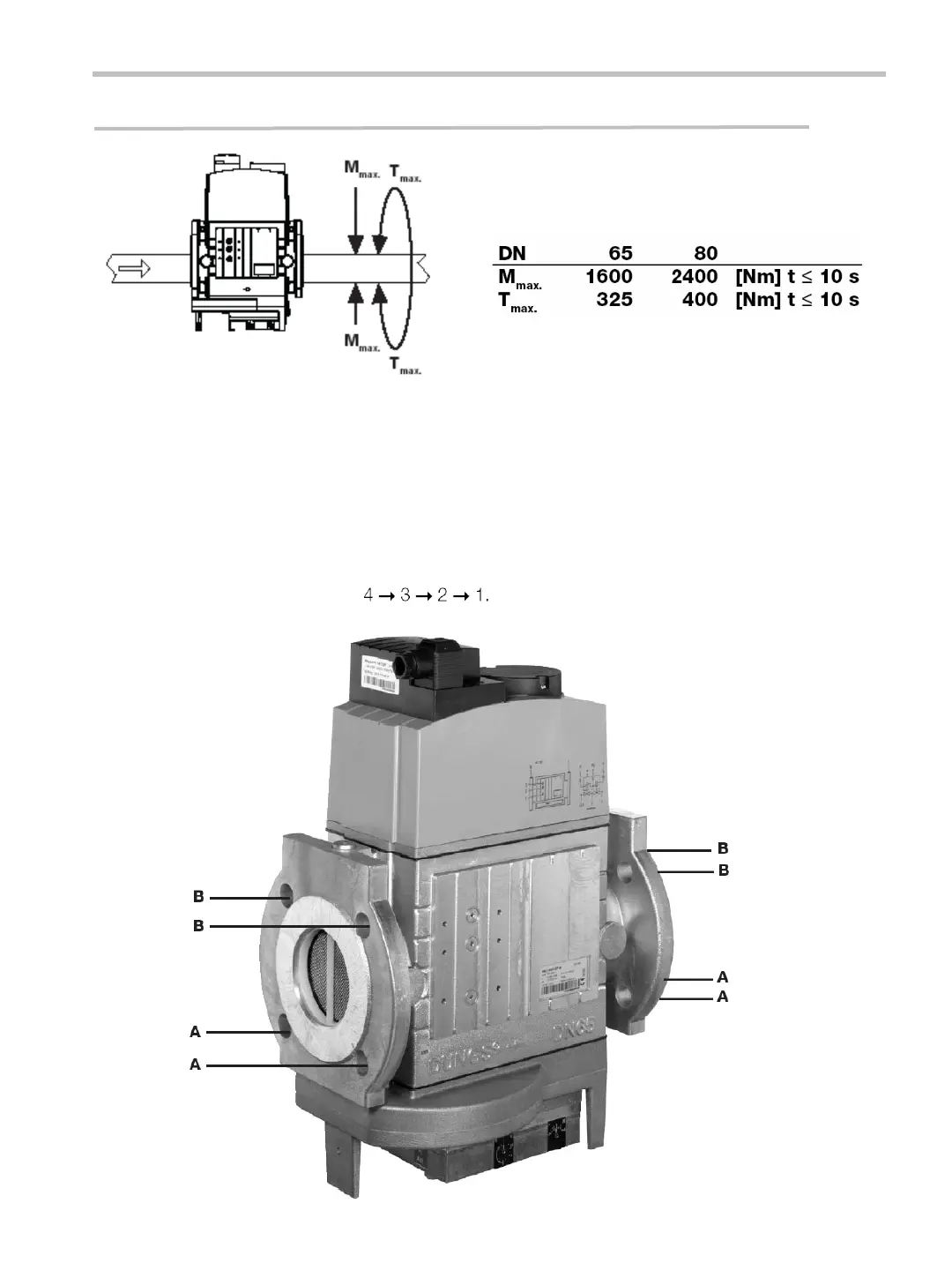

Do not use unit as a lever.
MOUNTING
1. Insert setscrews A.
2. Insert seals.
3. Insert setscres B.
4. Tighten screws A + B.
Ensure correct sealing of the seal!
5. Option externer impuls:
Attach pulse lines PBr, PL, PF.
6. After installation,Pprform leakage and functional test.
7. Disassembly in reverse order.
