MAIN PARTS
8
User’s Manual
Certificate of Warranty
Authorized Dealers & Services Booklet
M12 Bolts (4 Units)
Washers (4 Units)
PACKAGE CONTENTS

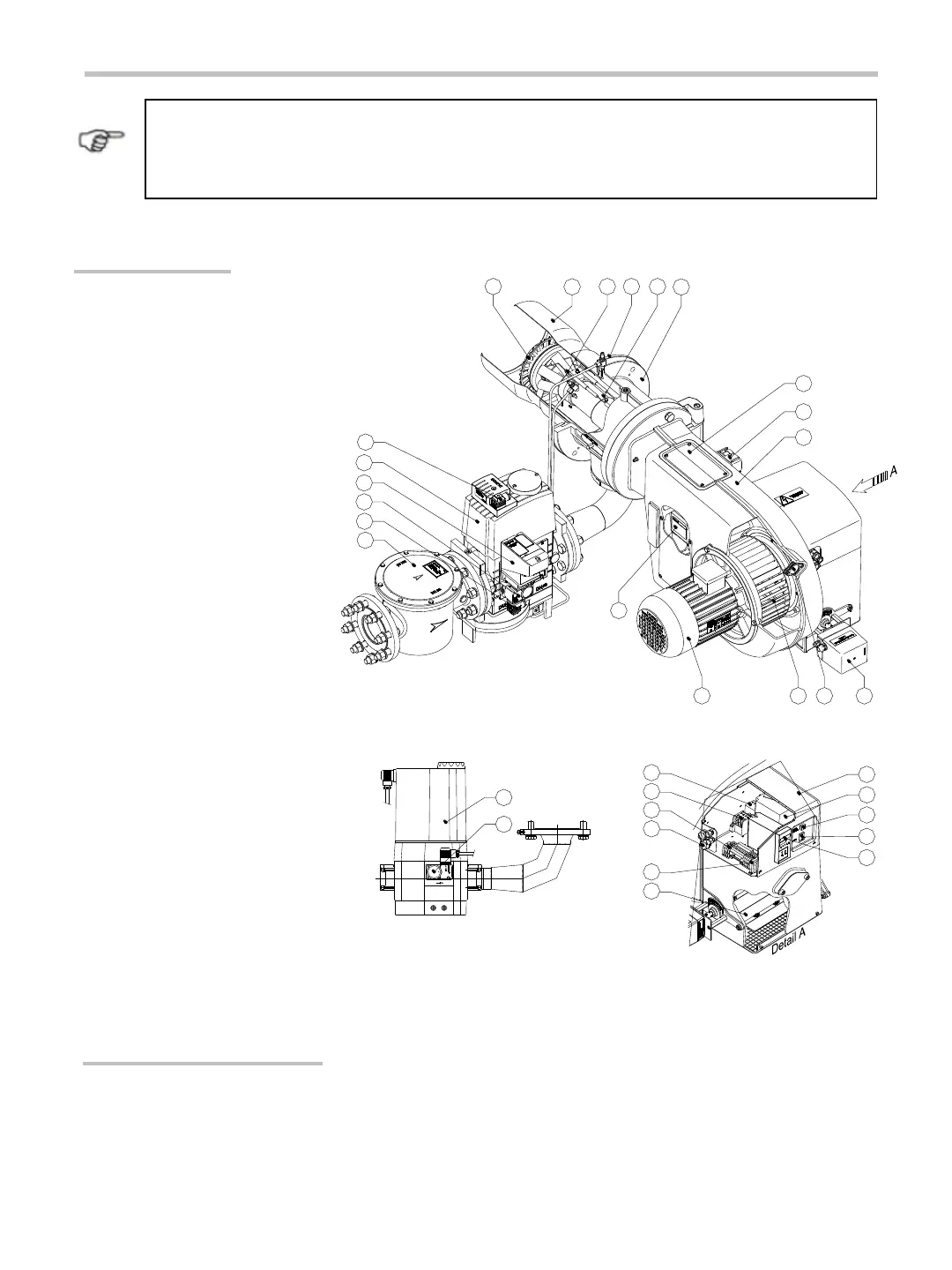

1. Main Body
2. Top Cover
3. Connection Body
4. Boiler Connection Gasket
5. Burner Motor
6. Multiblock Valve
7. Air pressure switch
8. Combustion Head
9. Gas Inlet Line
10. Turbulator
11. Ignition & Ionization Electrodes
12. Ignition Transformer
13. Fan
14. Air Damper Motor
15. Sight Glass
16.Gas Filter
17. Multibllck Valve Plug
18. Control Panel
19. Operation – Error / Reset
20. On – Off Button
21. Control Unit
22. Fuse
23. Cable Connector
24. Thermal relay
25. Terminal
26. Contactor
27. Air Damper
28. RWF40 Universal Controller
29. Gas Pressure Switch
30. Valve Proving System
31. Pressure Switch Plug
28
18
21
19
20
26
25
23
22
24
27
30
29
31
12
5 13 14
10
8
11 4 9
3
1
16
7
17
6
2
15
ALG 200/M, ALG 120/M GAS LINE
MBC Series
6
29
MBC Serisi
IP 54
Min. gas pressure values are given for burner maximum capacity. İn case of operating the
burner under the maximum capacity, the minimum required gas pressure values are lower
then the declared value and can be determined by using the "gas line pressure loss graph".
To Next Page
