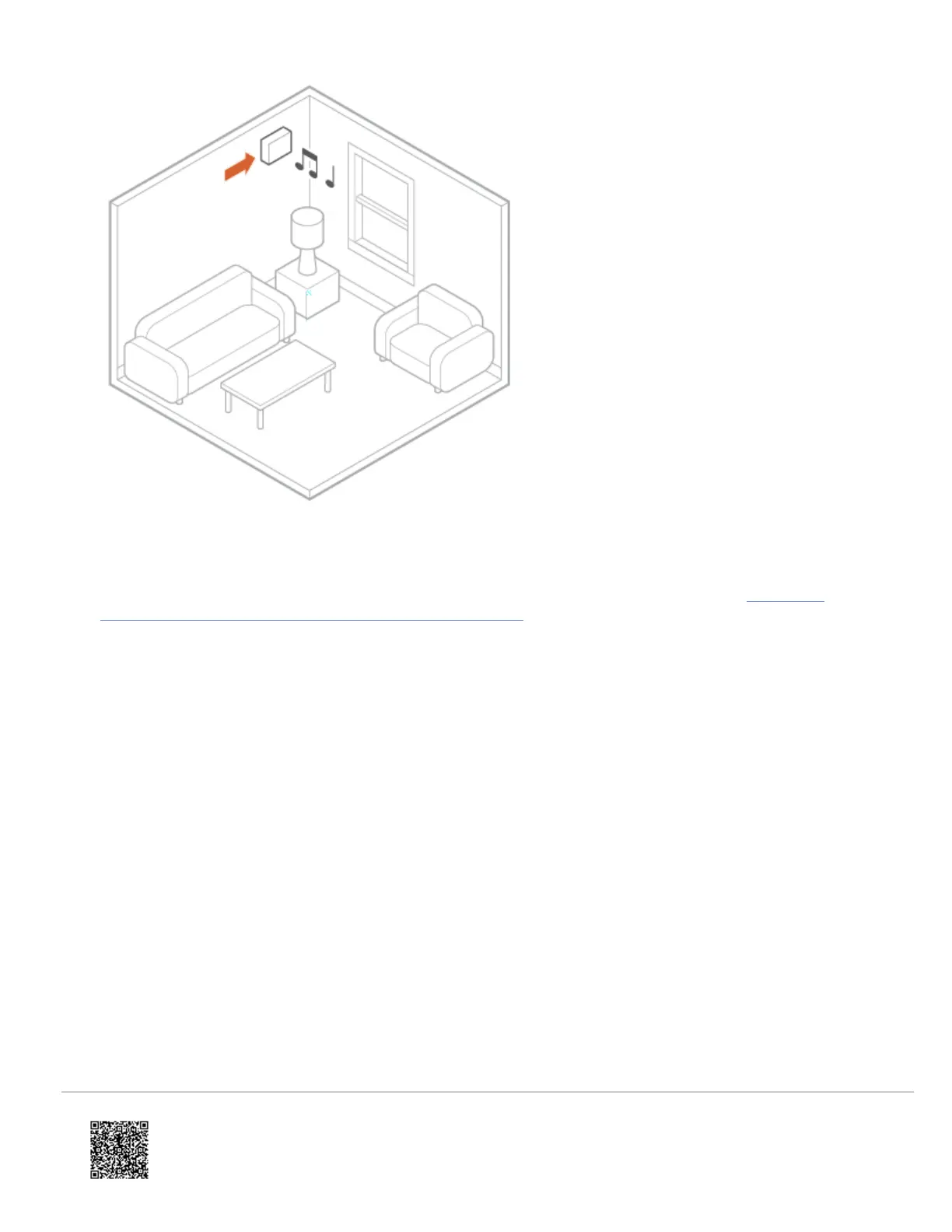

2. Note the existing wire connections (e.g., the wires may be connected to the Front or Rear doorbell terminal); you
will want to connect to the same doorbell terminal in the next step. Loosen the screws on the chime associated
with the transformer and doorbell. Set the wires aside. For wire gauge recommendations, see What is the
recommended wire gauge/AWG for a video doorbell camera?.
3. Take the power module and hook the curved white wires onto the screw terminals (it does not matter which white
wire goes to the transformer terminal and which goes to the doorbell terminal). Tighten the screws.
4. Using a crimp tool and the wire connectors provided, connect the wires that were set aside to the straight gray
wires of the power module.
5. Affix the power module to the side of the chime using the included adhesive. Replace the chime cover.
https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_Video_Doorbell_(ADC-VDB7…
Updated: Wed, 25 Oct 2023 20:50:59 GMT
