10 Connecting and Mounting the Antenna

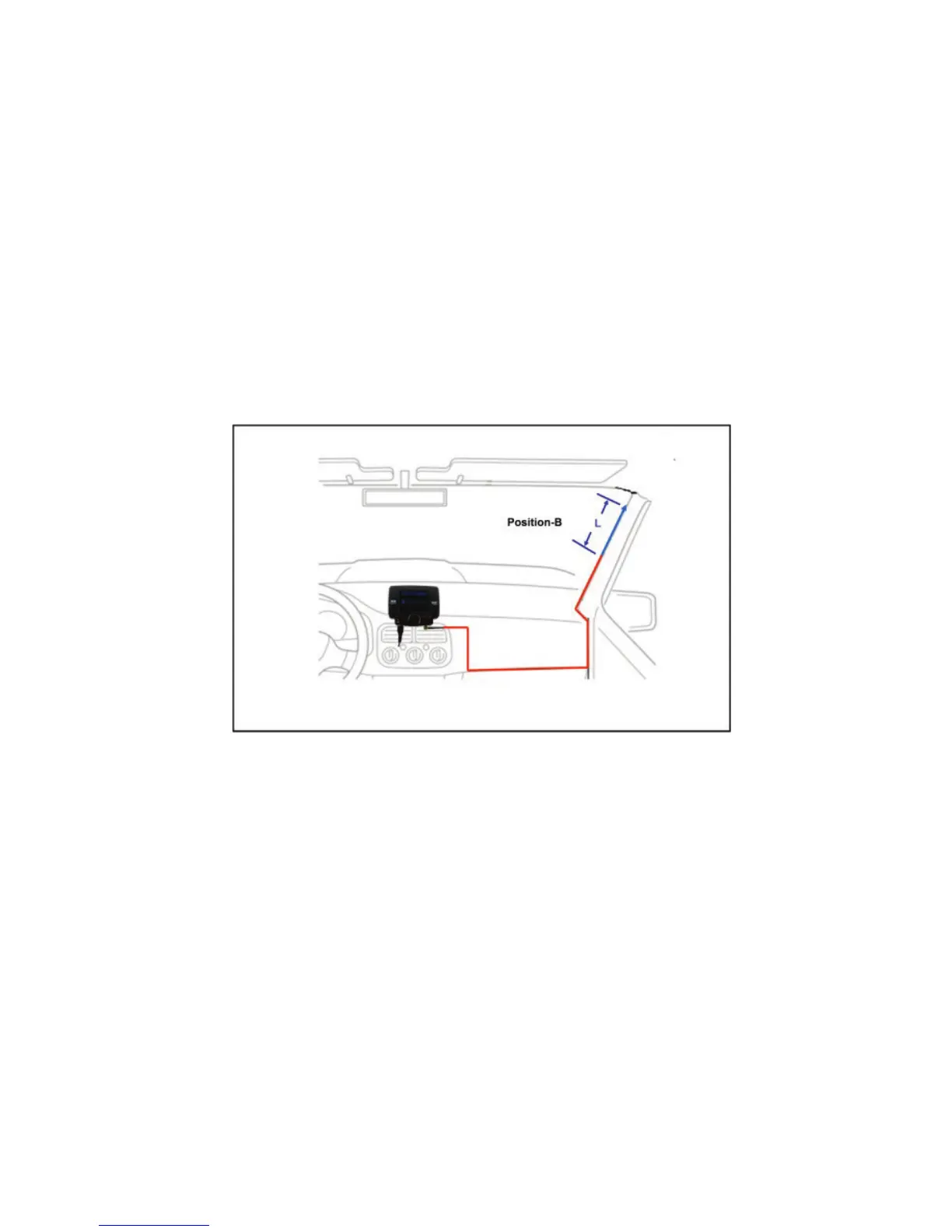

To get the best reception please mount the DAB+ window
mount antenna as shown in Position B in the diagram
below.
To mount the antenna please put the black box of the
antenna in position next to the metal frame of the car. The
black L-shaped copper foil should be glued onto the metal
frame. The transparent L-shaped part of the antenna is then
glued parallel to the edge of the windscreen.
Remark: Do not attach the DAB antenna above heater
wires, in a location which would obstruct the view of the
driver or in a location that would receive interference from
metal. For your safety, do not run cables so that they
interfere with operation of the vehicle, or through a location
that would interfere with the function of the airbags.
