ENG-13
DIGITAL DOOR ENTRY SYSTEMS

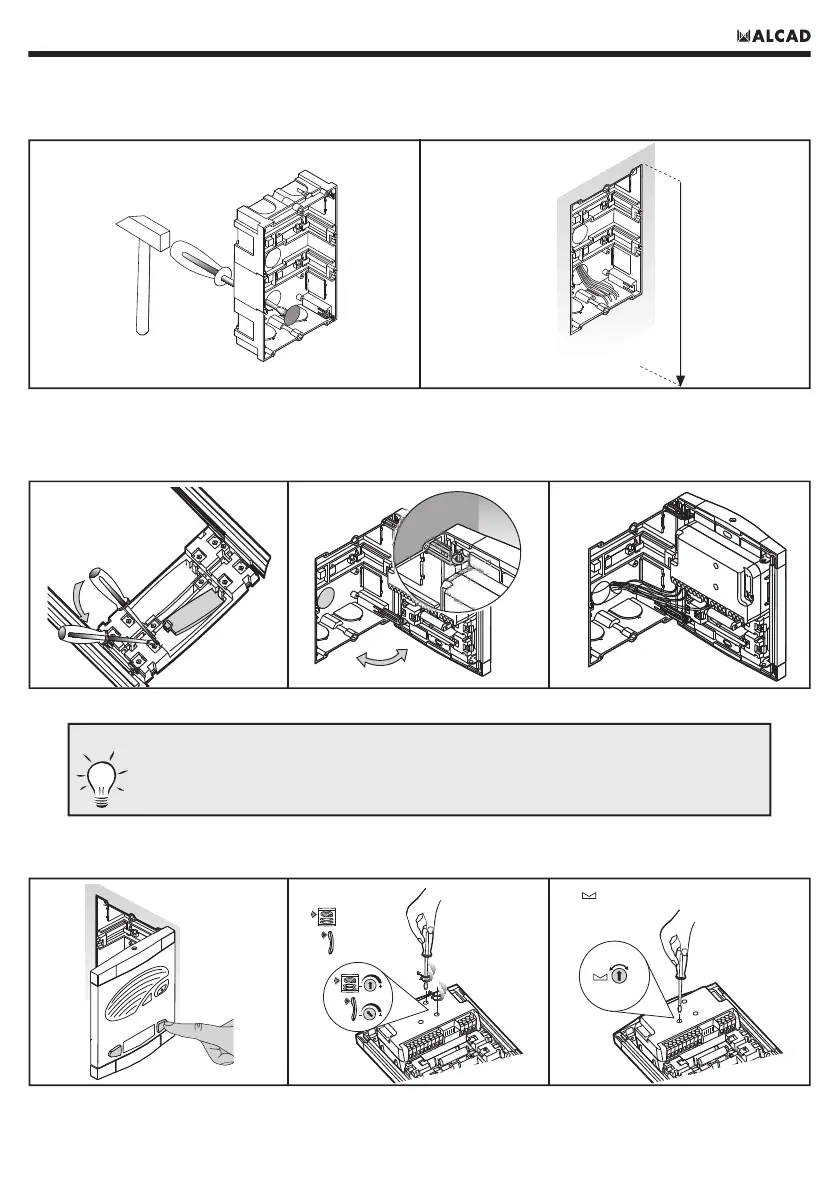

FLUSH MOUNTED BOX
Break off the perforated holes that you need to pass the cables through, and place the fl ush-mounted box in position
so that the top is 1.7 m high.
1,7 m
12
ENTRANCE PANEL
Insert the pushbutton identifi cation cards; place the rings of the entrance panel over the extracted fi xing pins of the
fl ush mounted box and make the electrical connections.
Make a test call and adjust the entrance panel and telephones volume level.
En placa
En teléfonos
Volumen
Regulador acoplamiento acústico
1
4
2
5
3
6
You can use either the preprinted cards which are provided or print your own using the
template available from the Technical Support section of the Alcad web site: www.alcad.net.
PUSHBUTTON IDENTIFICATION CARDS:
