Alcatel-Lucent 8088 - Description of the Connectors

8AL90333ENAAed01 7 /53

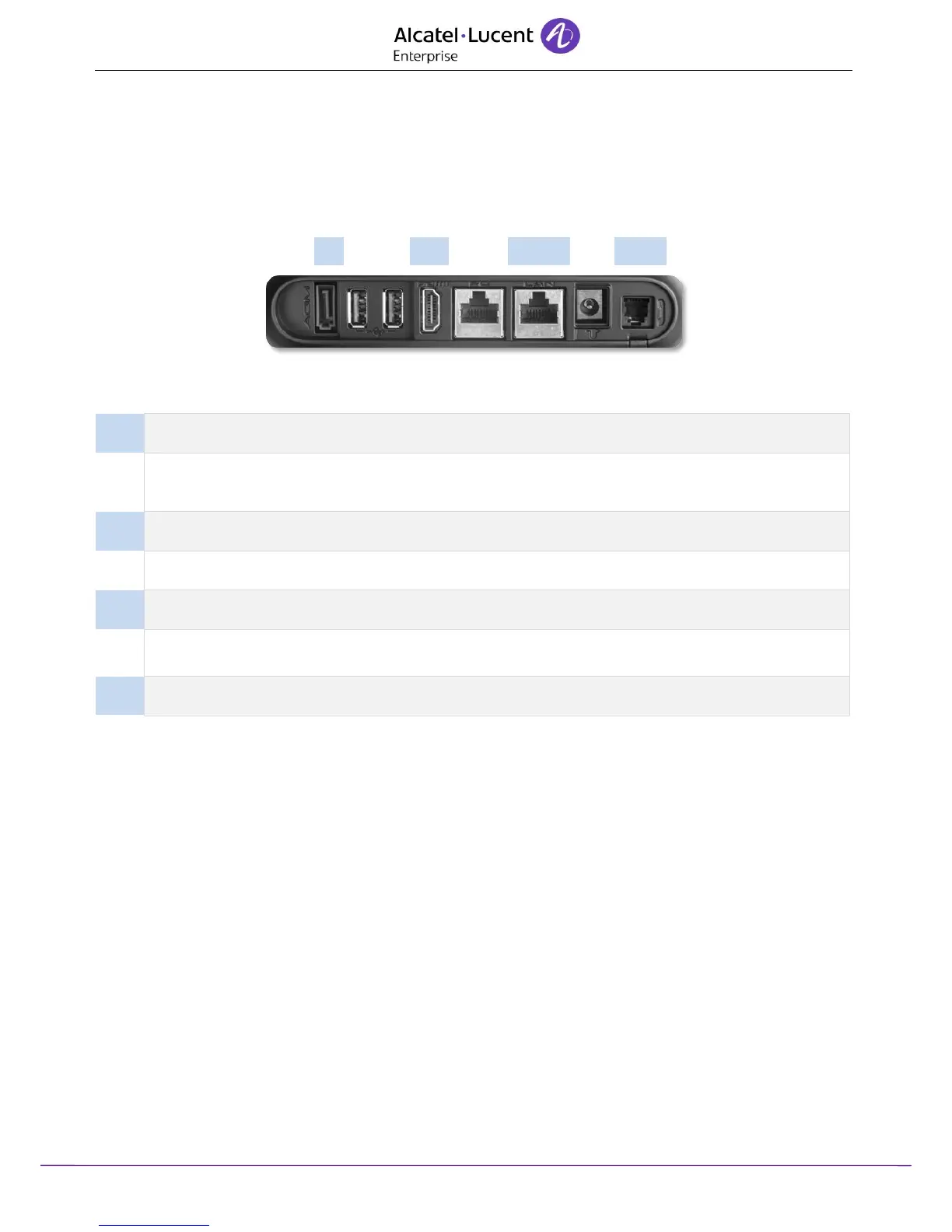

1.2 Description of the connectors
Various connections to allow phone extensions.
1
2
3
4
5
6
7
1
Add-on module connector (SATA type).
2
Two Universal Serial Bus (USB) ports (1.1/2.0) to connect an external camera, audio equipment,
a low smartphone charger or USB stick.
3
HDMI® 1.4 output for screen replication and for dedicated HD video display.
4
10/100/1000 Mbps Ethernet connectors to a PC (RJ45).
5
10/100/1000 Mbps Ethernet connectors to the enterprise network (LAN - RJ45).
6
DC power jack for an external power adaptor.
7
Wired handset connector (RJ9).
