Figure 2.1: NDDI2–2 (LS-GS) board with jumpers
2.3 Assembling NDDI2–2 board
Before assembling the NDDI2-2 board, you need to remove the QATI-2 daughter board.

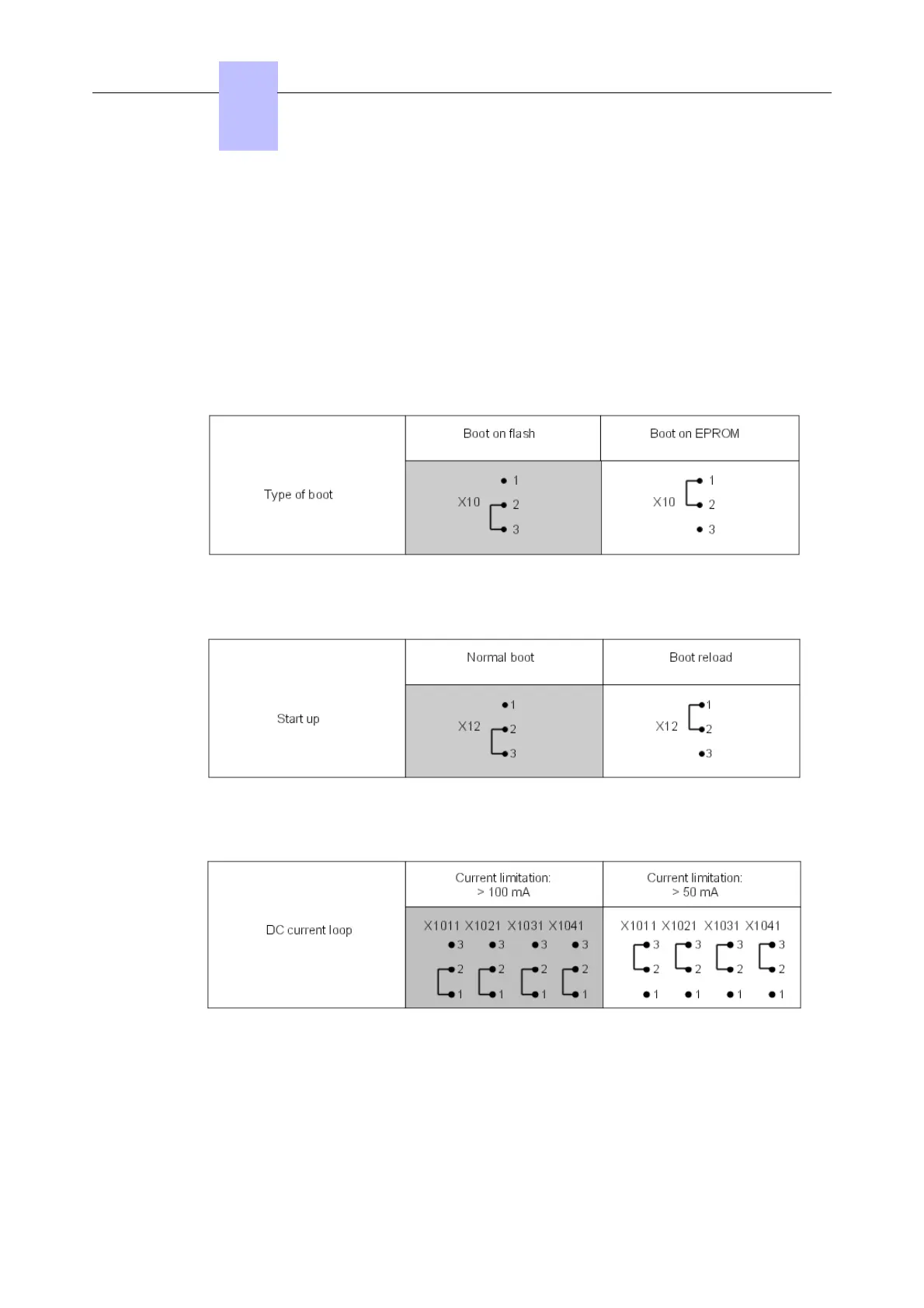

The following figures show how the NDDI2-2 board is assembled and what the different jumper
positions are on the board.
___change-begin___
___change-end___
___change-begin___
___change-end___
___change-begin___
___change-end___
Note 1:
When the DC current loop jumper is removed, the current is limited to 28 mA.
