The X904 assembly is not equipped with jumpers.
2.4 Assembling QATI–2 daughter board
After assembling the NDDI2-2 board, you can assemble the QATI-2 daughter board.
The following figure gives an overview of the QATI-2 daughter board and its jumpers.
___change-begin___
___change-end___

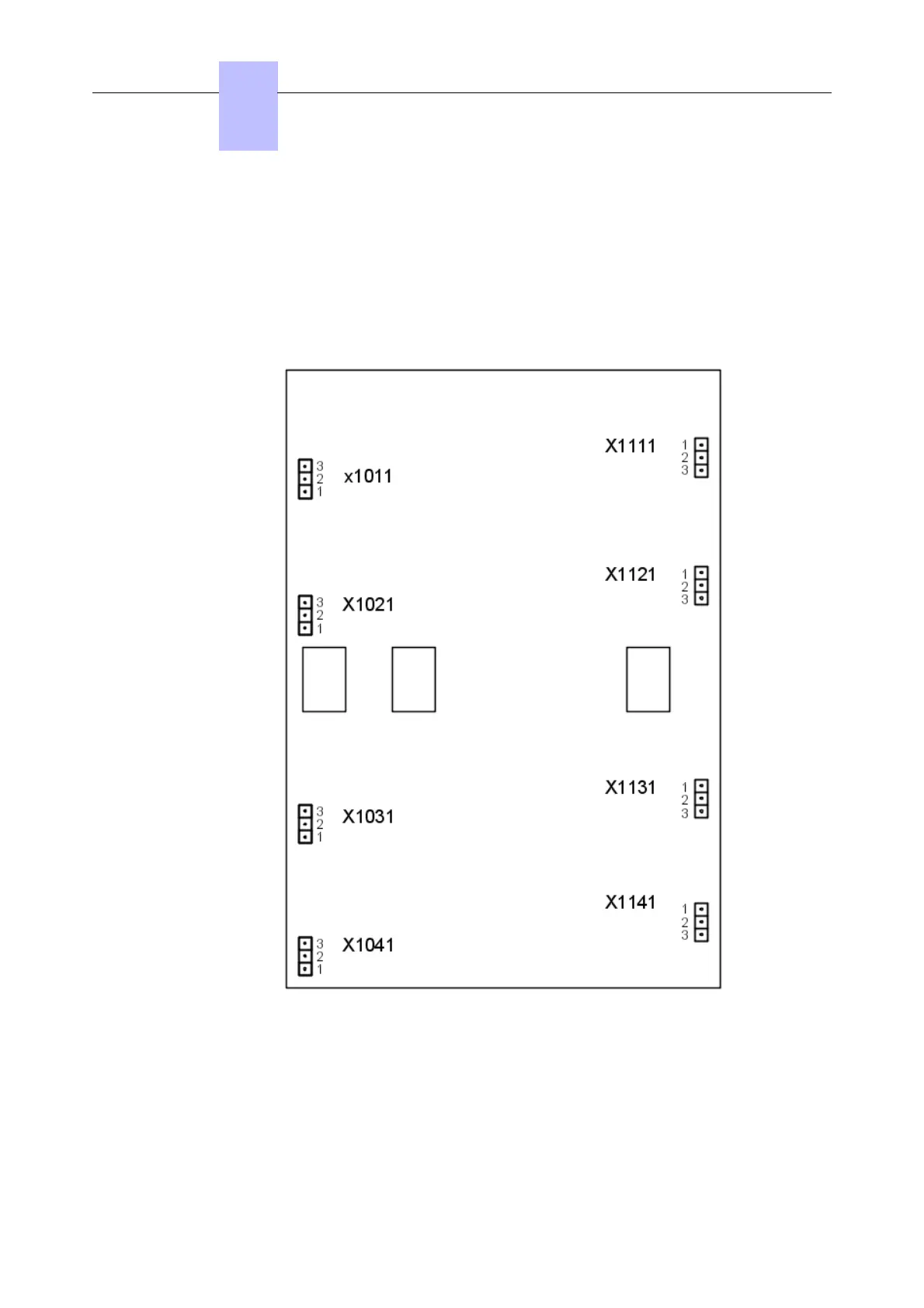

Figure 2.8: QATI-2 board with jumpers
The following figures show how the QATI-2 daughter board is assembled and what the
different jumper positions are on the board.
