Alcatel-Lucent OmniPCX NDDI2-2

___change-end___
Note 1:
When the DC current loop jumper is removed, the current is limited to 28 mA.
___change-begin___
___change-end___
Caution:
Before positioning the input/output impedance jumpers, you are advised to contact
Alcatel-Lucent technical support because the positioning of these jumpers depends on the
country, specially countries with complex impedances.
Note 2:
When the DC current loop jumper is removed, the current is limited to 28 mA.
For more information on the position of the jumpers on the boards and equipment number, see
Jumpers on NDDI2–2 and QATI-2 boards .
2.5 Jumpers on NDDI2–2 and QATI-2 boards

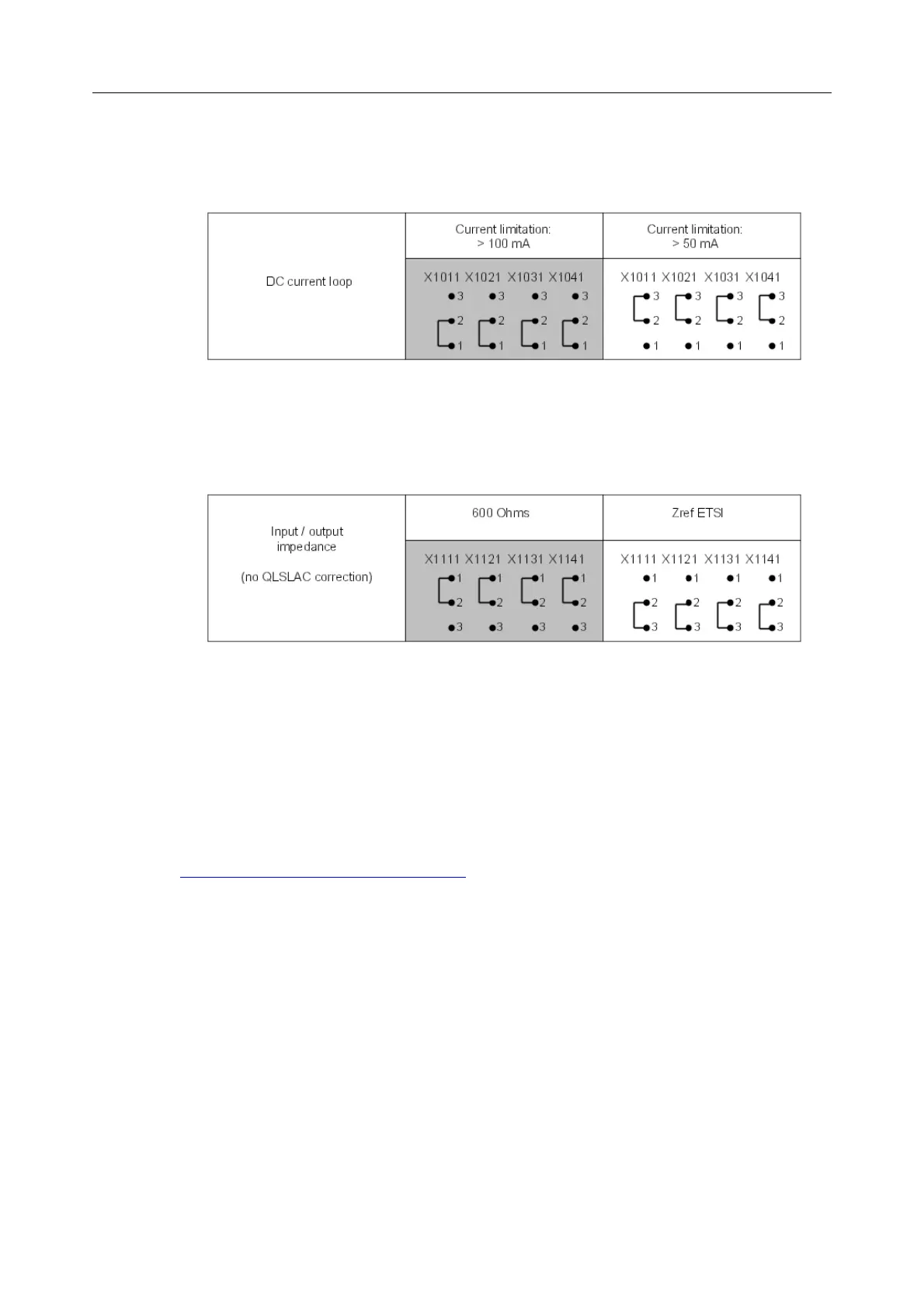

The following table gives the positioning of the jumpers on the NDDI2-2 (mother board) and
QATI-2 (daugther board) boards.
table 2.1: Jumpers on NDDI2–2 and QATI-2 boards
#$!%$! *+',-!$)'*
$     ()  !   #$!%$! *+',-!$)'*
2-5
