5.1 Reference
The CLIPIA board reference is 3BA 23173 AA.
5.2 Board assembly

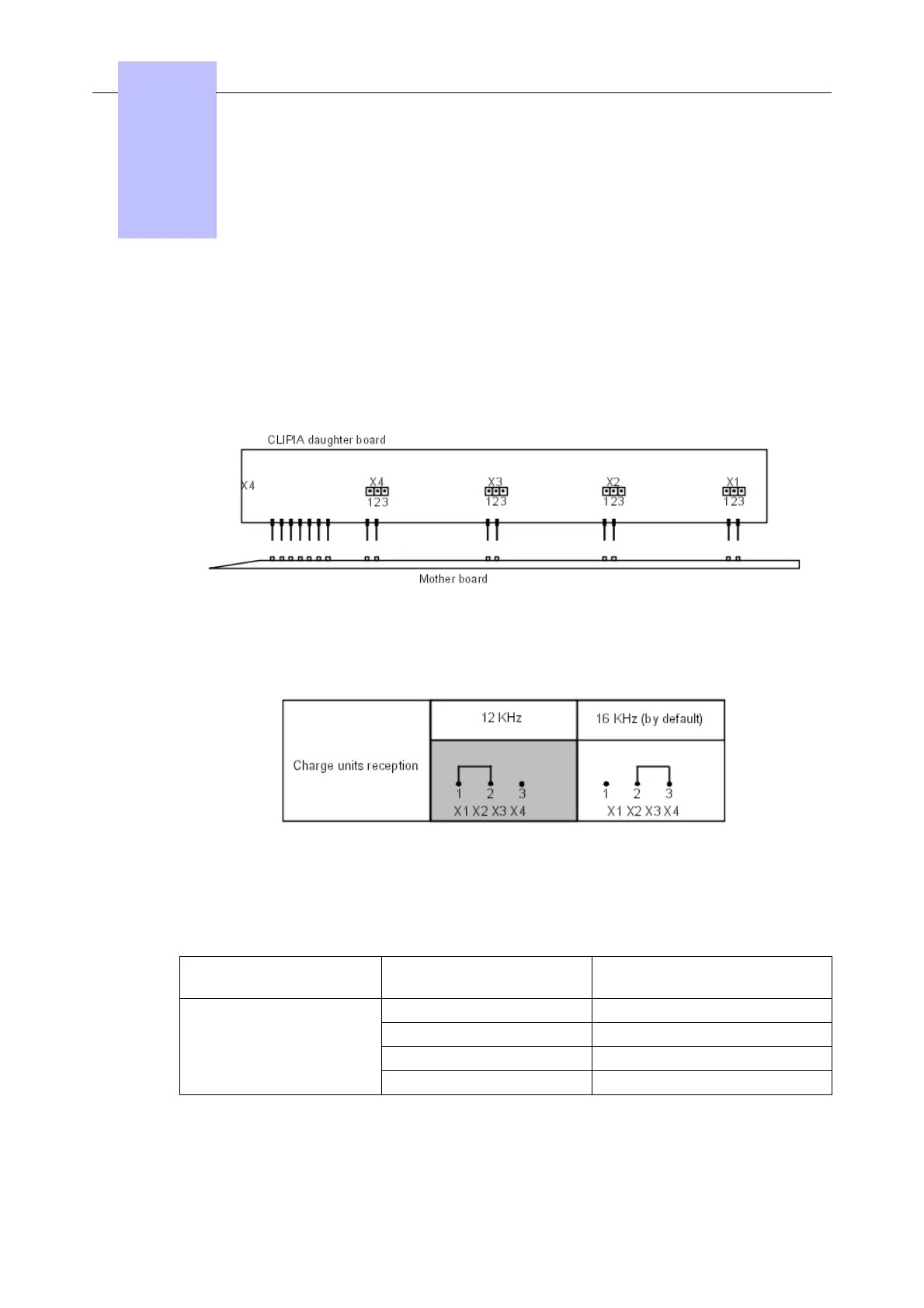

The following figures show how the CLIPIA board is assembled on the NDDI2-2 board.
___change-begin___
___change-end___
Figure 5.1: CLIPIA board on NDDI2–2 board
___change-begin___
___change-end___
Figure 5.2: Jumpers on CLIPIA board
The following table gives the position of the jumpers on the CLIPIA daughter boards.
table 5.1: Jumpers on CLIPIA board
Daugther board Equipment number
(Interface)
Jumper
CLIPIA 1 Equipement 1 X 1
Equipement 2 X 2
Equipement 3 X 3
Equipement 4 X 4
() ! ./0 $-,1) !$! .*+',-!$)'*
5-1
