Alde 2772 User Manual

5
GB

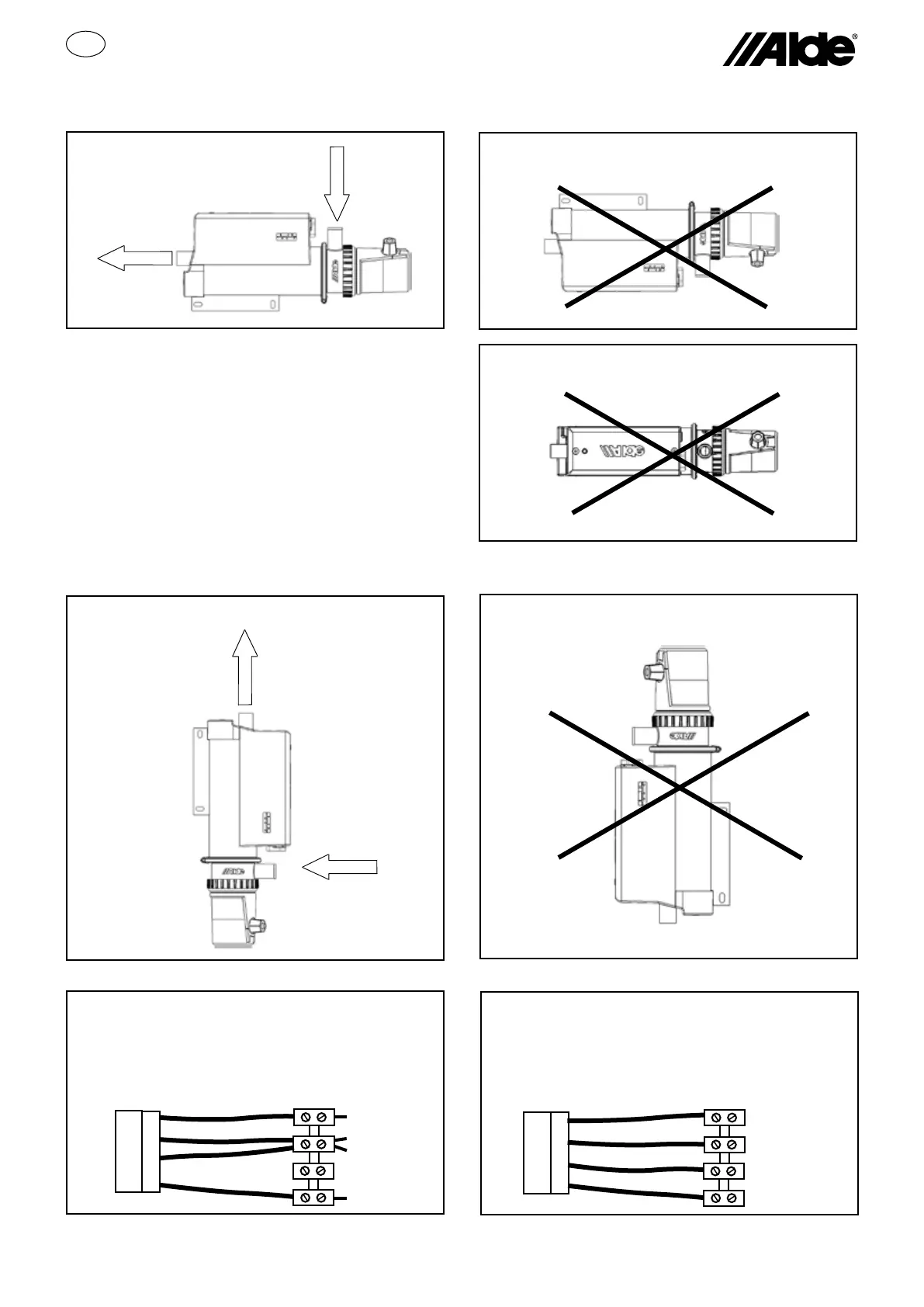

PLACING THE ELECTRICAL HEATING CARTRIDGE HORIZONTALLY
CORRECT POSITION
WRONG POSITION
Instruction for cable 2772 130 when using electri-
cal heating cartridge 2772 on the Primus heater
Blue
Grey
Black
Red
Red - 2000 W
Black - Minus
Blue - Circulation
pump
Grey - 1000 W
Connecting plinth
Grey
Black
Red
Red-2000 W
Black-Minus
Blue-Circula-
tion pump
Screw plinth
Grey-1000 W
Electrical heating
cartridge
Primus panel
WRONG POSITION
WRONG POSITION
PLACING THE ELECTRICAL HEATING CARTRIDGE VERTICALLY
CORRECT POSITION
Blue
Electrical heating
cartridge
Comfort panel
Connecting plinth
Screw plinth
Instruction for cable 2772 130 when using electri-
cal heating cartridge 2772 on the Comfort heater
