19
GB

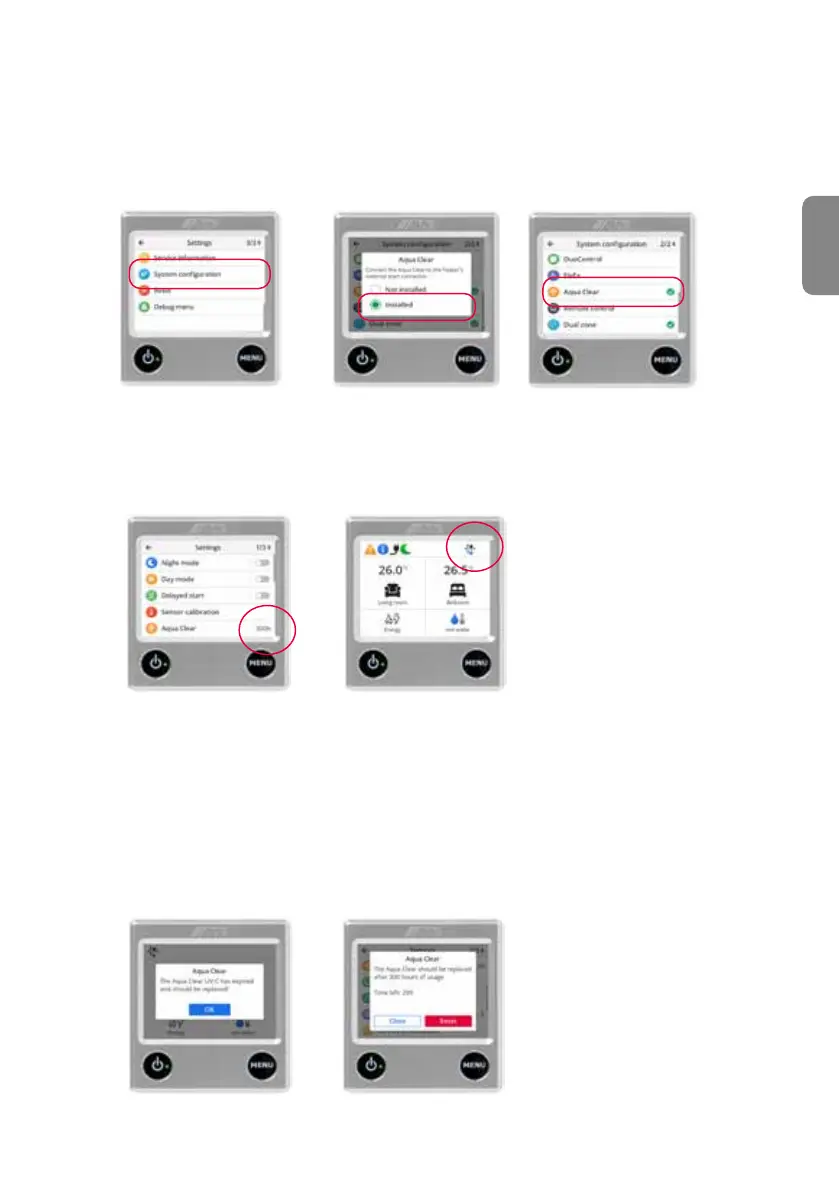

Connection of Alde AquaClear to the control panel for Alde Compact 3030/3030 Plus:
1. Select "MENU" from the panel to get to Settings.
2. Select "System Conguration" by browsing Settings with the page view in the upper right, g. 5.
3. Press AquaClear and select 'Installed' in the check box, g. 6. A green check mark will now show
that AquaClear is selected, g. 7. Alde AquaClear UV-C is now installed in the control panel.
4. Press "MENU" to get back to Settings. Here, a counter will now be displayed for active time that
remains before the UV unit needs to be replaced, see Fig. 8.
5. During active water ow from the fresh water pump, the symbol for Alde AquaClear UV-C will appear
on the upper part of the control panel to indicate that Alde AquaClear UV-C is working correctly.
(Fig. 9). If the symbol is not visible during active water ow, something may be wrong, contact
your dealer or service partner.
A calculator for hours counts down the time when the UV lamp has been active. Once the UV lamp
has served its time, a warning will appear on the screen (Fig. 10). Then replace the Alde AquaClear
and reset the counter by entering AquaClear UV-C in Settings and pressing "Reset" (g. 11).
g. 5
g. 6
g. 7
g. 8
g. 9
g. 10 g. 11
