Wiring diagram

1. Connect the white cable from the AquaClear to the 12 V positive cable on the water pump.

Note! If the installation has a water pump as shown in g. 15, make sure there is a connection

between the pressure switch and the pump motor. Cut the cable in a suitable place and place out a

terminal block, then position the pump cables and the white cable from the AquaClear in the terminal

block and tighten the screws again.

2. Connect the brown cable from the AquaClear to the 12 V negative cable on the water pump. Open

the terminal block, position the brown cable from the AquaClear and tighten the screws again.

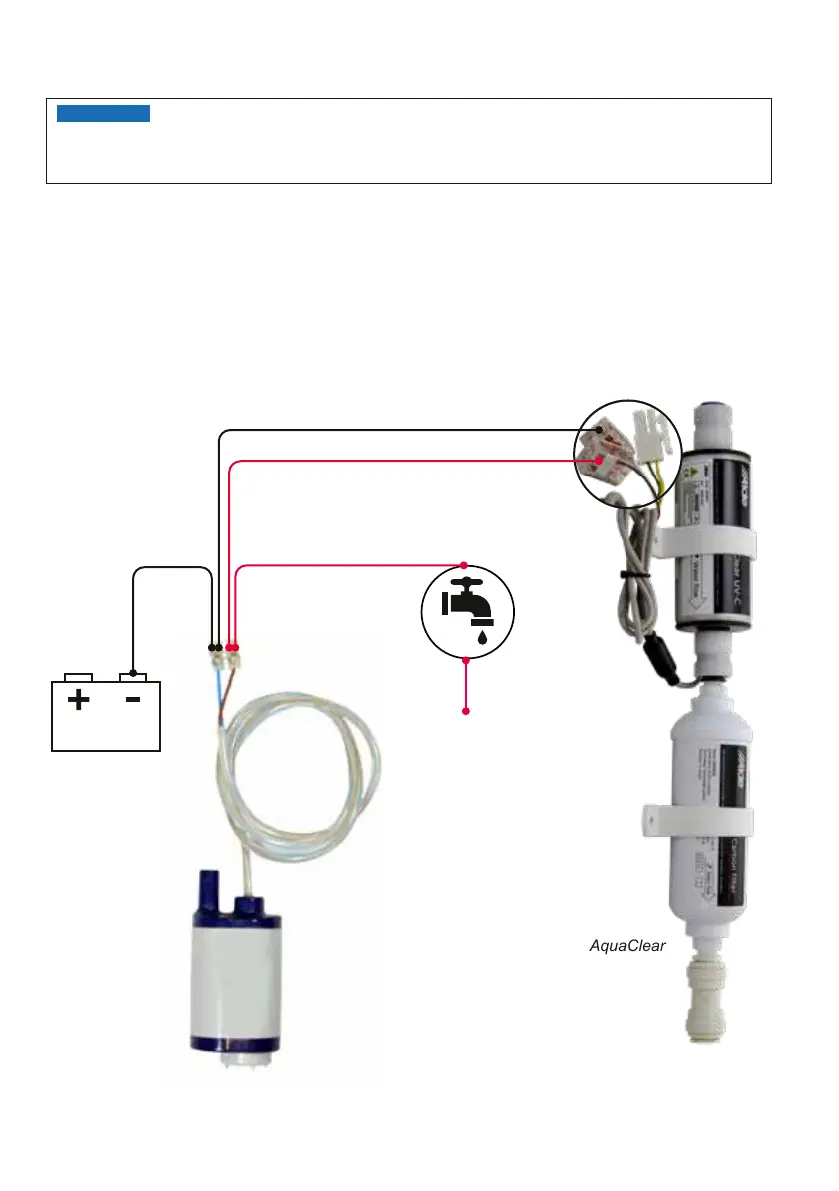

Connect the WHITE cable (+) on the ALDE AquaClear to 12 V positive and the BROWN cable (-) to

12 V negative.

NOTICE

g. 14

12 V -

12 V +

Alde AquaClear

Water-

pump

12 V +
