Alde Compact 3010 Quick Guide

Alde Compact 3010.
An ingenious boiler
Truly ingenious construction integrates both a central heating
system and hot water system in this space-saving boiler.

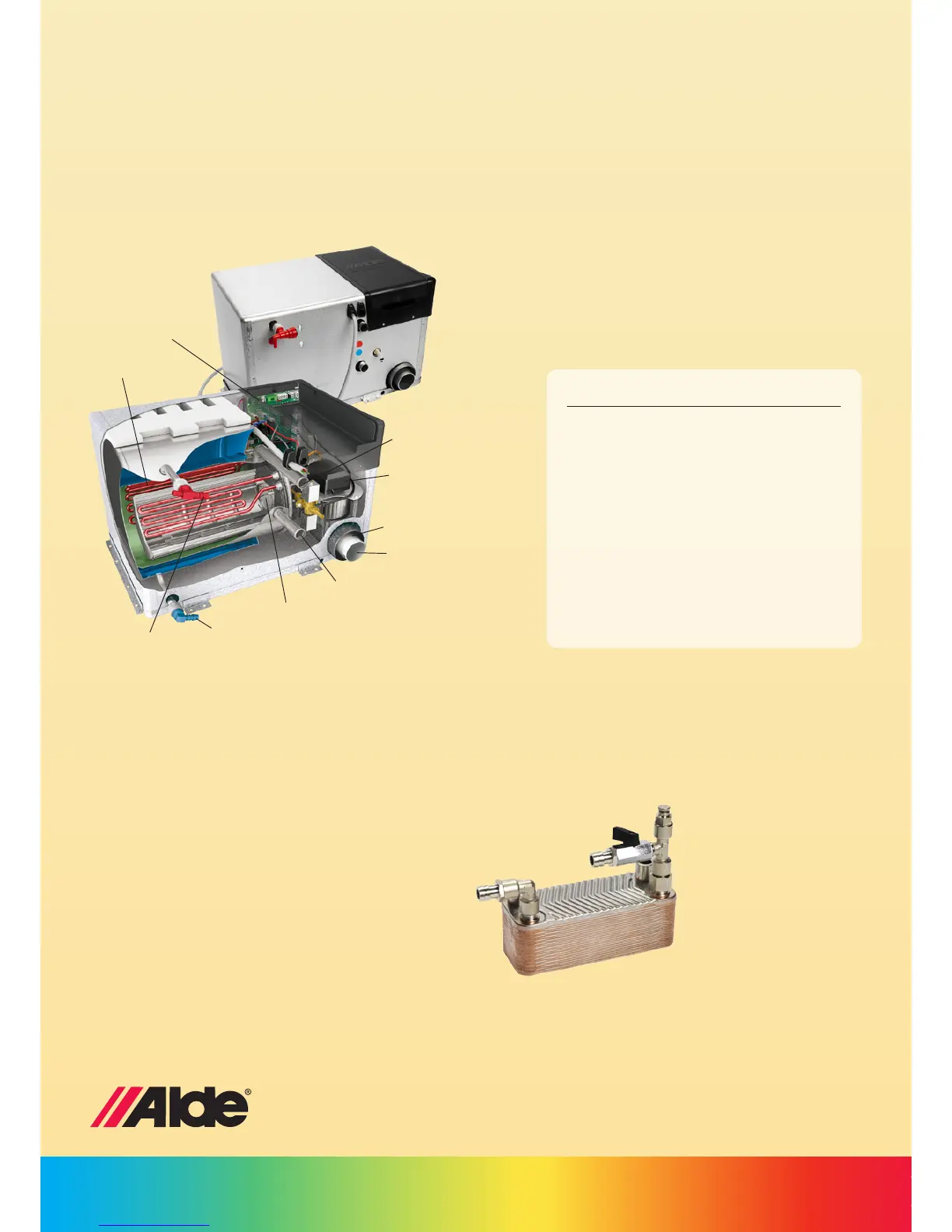

Compact 3010 consists of three concentric cylinders. The LPG
burner is in the centre. Outside of this is the cylinder for the heat-
ing fluid for the central heating, in which the electric elements are
fitted, and outside of this is the hot water cylinder. The two outer
cylinders are made from stainless steel and the burner chamber
is aluminium. The burner chamber is divided into two halves. The
burner is located in the upper half, which forms the burner com-
partment. The exhaust gasses are emitted from the lower half. To
one end is the burner housing, which consists of the burner fan,
burners, solenoid valve, air intake and exhaust connectors.
Electric element 2 kW
Electronics
Hot fluid out
to convectors
Hot fluid return
Air intake
Exhaust
LPG burner
Cold water IN
Hot water OUT
Burner fan
Alde heat exchangers.
Efficient, economical and green
Alde heat exchangers combined with a hydronic central heat-
ing system provide both financial and environmental benefits.
Heat from the engine's cooling system is exploited by the heat
exchanger, for both heating of the motorhome and hot water to
the galley and shower.
The heat can also be run in the opposite direction using a circu-
lation pump on the engine side. So acting as an engine heater.
Here the central heating also heat up the engine's cooling system.
A good choice in winter weather when cold-starting the engine.
Alde International Systems AB
Postal address: Box 11066, SE-291 11 Färlöv, Sweden
Office/delivery address: Wrangels Allé 90, SE-291 75 Färlöv, Sweden
Telephone: Nat. 044 - 712 70 Int. +46 44 712 70
Fax: Nat. 044 - 718 48 Int. +46 44 718 48
URL: www.alde.se E-mail: info@alde.se
We reserve the rights to printing errors. 2011.08 2500 ex
Technical data
Height: 310 mm
Width: 340 mm
Length: 490 mm
Weight: 14 kg (without fluid)
Gas: Propane Butane
Power Step 1: 3.3 kW 3.8 kW
Gas consumption: 245 g/h 275 g/h
Power Step 2: 5.5 kW 6.4 kW
Gas consumption: 405 g/h 460 g/h
Gas pressure: 30 mbar
Fluid volume glycol: 3.5 litres
Fluid volume freshwater: 8.4 litres
System temperature: max 85 °C
Power electric element 230 V: 1, 2 or 3 kW
Power consumption 12 V DC: 1 amp (max)

Alde Compact 3010 Specifications

General

Brand	Alde
Model	Compact 3010
Category	Boiler
Language	English
