Alderlea T5 - Replacement Parts

080515-24 ALT5
©PACIFIC ENERGY FIREPLACE
PRODUCTS LTD.
18

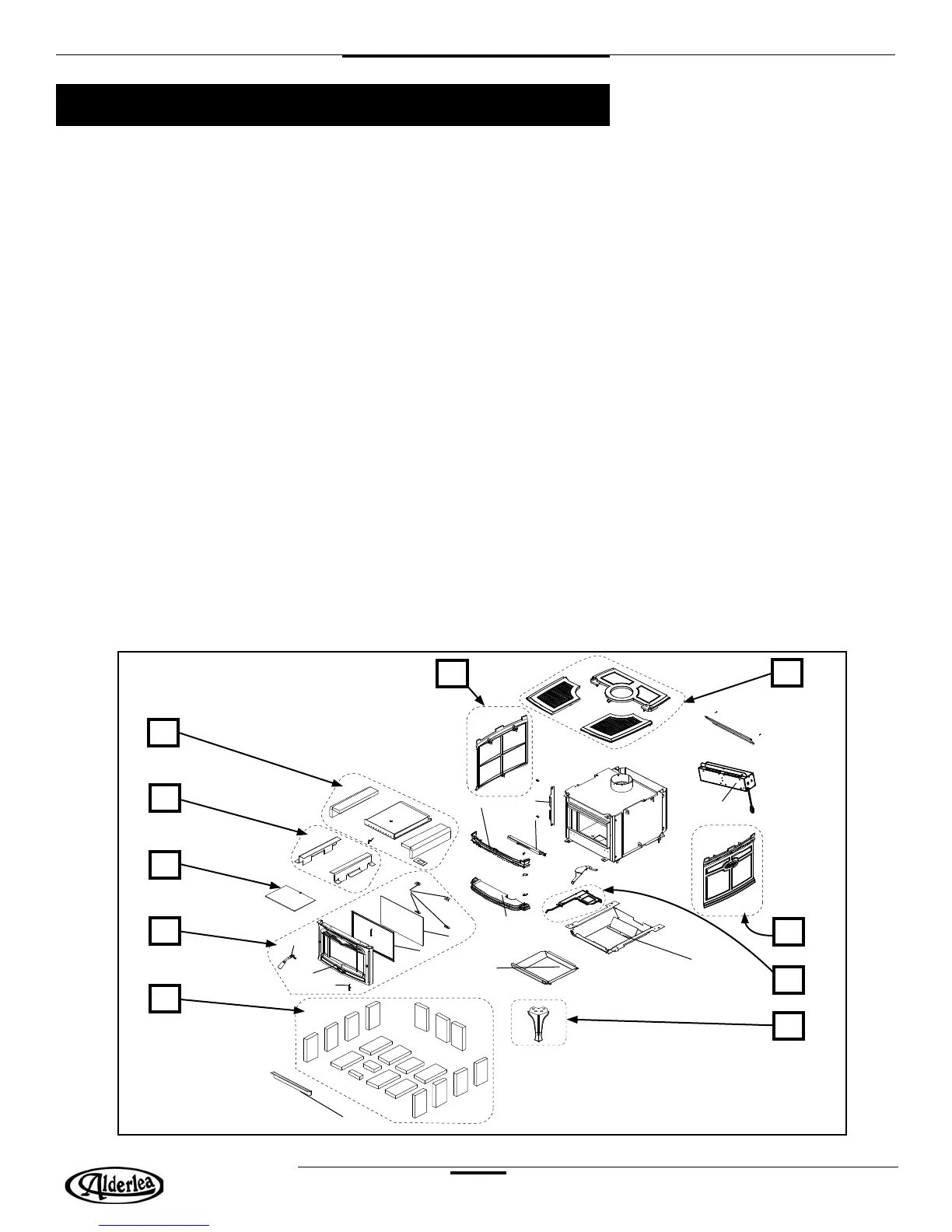

Replacement Parts
#1
#2
#3
#4
#5
#6
#7
#8
#6
#9
4b
4a
4c
4d
4f
4e
10
11
12
13
14
16
15
17
#1 BAFFLE KIT ........................................SSER.DBAKIT
#2 BRICK RAILS SET ............................SSER.RAILSET
#3 FLAME SHIELD ........................................SSER.4115
#4 DOOR ASSY ..............................R - ALT5.4700RMBK
...BLACK PAINT .........................L - ALT5.4700LMBK
...BLACK ENAMEL (LHS ONLY) .... ALT5.P4712RBK
...MAJOLICA BROWN (LHS ONLY) ALT5.P4712RMB
CLEARVIEW DOOR ASSY ................................................
...BLACK PAINT ........................ R - ALT5.4711RMBK
...BLACK PAINT ......................... L - ALT5.4711LMBK
...BLACK ENAMEL (LHS ONLY) .... ALT5.P4711BKA
...MAJOLICA BROWN(LHS ONLY) . ALT5.P4711BNA
...ANTIQUE WHITE(LHS ONLY) ..... ALT5.P4711AWA
#4a DOOR HANDLE ................................ ALDR.50380GL
(BLACK PAINT ONLY) ......................ALDR.50380GR
#4d DOOR GASKET KIT ........................................... 4880
#4e GLASS C/W GASKET ...................................... 2080.6
#4f GLASS CLAMPS ............................................ 4720.01
#5 FIREBRICK SET ...................................BRIC.SSERA
#6 SIDE CASTING ASSY(2) .............................................
...BLACK PAINT ................................ ALT6.4805MBK
...BLACK ENAMEL ......................... ALT5.P4716BKA
...MAJOLICA BROWN ENAMEL .....ALT5.P4716MBA
...ANTIQUE WHITE ENAMEL .........ALT5.P4716AWA
#7 TOP GRILL ASSY(3) ...................................................
...BLACK PAINT ..........................ALT5.TGASSYMBK
...BLACK ENAMEL .....................ALTR.PTGASSYBK
...MAJOLICA BROWN ENAMEL ALTR.PTGASSYMB
...ANTIQUE WHITE ENAMEL .... ALTR.PTGASSYAW
#8 ASH DUMP ASSEMBLY ..........................WODC.2261
#9 LEG CASTING ASSY(4) ..............................................
...BLACK PAINT ...............................ALDR.4807MBK
...BLACK ENAMEL ......................... ALT5.P4717BKA
...MAJOLICA BROWN ENAMEL .....ALT5.P4717MBA
...ANTIQUE WHITE ENAMEL .........ALT5.P4717AWA
#10 BOOST MANIFOLD ............................................ 4105
#11 DOOR CATCH ................................................ 4722.01
#12 DOOR CROWN BLACK PAINT ........ ALT5.4702MBK
BLACK ENAMEL ............................ ALT5.P4714BKA
MAJOLICA BROWN ENAMEL ........ALT5.P4714MBA
ANTIQUE WHITE ENAMEL ............ALT5.P4714AWA
#13 ASHLIP BLACK PAINT ..................... ALT5.4701MBK
BLACK ENAMEL ............................ ALT5.P4713BKA
MAJOLICA BROWN ENAMEL ........ALT5.P4713MBA
ANTIQUE WHITE ENAMEL ............ALT5.P4713AWA
#14 LEG ADAPTER .....................................ALT5.LGADA
#15 ASH PAN ASSY. .............................................4717.52
#16 FAN (OPTIONAL) ................................. WODC.BLOW
#17 DOOR STOP (LHS) ......................... ALT5.4730LMBK
ALL OTHER PARTS NOT INCLUDED IN ABOVE KITS ARE NOT SOLD SEPARATELY
RIGHT AND LEFT ARE DETERMINED WHEN FACING THE FRONT OF THE STOVE
