Alderlea T5 - Installation - Mobile Home; Clearances - Mobile Home

CAUTION:
The structural integrity of the mobile
home  oor, wall, and ceiling/roof
must be maintained.
Warning:
Under no circumstances is this heater to be installed in a makeshift or "temporary" manner.
It may be  red only after the following conditions have been met.
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER
APPLIANCE.
• DO NOT INSTALL IN A SLEEPING ROOM.
Outside air supply must be used for Mobile Home installations (see Figure #4, Page 10.)
We recommend that our woodburning hearth products be installed and serviced by
professionals who are certi ed in the U.S. by the National Fireplace Institute
®
(NFI) as
NFI woodburning Specialists or who are certi ed in Canada by Wood Energy Technical
Training (WETT).
BOTH CHIMNEY SYSTEM AND CONNECTOR MUST BE LISTED TO:
IN CANADA
IN CANADA
- ULC S-641 LISTED CONNECTOR AND ULC-S-629 LISTED CHIMNEY, IN USA
- ULC S-641 LISTED CONNECTOR AND ULC-S-629 LISTED CHIMNEY, IN USA
- UL-103 HT LISTED CONNECTOR AND CHIMNEY
- UL-103 HT LISTED CONNECTOR AND CHIMNEY
Clearances – Mobile Home
Clearances to combustible surfaces and materials are shown below in Figures #3.
Clearances may be reduced with various heat insulating materials. Consult local  re
codes and authorities for approval.
NOTE: Longer chimney lengths and different pitch  ashings may be used. All other parts
listed must be installed (see Figure #4, Page 10). Install all components to the connector
or chimney manufacturer's installation requirements. Consult your chimney supplier for
installation advice.
18"
457mm
8"
203mm
8"
203mm
8"
203mm
16"
406mm
28"
711mm
22"
559mm

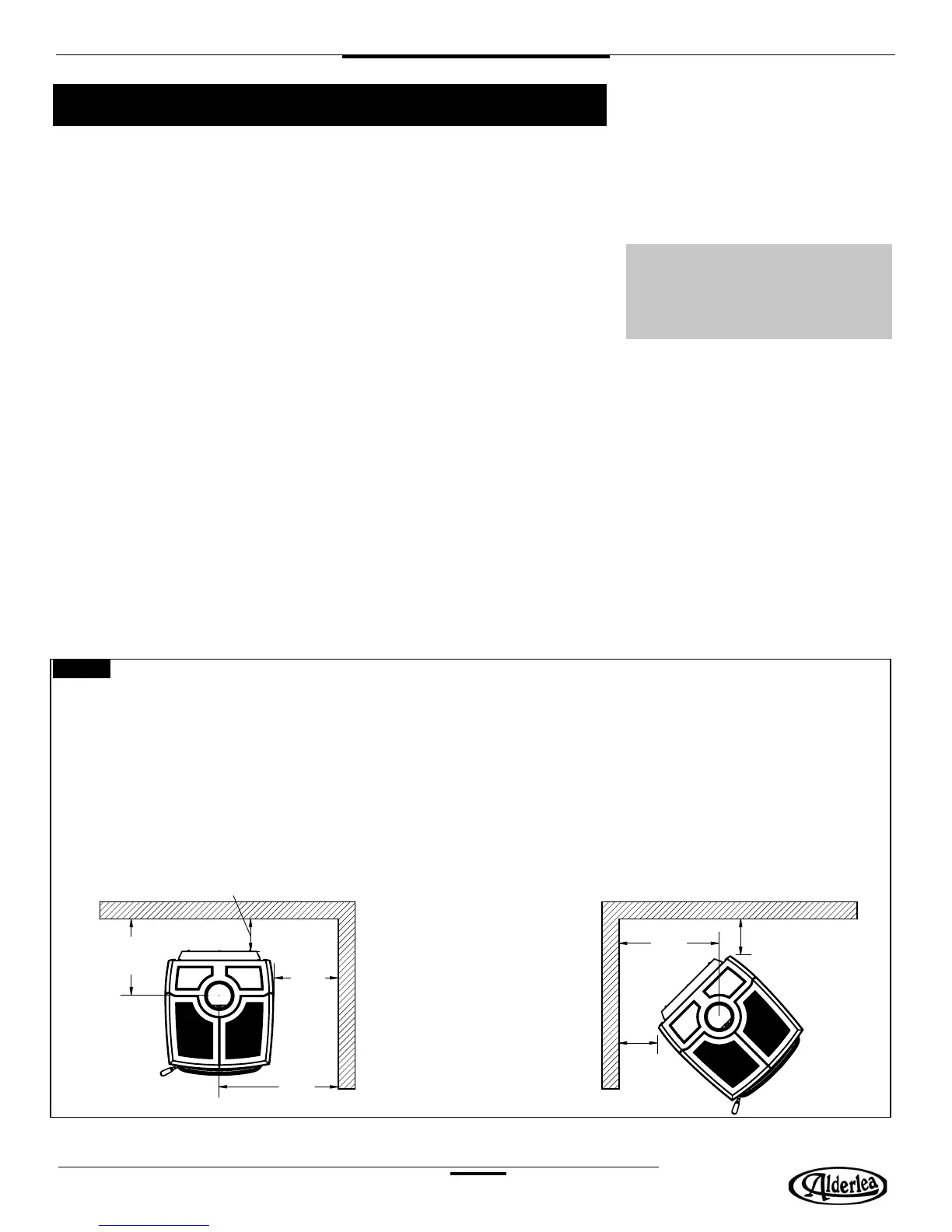

Fig #3
DOUBLE WALL CONNECTOR
Minimum Clearances to Combustibles – Mobile Home
080515-24 ALT5
©PACIFIC ENERGY FIREPLACE
PRODUCTS LTD.
9
Installation – Mobile Home
