Alderlea T6 - Installation - Residential; Clearances - Residential

22"
12"
18"
30"
25"
11"
11"
20"
16"
26"
14"
15"
5"
10"
16"
18"
28"
4"
4"
Fig #2
SINGLE WALL
CONNECTOR
DOUBLE WALL
CONNECTOR
ALCOVE: Min. Height 7 feet
Max. Depth 4 feet
Fig #2a

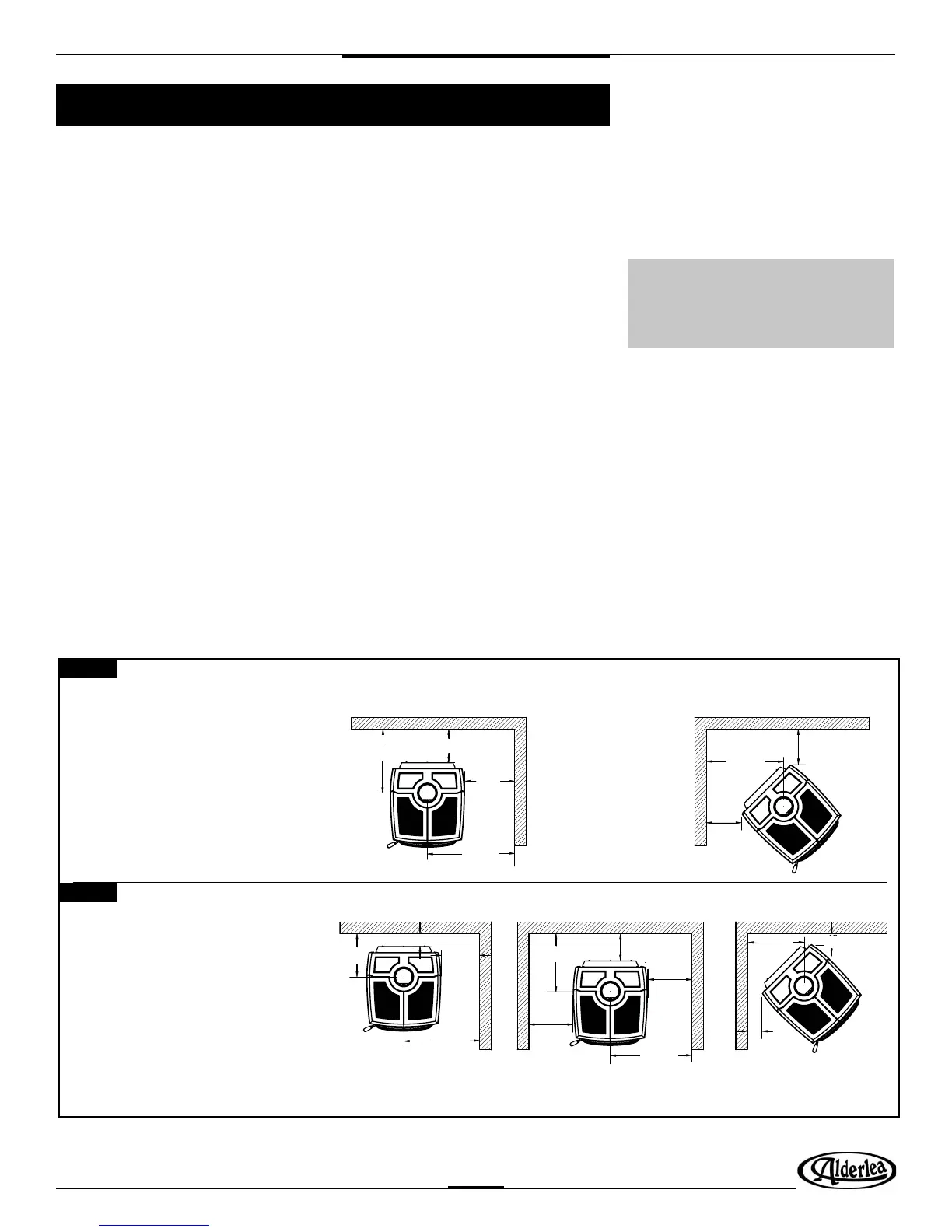

Minimum Clearances to Combustibles – Residential
7.5”
9”
14”
17.75”
28.75”
6”
30.75”
6”
20.25”
13”
16.25”
27.75”
19.25”
10”
16”
16”
18.75”
5”
5”
Do not connect this unit
to a chimney  ue serving
another appliance.
7
190313-24 AL6B
Clearances – Residential
1. This heater may be installed using a single-wall connector (smoke pipe) or listed double-
wall connector (see Mobile Home installation).
2. Clearances to combustible surfaces and materials using single-wall connector are shown
in Figure #2.
Clearances may be reduced with various heat insulating materials. Consult local, National
 re codes and authorities for approval.
3. Alternately, for close clearances, use a listed double-wall connector.
See Figure #2a.
Installation – Residential
Warning:
Under no circumstances is this heater to be installed in a makeshift or "temporary" manner.
It may be  red only after the stove is installed properly.
• DO NOT ATTEMPT TO CONNECT THIS HEATER TO ANY AIR DISTRIBUTION
DUCT.
• We recommend that our woodburning hearth products be installed and serviced by
professionals who are certi ed in the U.S. by the National Fireplace Institute
®
(NFI) as
NFI woodburning Specialists or who are certi ed in Canada by Wood Energy
Technical Training (WETT).
• Outside combustion air or fresh air into the room may be required in your area, consult
local building codes (see Combustion Air section).
