ALDI 50712 37CC - Parts List

37cc Petrol Chainsaw
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. 50712 • 11/2015 • WLCS38A-375
(toll free)
10
AFTER SALES SUPPORT
(toll free)
37cc Petrol Chainsaw
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. 50712 • 11/2015 • WLCS38A-375
Parts List

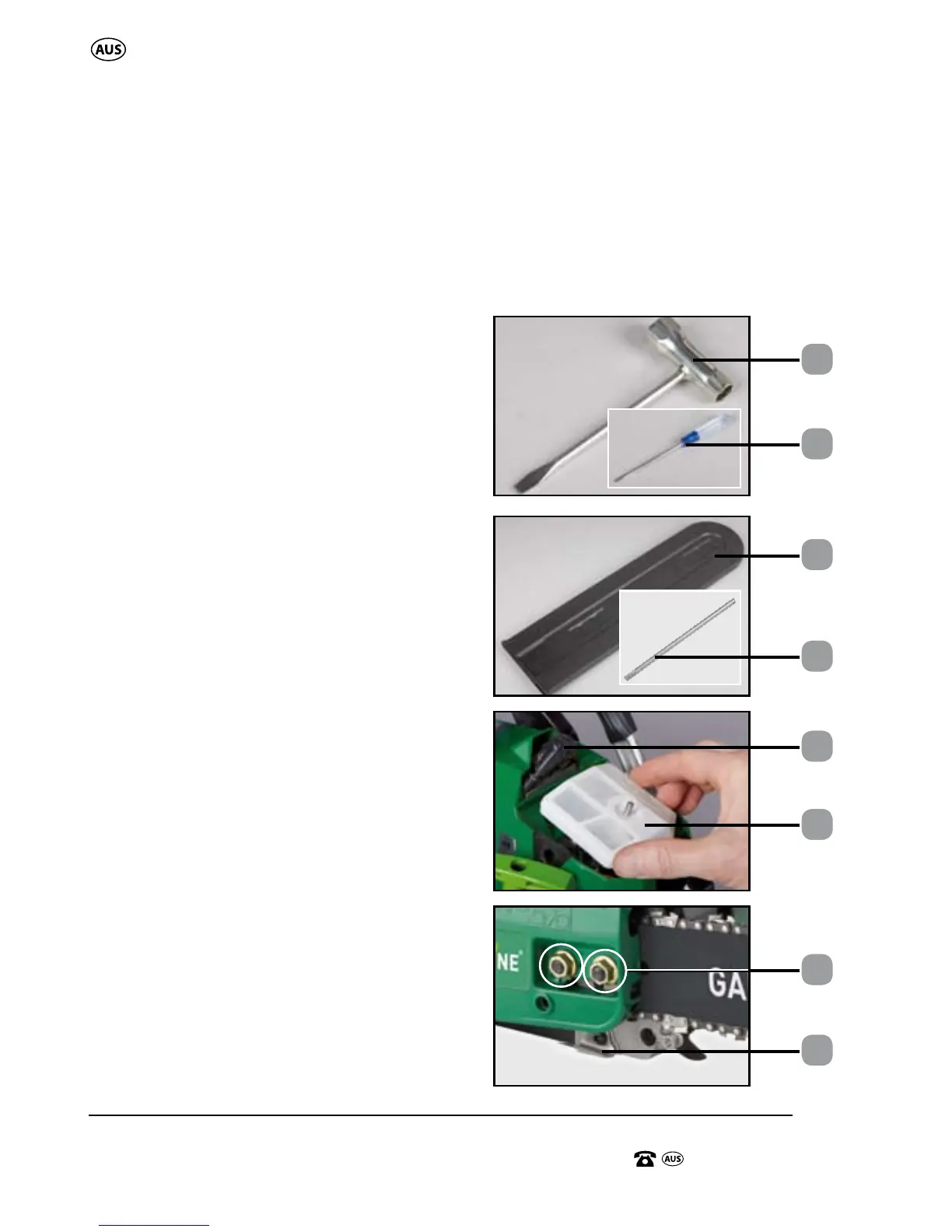

1. Rear handle
2. Safety lever
3. Throttle trigger
4. On/Off switch
5. Oil tank
6. Oil tank cap
7. Fuel tank
8. Fuel tank cap
9. Choke control
10. Recoil starter
11. Top handle
12. Front guard / chain brake
13. Air filter
14. Air filter cover
15. Air filter cover knob
16. Spark plug / Spark plug cover
17. Bucking Spike / Spike Bumper
18. Guide bar
19. Chain
20. Muffler
21. Chain tensioning screw
22. Chain drive side cover
23. Chain drive side cover nut/s (x2)
24. Idling adjustment screw
25. HIGH (Fast) run adjustment screw
26. LOW (Slow) run adjustment screw
27. Chain catcher
28. Drive sprocket
29. Chain tensioner pin
30. Bar cover
31. Fuel mix container
32. Spark plug / Screwdriver wrench
33. Screwdriver
34 Sharpening File
35. Clutch / Brake assembly (internal)
16
30
34
32
33
13
23
27
Parts List
