Air Filter:
1. Loosen the air filter cover (14) by turning the
air filter cover knob (15) in an anti-clockwise
direction and remove the filter cover (13).
2. Split the air filter into its two parts (Fig AJ) and
clean the mesh. Dry particles can be removed
by tapping on a hard surface. More stubborn
dirt may require washing out the air filter (13)
with petrol or using an air compressor.
3. Re-assemble the two halves and replace the air
filter (13), air filter cover (14) and secure the air
filter knob (15).
Guide Bar:
1. Take off the guide bar (18) and maintain it by
removing any sawdust from the groove in the
guide bar. (Fig AK)
2. Make sure that the oil port is not clogged. Oil
the nose sprocket at the tip of the guide bar
(18). (Fig AL)
3. Check for fuel and oil leakage and loose
fastenings, especially those securing the
handles and the guide bar (18).
If any defects are found, take the tool to an
authorised Service Agent.

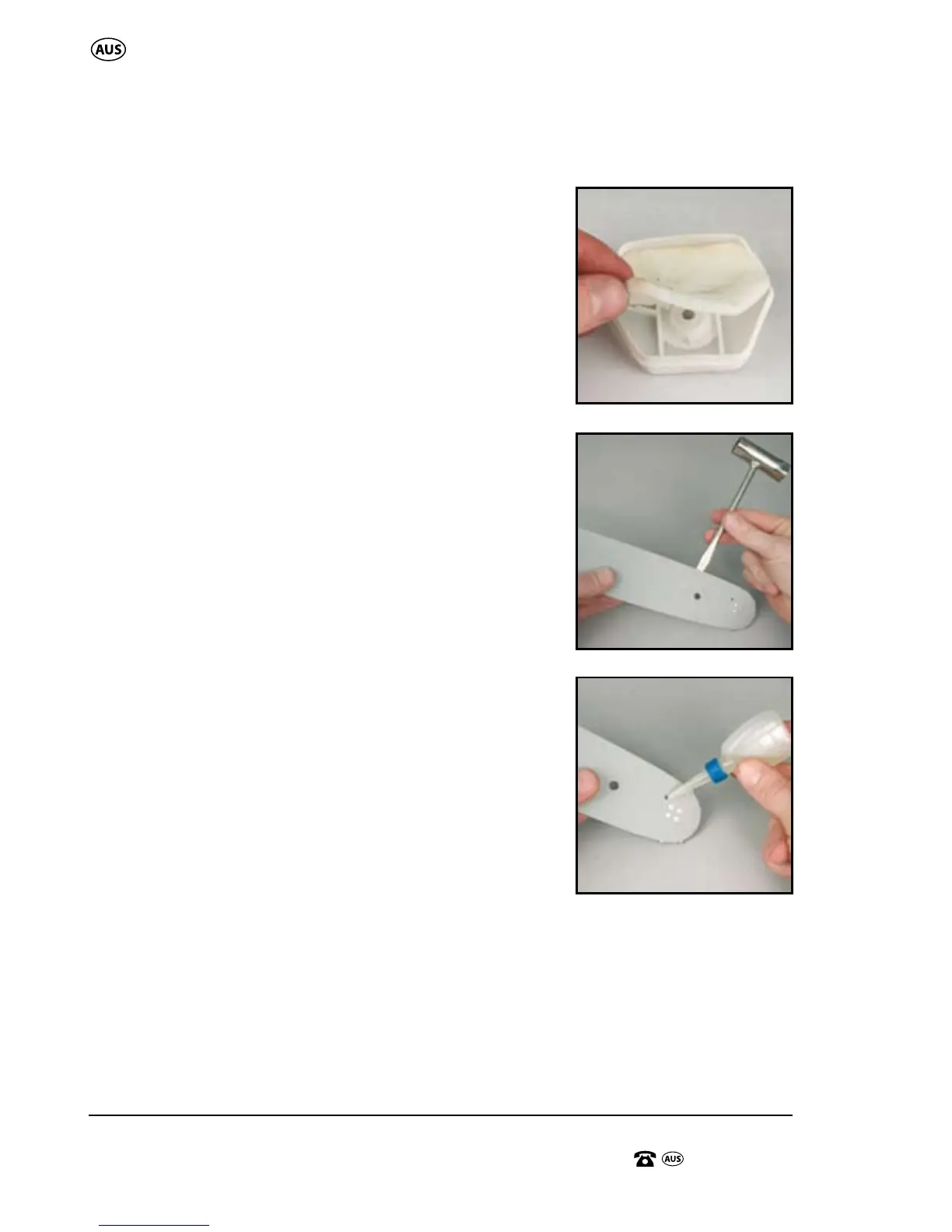

AK.
AJ.
AL.
