Fuelling the Chainsaw
WARNING: Always ensure the engine is
turned off before undertaking this task.
Never add fuel to a machine with a running or hot
engine. Move at least 9m (30 ft.) away from the
refuelling site before starting engine.
Do not smoke when refuelling or operating the
chainsaw.
1. Rest the chainsaw on the ground or a secure
surface and wipe any debris from around the fuel
tank (7).
2. Unscrew the fuel tank cap (8) and pour the fuel
and oil mixture into the tank with the aid of a
funnel, to about 80% of its capacity. (Fig P)
NOTE: Be careful not to spill any mixture. If this
happens, wipe the spill with a clean rag.
3. Secure fuel tank cap (8).
Adding Chain Oil
WARNING: Always ensure the engine is
turned off before undertaking this task.
WARNING: Never start work unless the chain
(19) and guide bar (18) are lubricated.
1. Place the chainsaw on its side with the oil tank
cap (6) facing up. Unscrew and remove the oil
tank cap (6).
2. Using a funnel, fill the oil tank (5) to 80% capacity
with chain oil. (Fig P)
3. Fasten the oil tank cap (6) and wipe up any oil
spillage. (Fig Q)
4. Release the front guard / chain brake (12) by
pulling it firmly towards the back of the chainsaw
until a click is heard. (Fig K)
To check the front guard / chain brake (12) has
been released, you should be able to move the
chain (19) by hand. (Fig S)

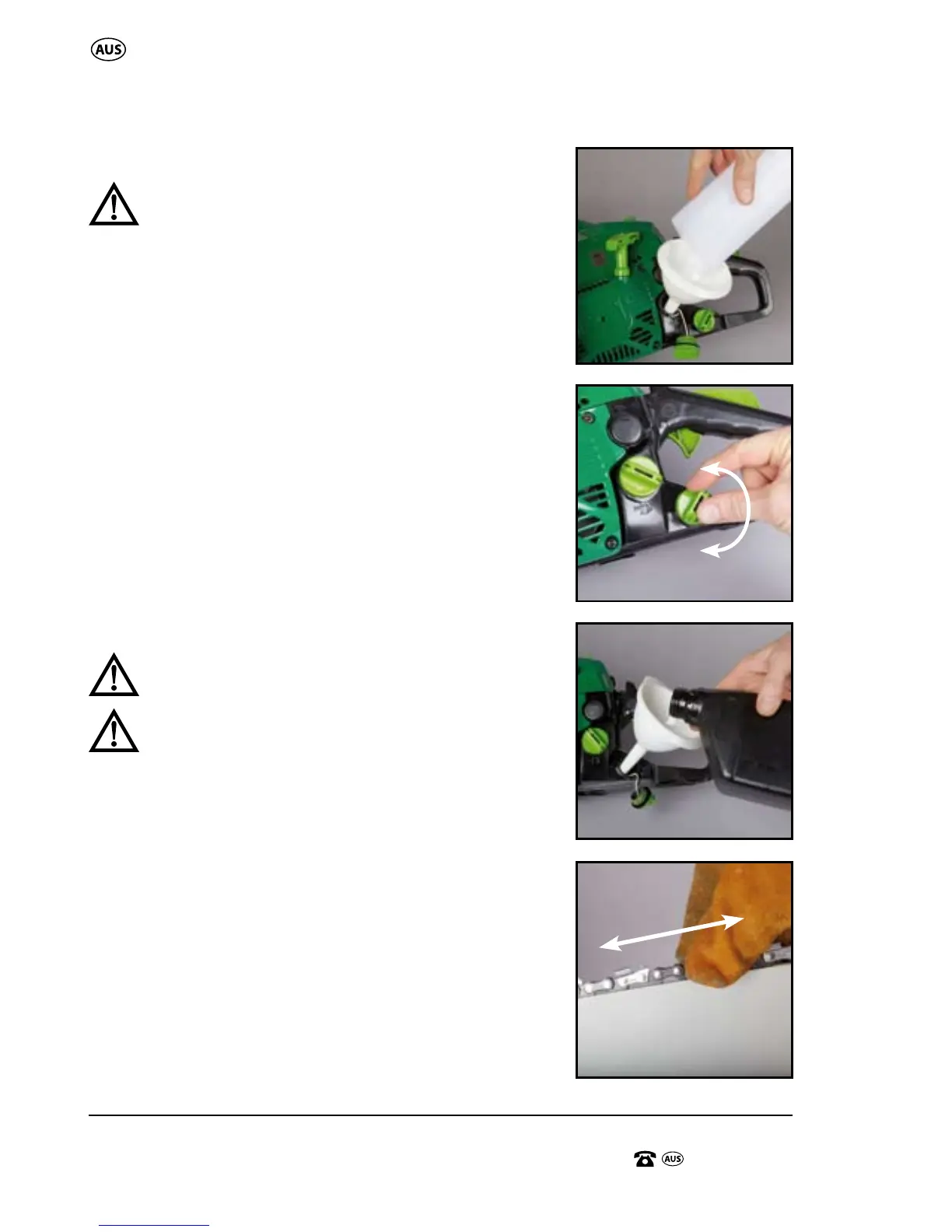

P.
R.
S.
