750W Submersible Water Pump
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290

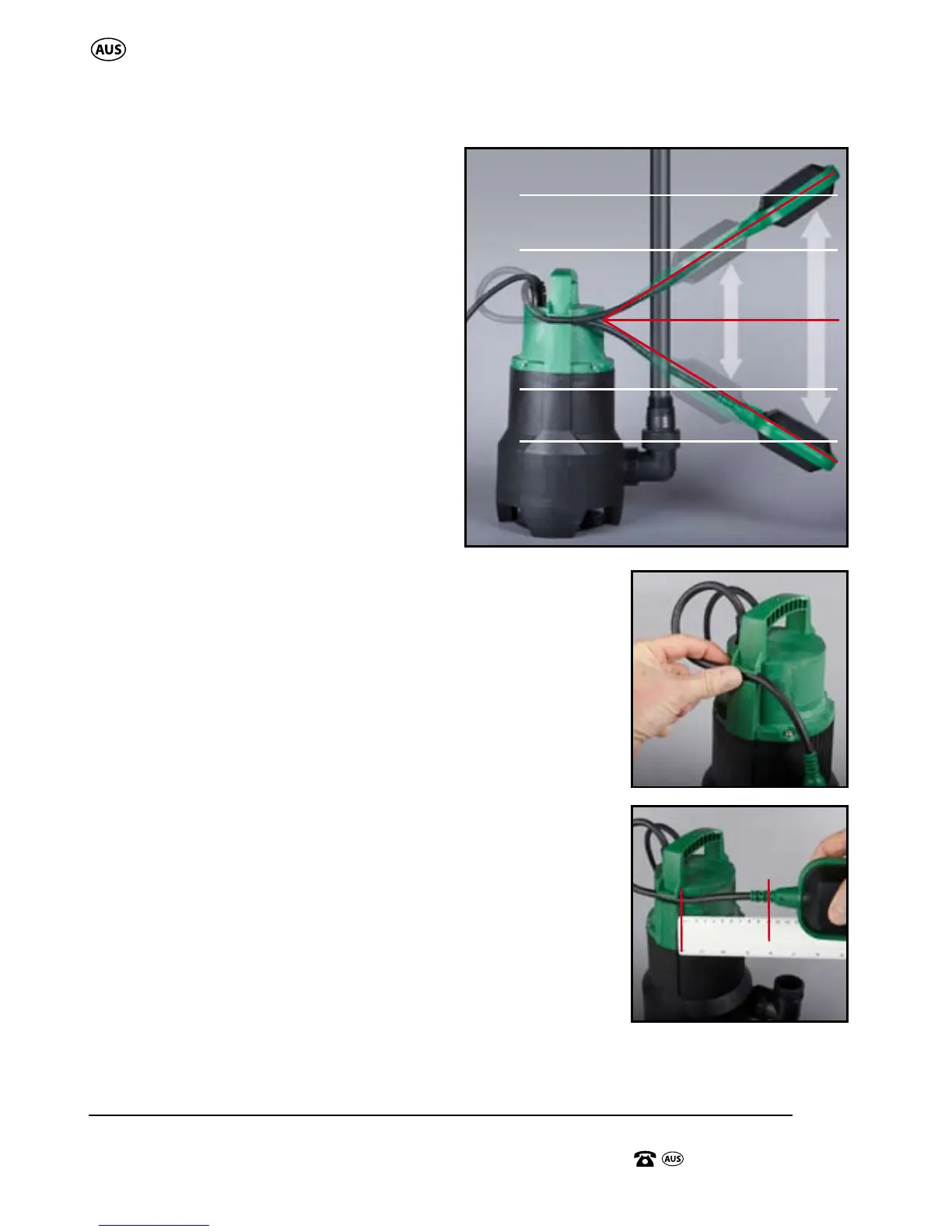

Float Switch
The oat switch will turn the Pump On
and O depending on the water level
and the adjustments made when
setting up the Pump.
In operation, the water level will be
maintained within the On and the O
range of the float switch.
In general, the float switch will turn
on the Pump when the float is angled
upward at approx. 30° (Pic H).
The float switch will turn the Pump off
when the float is tilted downward at
approx. 30° (Pic H).
By clipping the float cable into the
cable clip (Pic I) and changing the length, the height of
the water level and range of the On & O cycle can be
altered. A minimum of 10cm should be maintained
between the float and the clamp (Pic J).
By lengthening the distance between the clip and the
oat the higher the water level to the Pump On point.
The Pump O point will also be a lower water
level (Pic H).
When shortening the distance between the clip and the
oat, the lower the high water Pump On point will be
and the higher the Pump O point will be (Pic H).
Refer page 10 for approx water level range when
setting the length of the float cable.
30°
30°
H.
Water level
Water level
Water level
Water level
10cm
I.
J.
