Set up Wet & Dry Vacuum Cleaner – WZVC 1930 SA

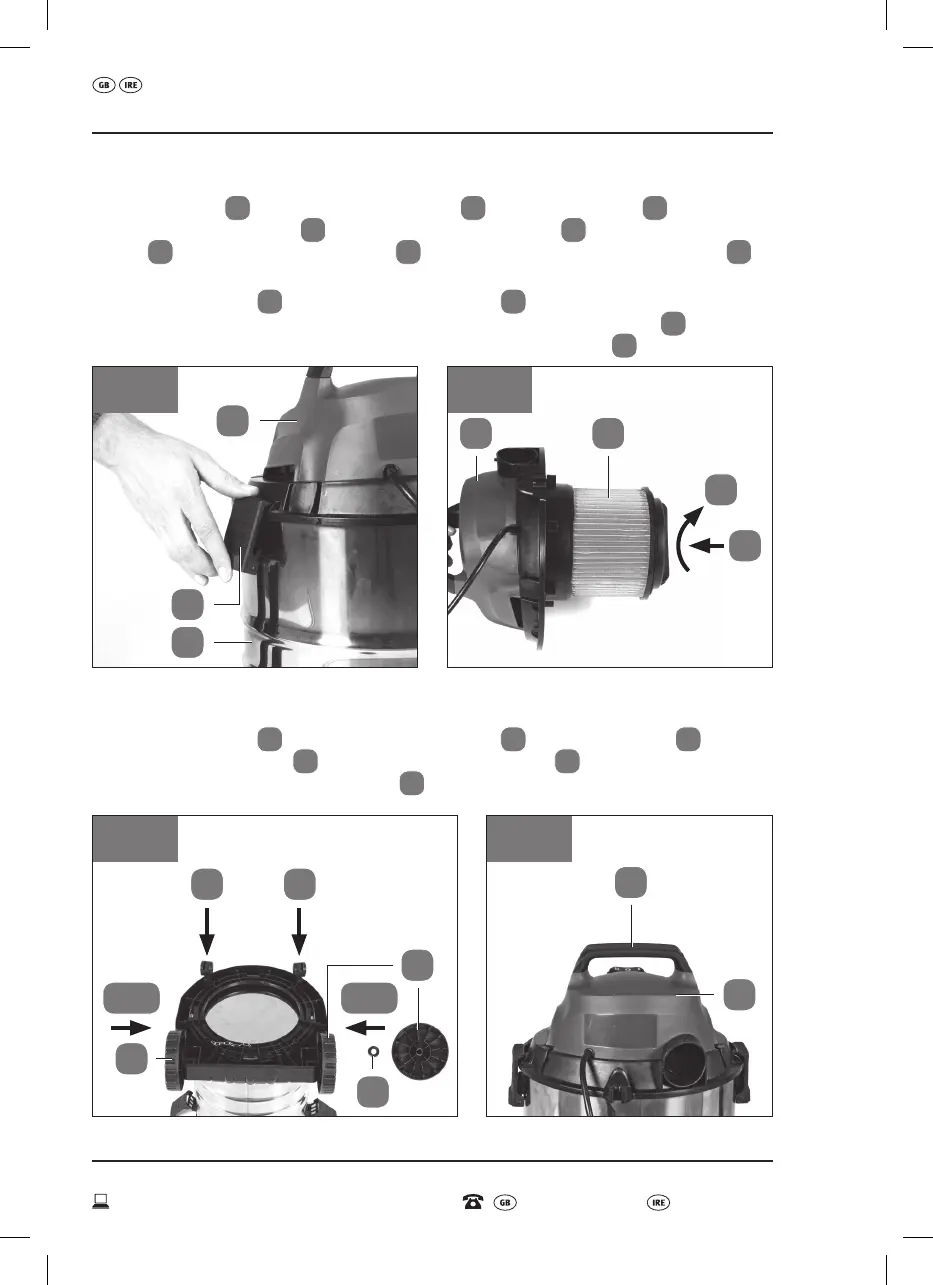

1. Fitting the motor unit (Fig. 7b - 7c)
– The motor unit
3
is fastened to the metal tank
8
by the locking hooks
7
.
To remove the motor unit
3
, open both of the locking hooks
7
and take off the motor
unit
3
(When refi tting the motor unit
3
, make sure that both of the locking hooks
7
are fully locked into place correctly).
– With the motor unit
3
removed from the metal tank
8
, remove all the parts from inside
the metal tank, and all the packaging pieces. (As supplied, the pleated fi lter
15
for dry use,
is already fi tted onto the bottom of the motor unit over the fi lter cage
4
see Fig. 7c).
Fig. 7c
3 15
1
2
3
8
7
Fig. 7b
2. Fitting the wheels & casters (Fig. 8)
– With the motor unit
3
removed from the metal tank
8
, turn the metal tank
8
upside
down and fi t the wheels
18
(with the already fi tted washers
22
) into the plastic base of
the metal tank. Then also fi t the casters
14
.
Fig. 9
1
3
14 14
22
18
22.1818.22
Fig. 8
18
