Alemite 3640 - Page 10

Revision (10-04) 10 Alemite Corporation
SER 3640 Electronic Preset Metered Control Valve
4. Remove V-Block (
51
) and Spring (
53
) from the Stem.
5. Unscrew Screw Assembly (
57
) from the Angle Body.
6. Remove Washer (
56
) from the Screw Assembly.
7. Remove Gasket (
55
) from the Angle Body.
Overhaul
NOTE
: Refer to
Figure 2-A
and
2-B
for
component identification on the major com-
ponents of the valve assembly.
Prior to performing any maintenance procedure, the
following safety precautions must be observed. Personal
injury may occur.
WARNING
Do not use halogenated hydrocarbon sol-
vents such as methylene chloride or 1,1,1 trichlo-
roethane in this valve assembly. An explosion can
result within an enclosed device capable of con-
taining pressure when aluminum and/or zinc-
plated parts come in contact with halogenated
hydrocarbon solvents.
Release all pressure within the system prior to
performing any overhaul procedure.
• Disconnect the air supply line from the pump
motor.
• Into an appropriate container, operate the
control valve to discharge remaining pressure
within the system.
Never point a control valve at any portion of your
body or another person. Accidental discharge of
pressure and/or material can result in personal
injury.
Read each step of the instructions carefully. Make
sure a proper understanding is achieved before
proceeding.
Disassembly
Extensions and Nozzles
1. Unscrew the extension assembly from Control Valve
Assembly (
11
).
2. Separate the components of the extension assembly.
Non-Drip Nozzle (Automatic w/ Manual Lock)
1. Unscrew Nozzle (
49
) from Angle Body (
54
).
2. Remove O-Ring (
50
) from the Nozzle.
3. Remove Stem (
52
) from the Nozzle.

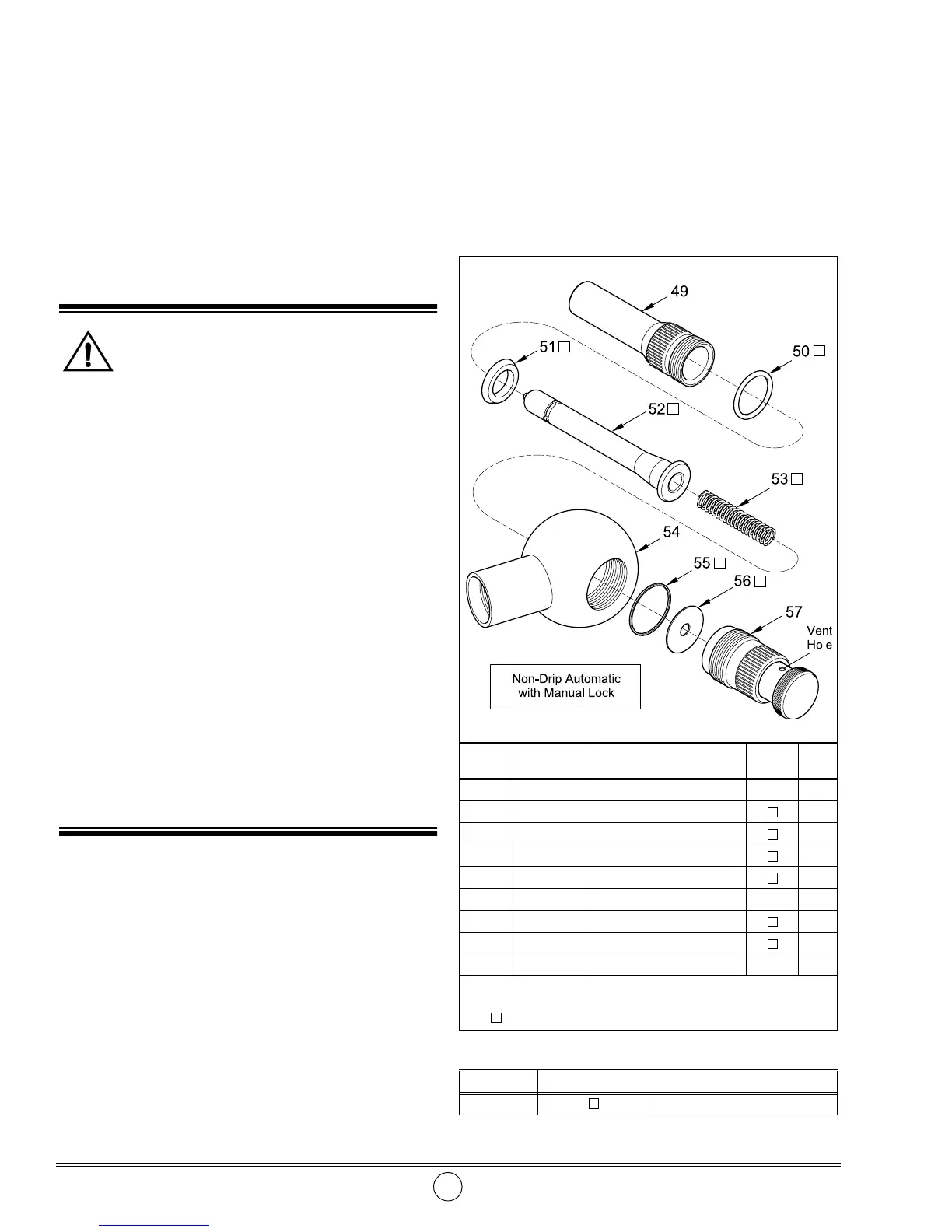

Figure 8
Nozzle Assembly 318400-2 - Exploded View
Item
No.
Part No. Description Notes Qty
49
Nozzle 1
50 O-Ring, 1/2 " ID x 5/8 " OD 1
51 V-Block 1
52 Stem 1
53
Spring 1
54
Body, Angle 1
55 Gasket 1
56
Washer 1
57 Screw Assembly 1
Legend
:
Part numbers left blank are not available separately
designates a repair kit item
Repair Kit
Part No. Kit Symbol Description
393518
Kit, Repair
