Features
4
Top Panel
4
55
5
6
7
89
1011
12 13 14
15 16
17
5
2
1
3

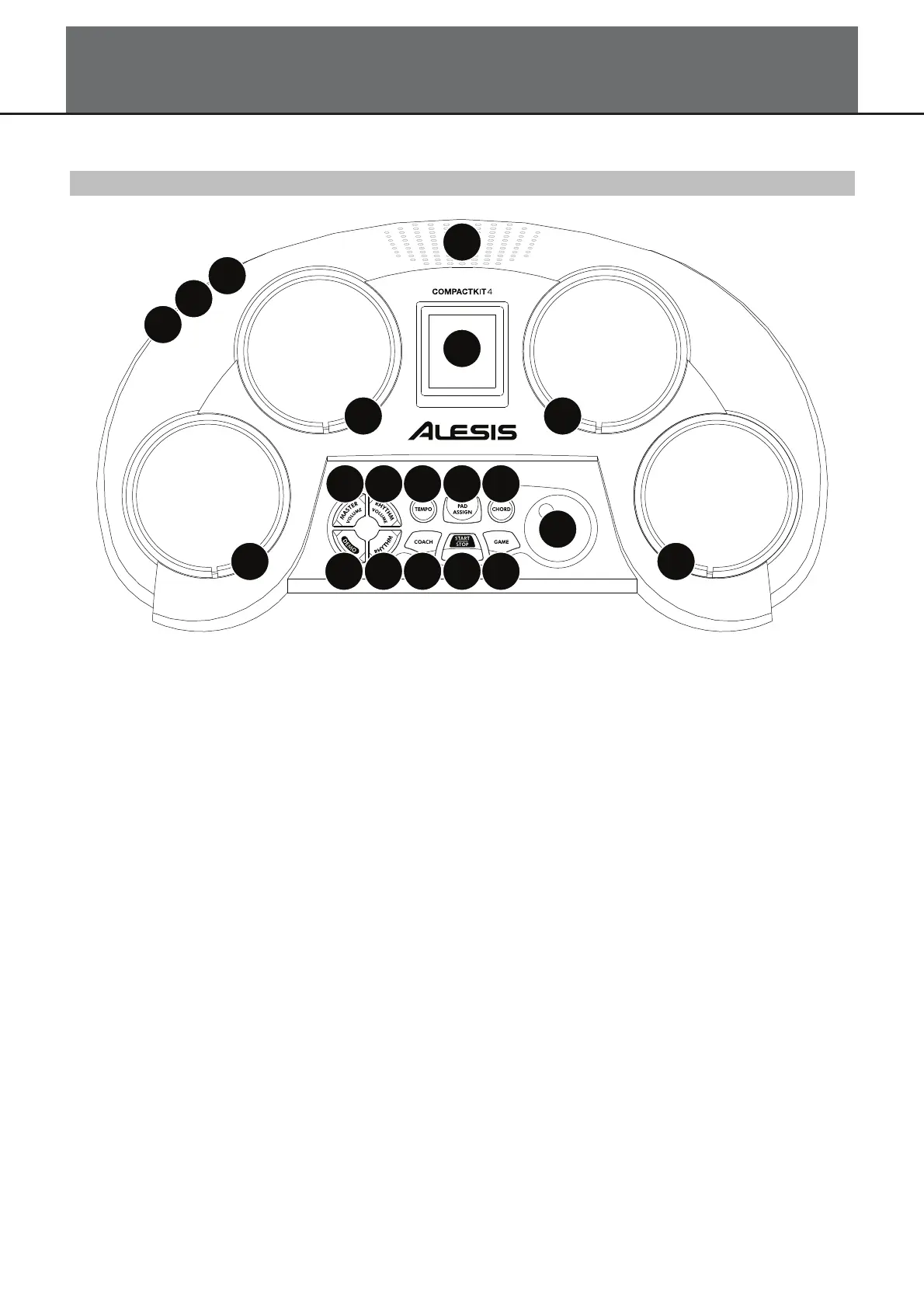

1. Power Input: Connect this input to a power outlet using the included power adapter.
2. Power Switch: Use this switch to power CompactKit 4 on or off.
3. Headphone Output: Connect 1/8” (3.5 mm) stereo headphones (optional, sold separately)
to this output. When headphones are connected, the speaker will be muted.
4. Speaker: The sound will play out of this speaker. When headphones are connected to the
headphone output, this speaker will be muted.
5. Pads: Hit these pads to play CompactKit 4.
6. Display: This LCD shows CompactKit 4’s current operation.
7. Dial: Turn this dial to adjust the setting shown in the display.
Pad 1
Pad 4
Pad 2
Pad 3
8. Master Volume: Press this button, and then turn the dial to adjust the master volume.
9. Rhythm Volume: Press this button, and then turn the dial to adjust the volume of the
accompaniment (everything but the drum sounds in a song).
10. Rhythm: Press this button, and then turn the dial to select a song.
11. Demo: Press this button to play the demo song.
12. Tempo: Press this button, and then turn the dial to adjust the tempo.
13. Pad Assign: Press this button, and then hit a pad to change its sound. Each hit will play
and select the next sound. After you hear the sound you want to use for that pad, press
this button again.
To Next Page
