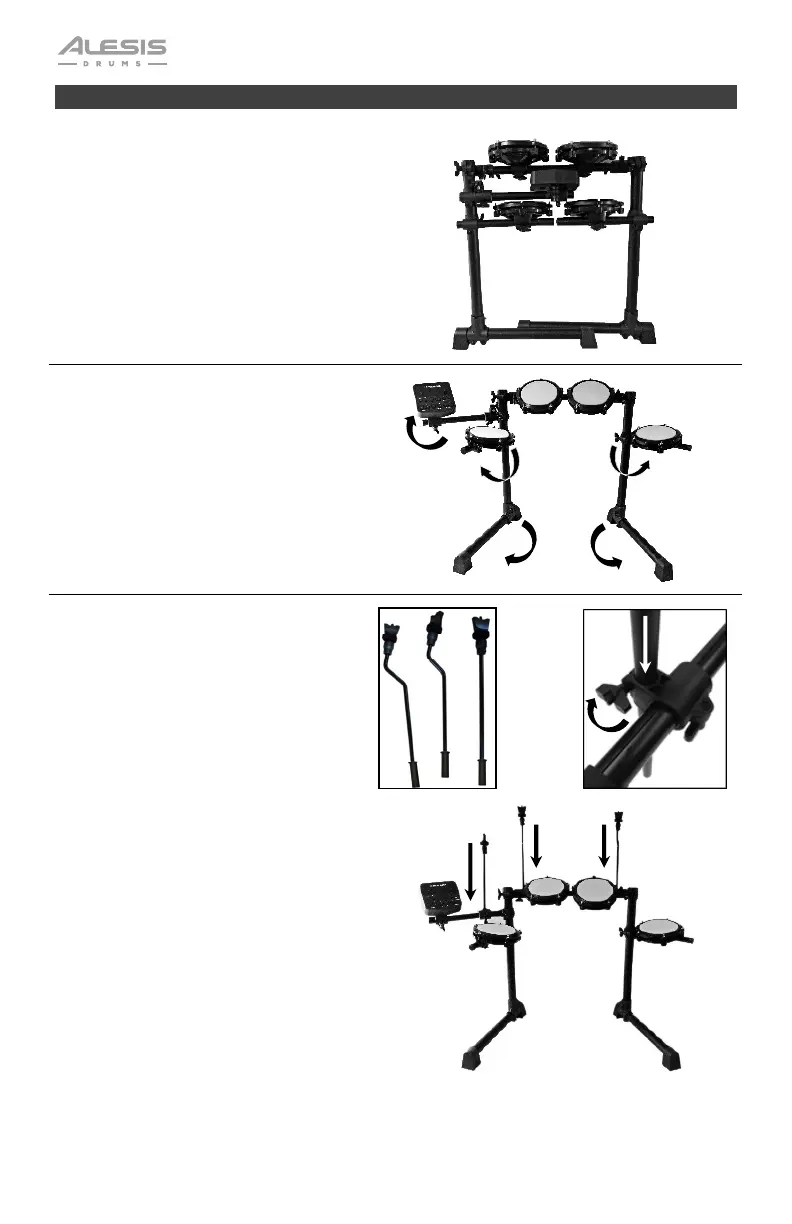

Assembly
1. Remove the E-Drum Total drum rack,
cymbals and cymbal poles from each
of their boxes.
Place the drum rack (as shown, right)
on a flat, level surface.
2. Unfold the rack legs and loosen the
joints of each rack arm to unfold.
If needed, flip the drum module arm
vertically and then tighten to set it in
place.
Once the kit has been fully expanded,
retighten the joint clamps so the arms
are secure.
3. Insert the cymbal arms to the empty
cymbal clamps on the rack arms and
tighten to secure.
A/B
