10
1
2
ALTAVOZ DERECHO

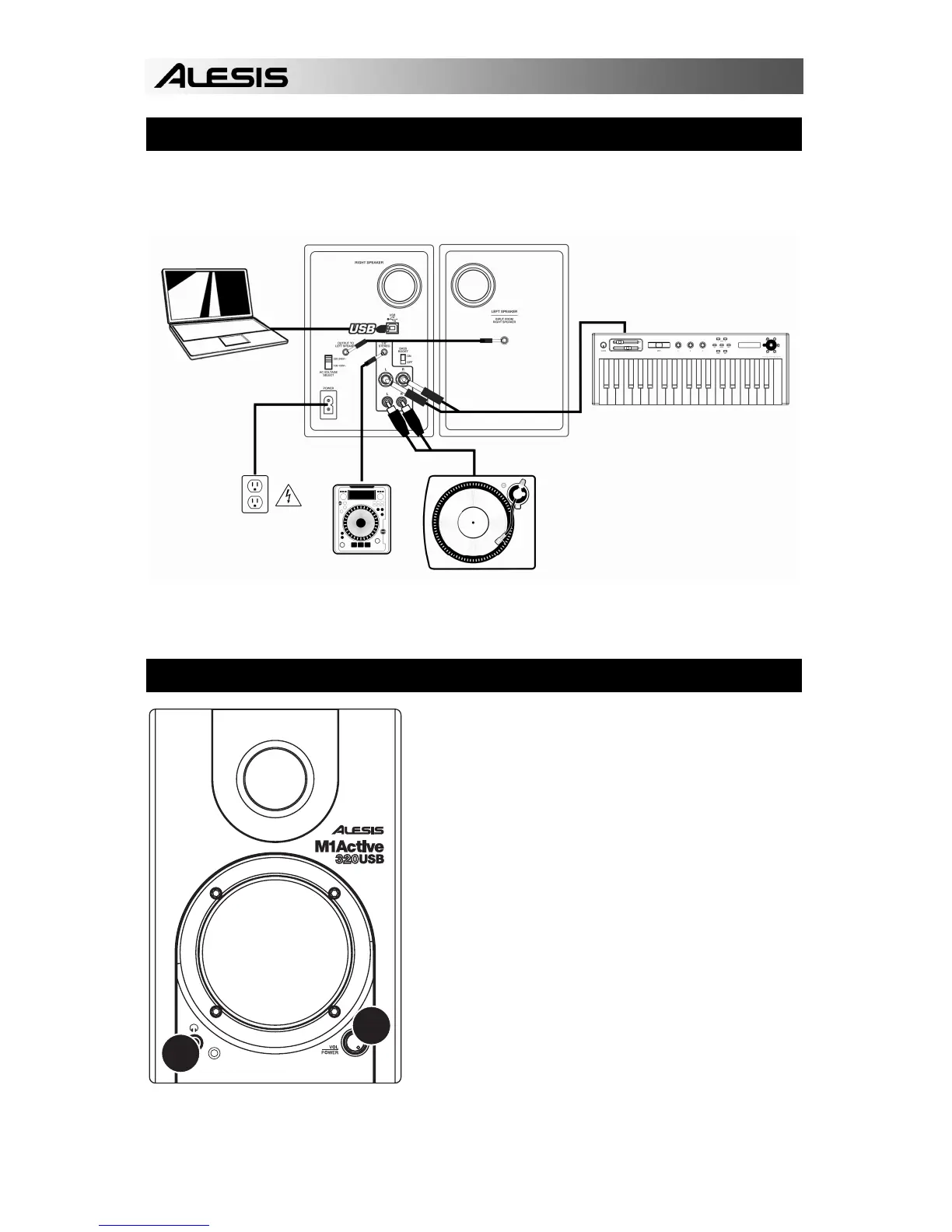

DIAGRAMA DE CONEXIÓN
Refiérase al escenario posible de conexión para conectar sus altavoces USB M1 Active
320.
DESCRIPCIÓN DEL PANEL FRONTAL
1. VOL/POWER – Esta perilla se usa para
encender los altavoces y para ajustar su
volumen. Para encenderlos, simplemente gire
la perilla; usted sentirá un click cuando
encienda los altavoces. Una luz LED azul a la
izquierda del altavoz se iluminará. Para
apagarlo, simplemente gire la perilla de
volumen completamente hacia abajo; el LED
azul se apagará, indicándole que los altavoces
han sido apagados.
2. AUDÍFONOS – Conecte la clavija de 1/8”
(3.175 mm) de sus audífonos a esta salida para
escuchar la mezcla a través de sus audífonos.
Observe que mientras los audífonos están
conectados, usted no podrá escuchar ningún
sonido de sus altavoces hasta que los
audífonos hayan sido desconectados.
LAPTOP
TECLADO O MÓDULO DE SONIDO
TORNAMESA U
OTRO DISPOSITIVO
REPRODUCTOR DE
CD U OTRO
DISPOSITIVO
FUENTE DE
ALIMENTACIÓN

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Alesis M1Active 320USB and is the answer not in the manual?

Alesis M1Active 320USB Specifications

General IconGeneral
TypeActive Studio Monitor
Frequency Response80 Hz - 20 kHz
Power Output10W per channel
InputsRCA, 1/8" stereo
USB Audio InterfaceYes
HF Driver Size1 inch
USBYes
Outputs1/8" headphone output
Driver Size3 inch
