Alesis Performance Service Manual

1 OPLDS5ALE02 Fast Instruction 1
1 PE150350BO Poly Bag 150*350mm 1
1 PE230370402B07 Poly Bag 230*370mm 1
1 PLIED0401 POLY FOAM 1
1 PLIED0402 POLY FOAM 1
1 SD49055000REP SOFT SHEET 1
1 TF41076201UL Adaptor EI-41 AC120V DC12V 0.5 1
1 WR003212010B 5P WIRE 150MM 4
1
TWPC10A01001
   
      
   
1
2

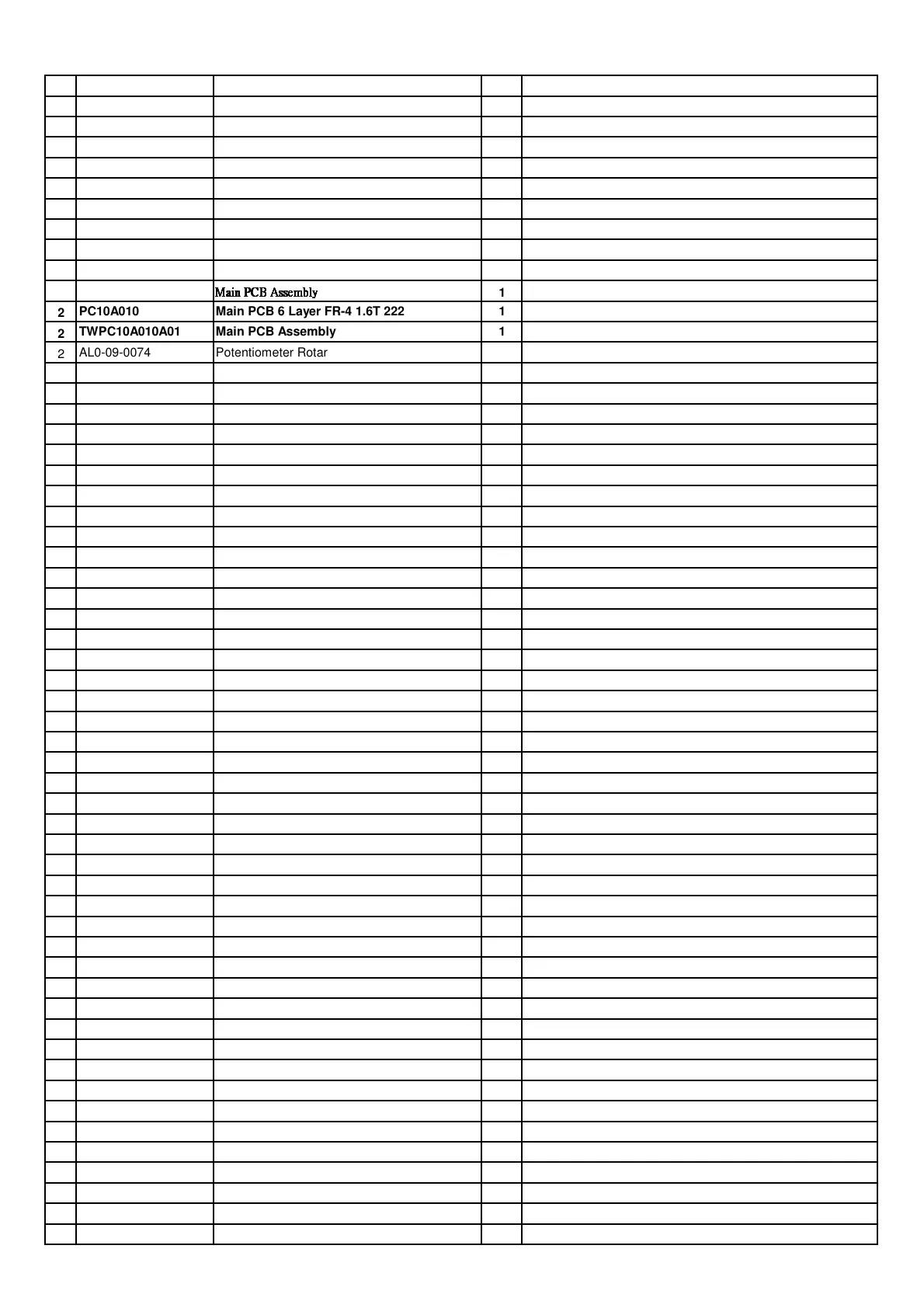

PC10A010 Main PCB 6 Layer FR-4 1.6T 222 1
2
TWPC10A010A01 Main PCB Assembly 1
2
AL0-09-0074 Potentiometer Rotary 10KA 25mm 1 P1
2
AL1-08-0223 Capacitor Electrolytic 220UF/1 1 C99
2
AL1-70-2102 Solid Tantalum Electrolytic 3 C88,117,121
2
AL2-50-4149 Diode Single 1N4148 100V 200mA 2 D5,6
2
AL2-51-0140 Schottky Barrier Rectifiers Di 3 D1,11,14
2
AL2-51-4401 Transistor 2N4401 NPN SOT-23 ( 1 Q13
2
AL2-51-4403 Transistor 2N4403 PNP SOT-23 5 Q7,16,17,20,21
2
AL2-54-0138 Mosfet BSS138 N-CH SOT-23 1 Q15
2
AL2-61-2674 IC REG VOLTAGE LM2674M-ADJ 150 1 U9
2
AL2-62-0245 IC 1 U20
2
AL2-71-4580 IC NJM4580E 1 U17
2
AL2-72-0339 IC LM339 ANALOG COMP SOP-14 2 U27,28
2
AL2-73-4052 IC CD4052 DIFFERENTIAL 4-CHAN 1 U29
2
AL2-75-4345 IC CS4345 TSSOP-10 1 U10
2
AL4-00-0002 MIDI Jack 8P 90° Female 1 J4
2
AL4-02-0006 JACK 1/4 MONO 5-PIN FEM MINI W 4 J1,2,7,8
2
AL4-02-0007 JACK 1/4 STEREO 7-PIN FEM MINI 1 J6
2
AL4-14-0014 Pin Header 180° Pitch 2.54mm 1 J14
2
AL6-02-0001 Switch Push 2P2T Dual Row Lock 1 SW1
2
AL7-20-0070 BEAD 120@100MHz 200mA±25% 0 30 L2,L10,L11,L12,L13,L14,L15,L19~41
2
AL7-20-0071 BEAD SMD 1806 1 L17
2
AL7-20-0087 Inductor 15uH 2.3A ±15% 10.5 1 L3
2
AL7-20-1039 INDUCTOR 39UH PE-53814SNL SMD 1 L4
2
AL9-61-0188 IC(AL2-70-9107) 1 U30
3
AL2-70-9107 IC P89LPC9107FDH Blank TSSOP-1 1 (U30)
2
CS101J5005NPO CCAP SMD 100pF/50V 5% 0805 NPO 4 C31,32,63,65
2
CS102J5005NPO CCAP SMD 1nF/50V 5% 0805 NPO 9 C5,6,11,16,18,20,22,50,183
2
CS103K5003X7R CCAP SMD 0.01uF/50V 10% 0603 X 7 C72,100,101,104,106,124,130
2
CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7 63 C8,12,15,26,40,46,49,58,59,61,64,66,71
C73,74,77,80,83,84,86,87,90,95~97,102
C103,105,107,108~111,113~115,118~120
C122,123,125,127~129,131,133~138
C140~146,168,180~182
2
CS105K1605X7R CCAP SMD 1uF/16V 10% 0805 X7R 2 C42,116
2
CS122J5005NPO CCAP SMD 1.2nF/50V 5% 0805 NPO 2 C75,79
3
CS180J5005NPO CCAP SMD 18pF/50V 5% 0805 NPO 2 C85,94
2
CS330J5005NPO CCAP SMD 33pF/50V 5% 0805 NPO 2 C43,48
2
CS334K5005X7R CCAP SMD 0.33uF/50V 10% 0805 X 1 C112
2
CS394K1605X7R CCAP SMD 0.39uF/50V 10% 0805 X 8 C172~179
2
CS475K1606X7R CCAP SMD 4.7uF/16V 10% 1206 X7 1 C98
2
CS561J5005NPO CCAP SMD 560pF/50V 5% 0805 NPO 2 C76,78
2
EC10735TLE Capacitor Electrolytic low ESR 1 C54
2
ECS15725F Capacitor Electrolytic LOW ESR 2 C38,39
2
ECS22616B Capacitor Electrolytic 22uF/16 16 C17,19,21,23,24,25,44,45,53,57,67,81,91

Alesis Performance Specifications

General

Brand	Alesis
Model	Performance
Category	Drums
Language	English
