DISASSEMBLY PROCEDURES
9.REMOVAL OF MAIN PCB ASS'Y (Fig.9)
(A) TAKE OUT 6 PCS SCREWS TO TAKE OUT THE MAIN PCB FROM THE REAR PANEL

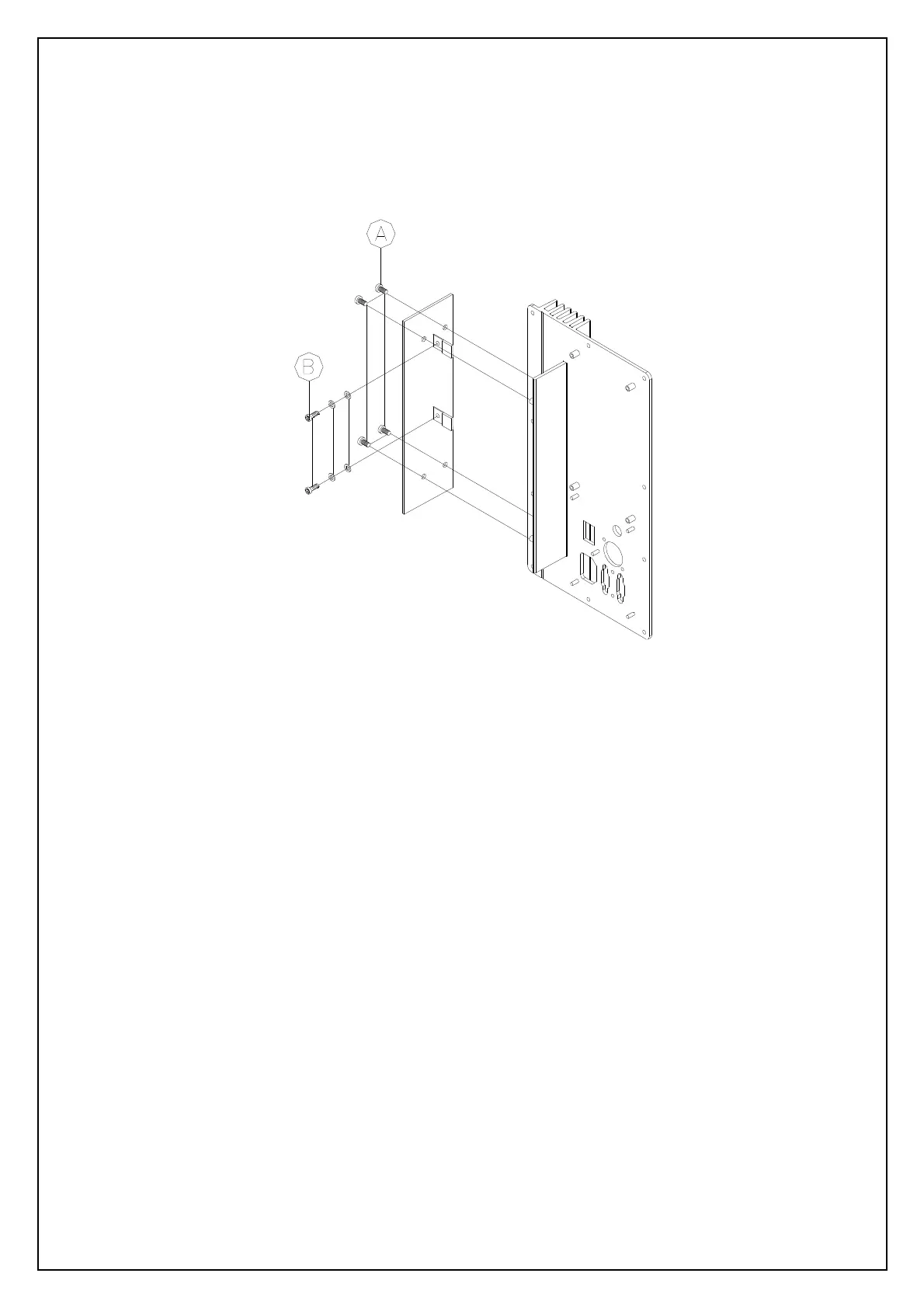

Fig.9
