DISASSEMBLY PROCEDURES

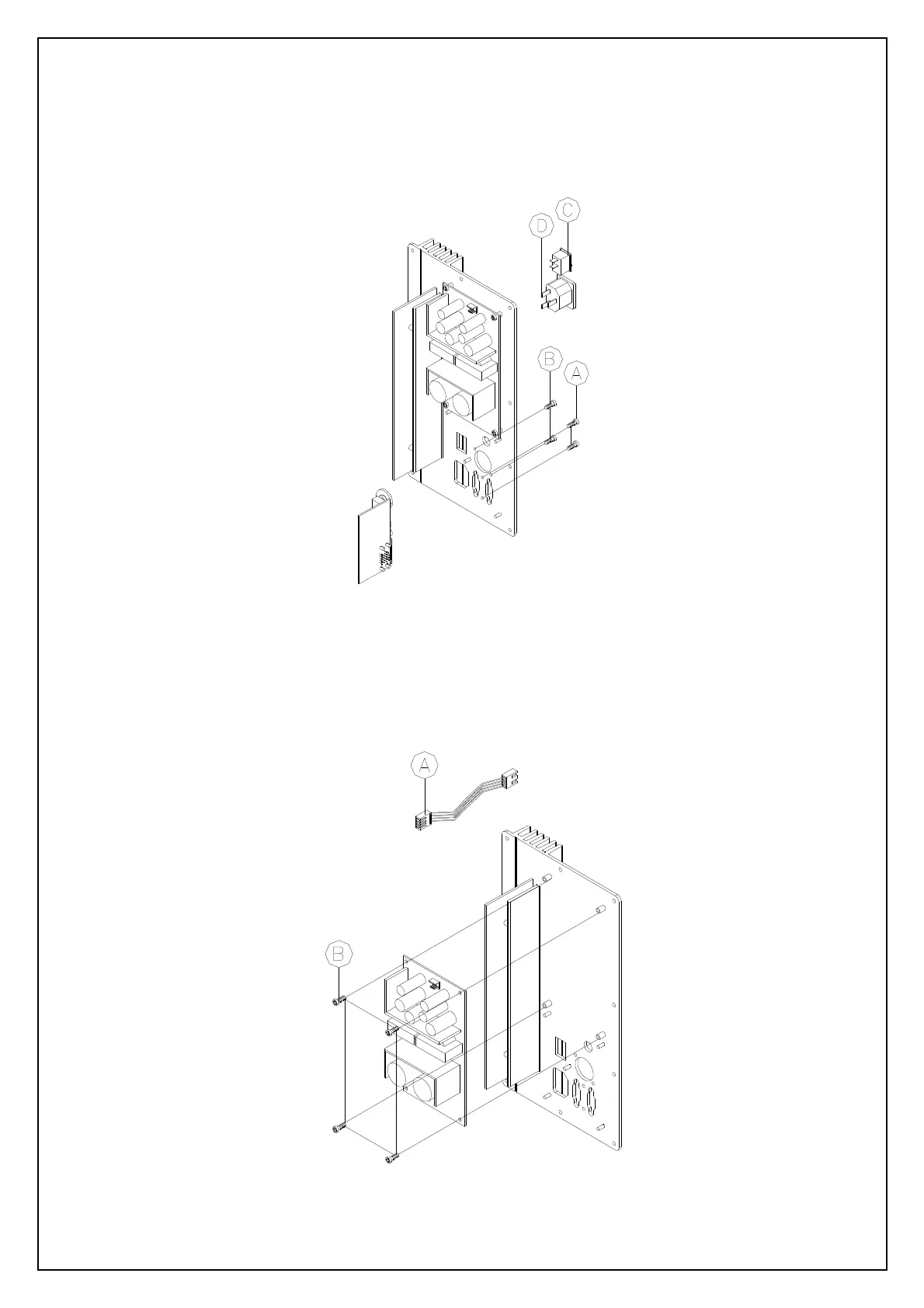

7.REMOVAL OF I/O PCB ASS'Y (Fig.7)
(A) TAKE OUT 4 PCS SCREWS TO TAKE OUT THE I/O PCB ASS'Y FROM THE REAR PANEL
(B) TAKE OUT THE AC SWITCH
(C) TAKE OUT THE AC SOCKET
Fig.7
8.REMOVAL OF POWER SUPPLY (Fig.8)
(A) TAKE OUT THE 4 PIN CABLE FROM THE POWER SUPPLY\
(B) TAKE OUT 4 PCS SCREWS TO TAKE OUT THE POWER SUPPLY FROM THE REAR PANEL
Fig.8
