DISASSEMBLY PROCEDURES

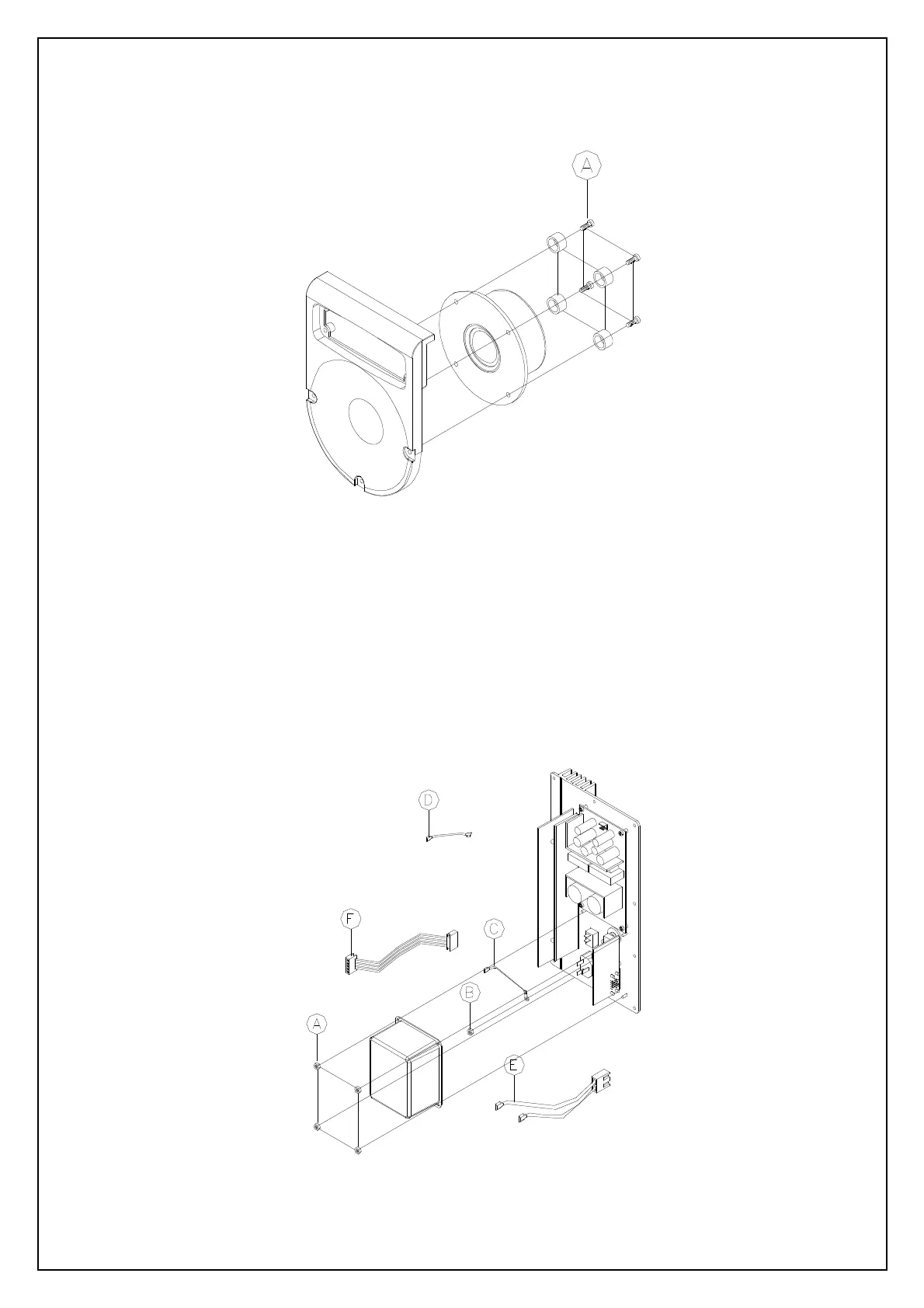

5.REMOVAL OF TWEETER (Fig.5)
(A) TAKE OUT THE 4 PCS SCREWS AND BRASS NUTS TO TAKE OUT THE TWEETER FROM THE WAVEGUIDE
Fig.5
6.REMOVAL OF I/O CUP (Fig.6)
(A) TAKE OUT THE 4 PCS NUTS TO TAKE OUT THE SEALING CUP FROM THE REAR PANEL
(B) TAKE OUT THE 1 PCS UNT AND GROUNDING CABLE FROM THE REAR PANEL
(C) TAKE OUT THE GROUNDING CABLE FROM THE AC SWITHC
(D) TAKE OUT 1 PIN CABLE FROM AC SWITCH AND AC SOCKET
(E) TAKE OUT 2 PIN CABLE FROM AC SWITCH & AC SOCKET
(F) TAKE OUT 10 PIN CABLE FROM I/O PCB
Fig.6
