DISASSEMBLY PROCEDURES

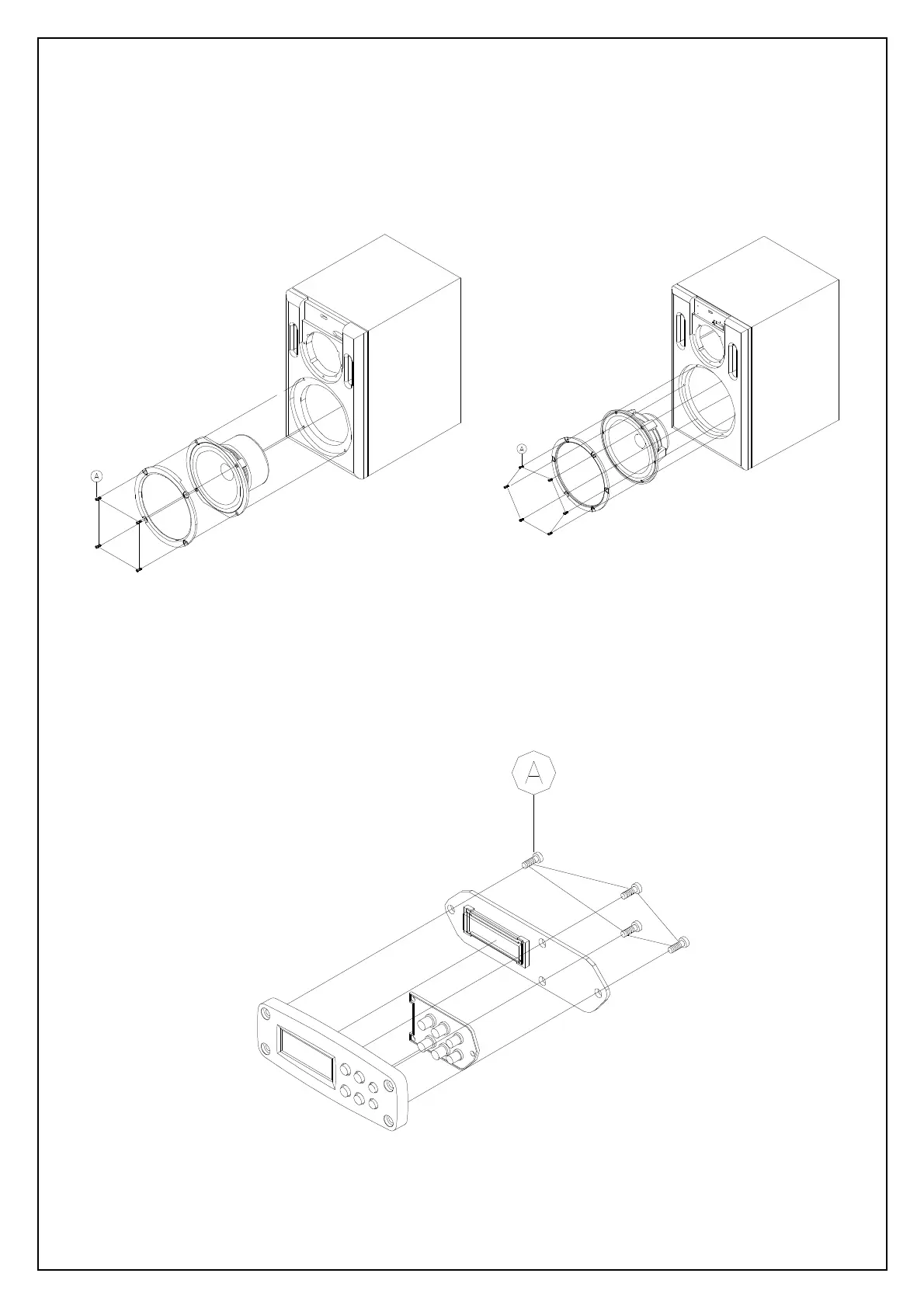

3.REMOVAL OF TRIMRING
A. TAKE OUT THE 4 PCS SCREWS TO TAKE OUT THE TRIM RING AND THE WOOFER FROM
THE FRONT BAFFLE (AS1)Fig.3-1
A. TAKE OUT THE 6 PCS SCREWS TO TAKE OUT THE TRIM RING AND THE WOOFER FROM
THE FRONT BAFFLE (AS3)Fig.3-2
Fig.3-1 Prolinear 720 DSP Fig.3-2 Prolinear 820 DSP
4.REMOVAL OF DSP PCB (Fig.4)
(A) TAKE OUT THE 4 PCS SCREWS TO TAKE OUT DSP PCB AND RUBBER KEYPAD FROM THE DSP BEZEL
Fig.4
