Alesis Prolinear 720 - Page 8

DISASSEMBLY PROCEDURES

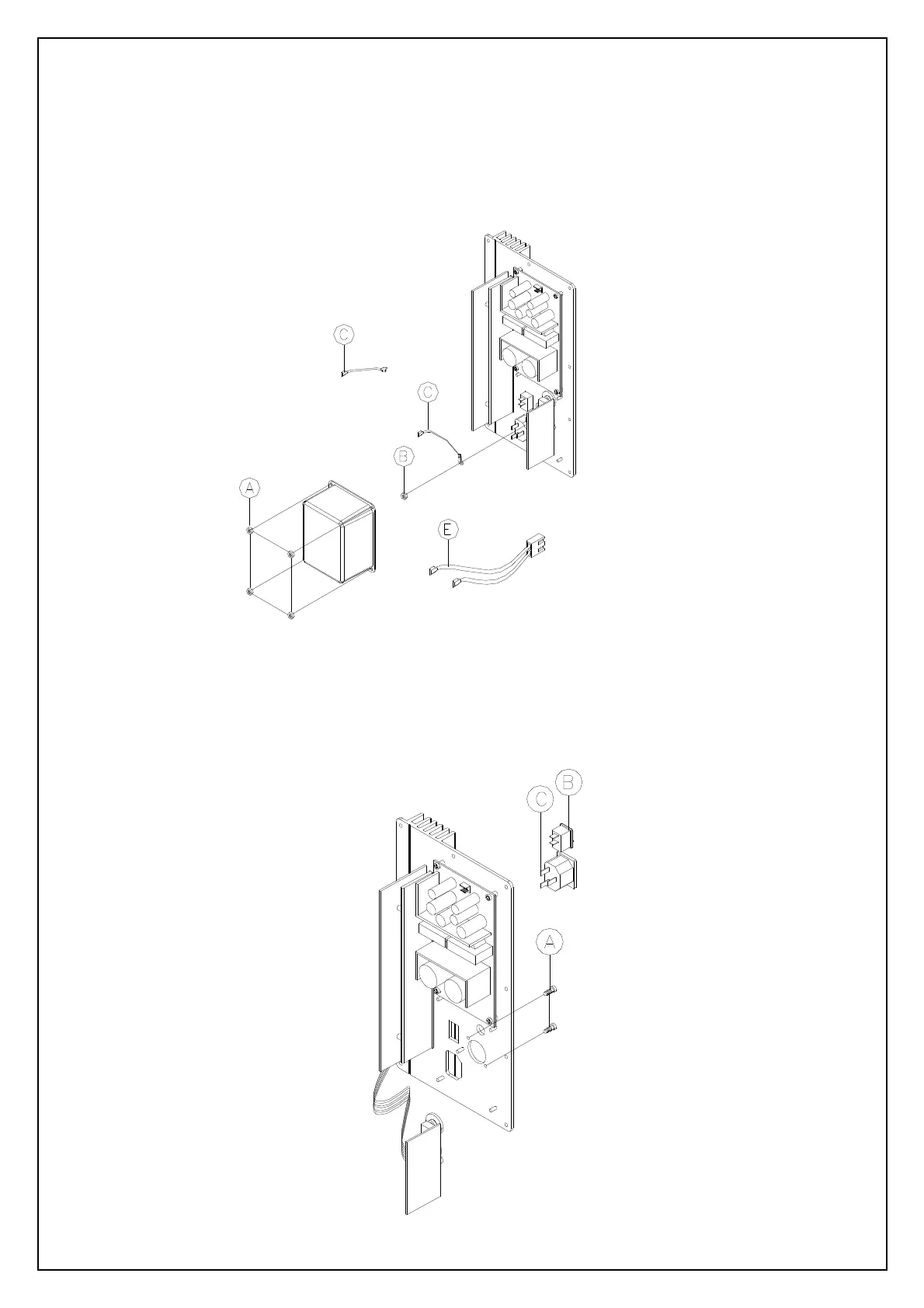

5.REMOVAL OF I/O CUP (Fig.5)
(A) TAKE OUT THE 4 PCS NUTS TO TAKE OUT THE SEALING CUP FROM THE REAR PANEL
(B) TAKE OUT THE 1 PCS NUT AND GROUNDING CABLE FROM THE REAR PANEL
(C) TAKE OUT THE GROUNDING CABLE FROM THE AC SWITCH
(D) TAKE OUT 1 PIN CABLE FROM AC SWITCH AND AC SOCKET
(E) TAKE OUT 2 PIN CABLE FROM AC SWITCH & AC SOCKET
Fig.5
6.REMOVAL OF I/O PCB ASS'Y (Fig.6)
(A) TAKE OUT 2 PCS SCREWS TO TAKE OUT THE I/O PCB ASS'Y FROM THE REAR PANEL
(B) TAKE OUT THE AC SWITCH
(C) TAKE OUT THE AC SOCKET
Fig.6
