DISASSEMBLY PROCEDURES

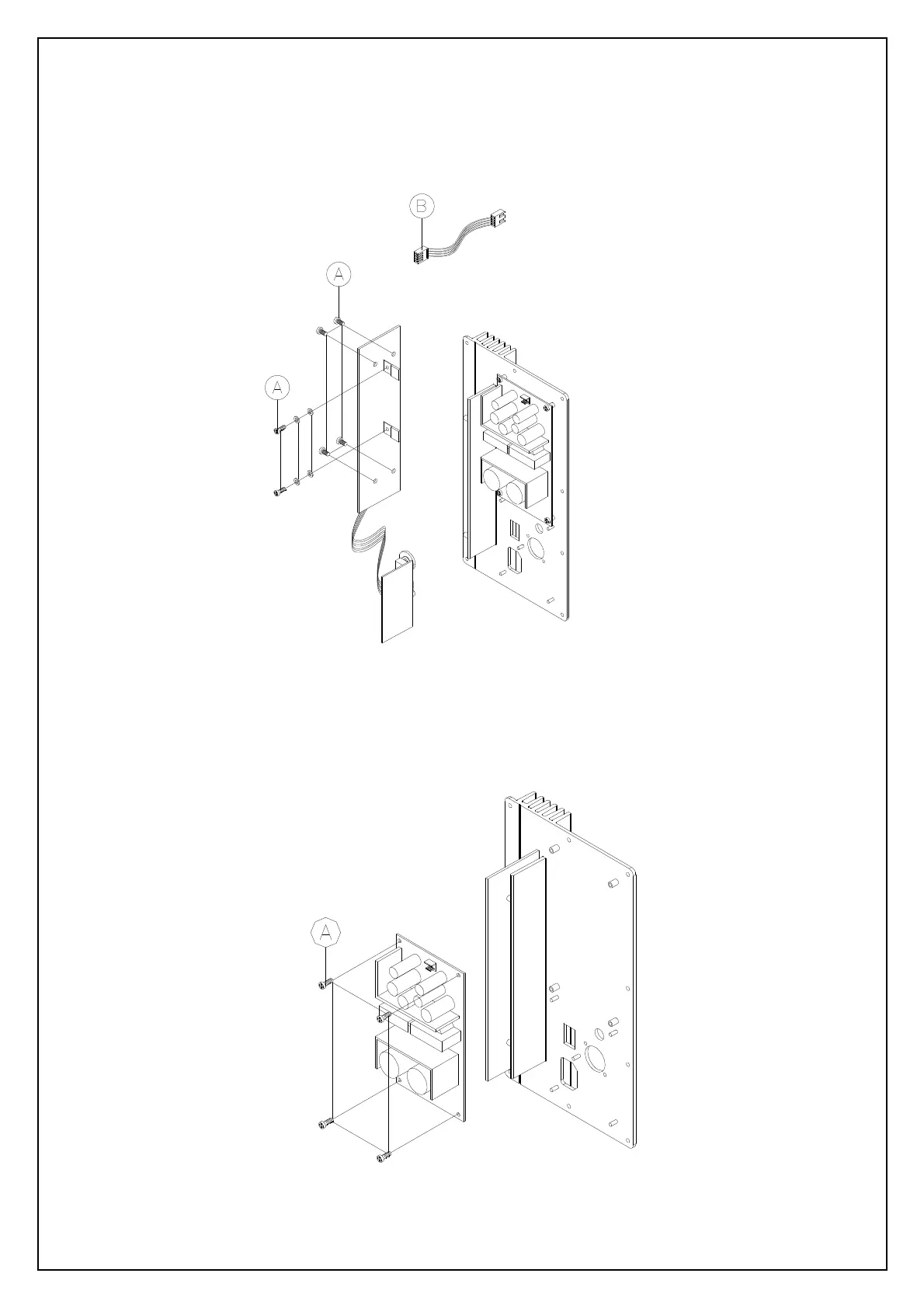

7.REMOVAL OF MAIN PCB ASS'Y (Fig.7)
(A) TAKE OUT 6 PCS SCREWS TO TAKE OUT THE MAIN PCB FROM THE REAR PANEL
(B) TAKE OUT THE 4 PIN CABLE FROM THE POWER SUPPLY
Fig.7
8.REMOVAL OF POWER SUPPLY (Fig.8)
(A) TAKE OUT 4 PCS SCREWS TO TAKE OUT THE POWER SUPPLY FROM THE REAR PANEL
Fig.8
