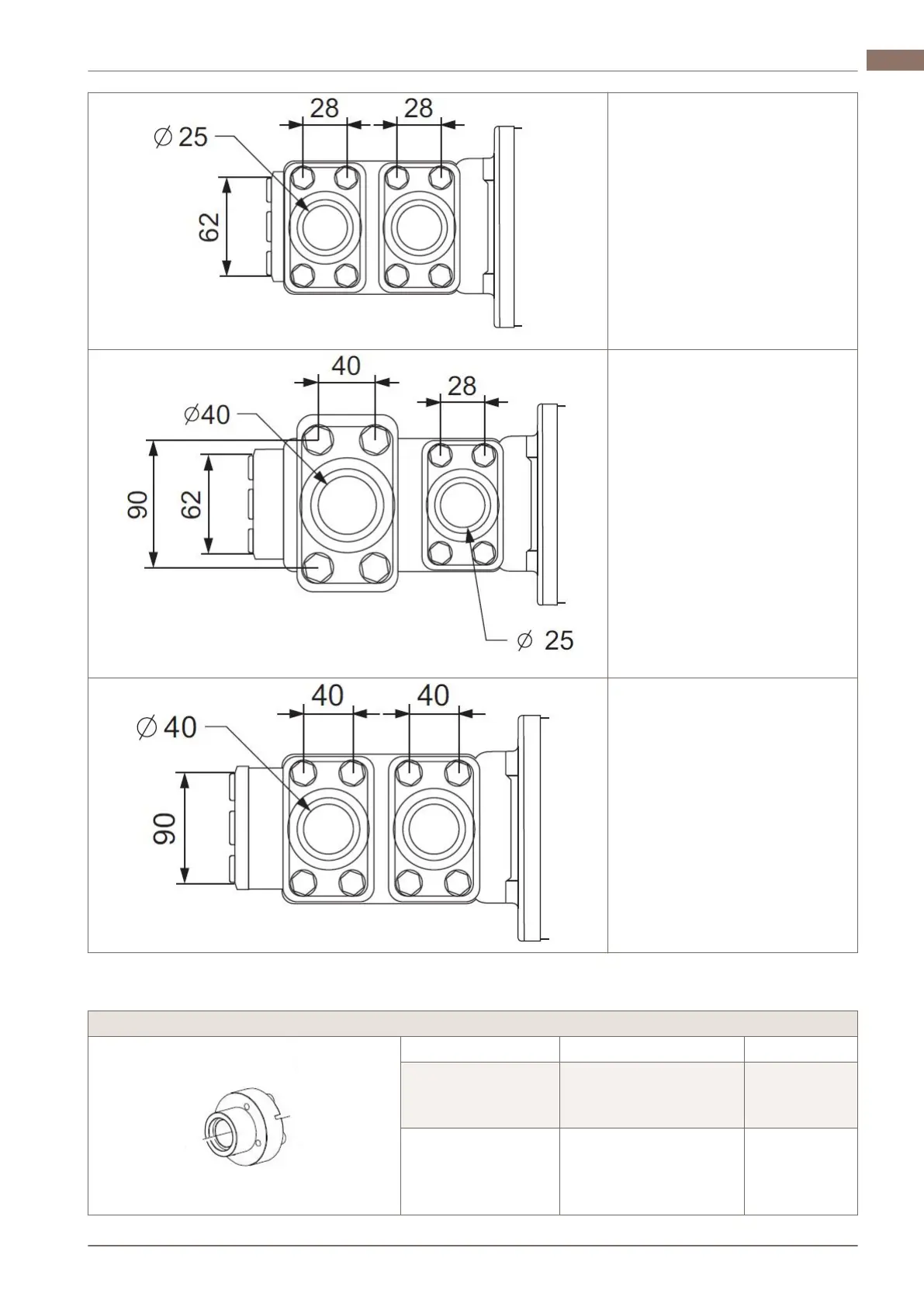

ALP 0015, ALP 0020
2x 1764629 01 D: 25 mm
ALP 0030, ALP 0040
1x 1764629-01 D: 25 mm
1x 1764628-01 D: 40 mm
ALP 0050, ALP 0075, ALP 0085
2x 1764628-01 D: 40 mm
12.4
T
ensioning element
T
ensioning element, Pos. 585
Pump type
Part no.
Qty
ALP 0015–0020,
ALP 0030–0040
Magnetic coupling,
901287601
1
ALP 0055–0085,
Magnetic coupling
901287602
1
200007721-1-EN-GB
71
Spare Parts
12
EN
70
72
Table of Contents
Table of Contents
3
Warning Signs in Text
7
Warning Signs
7
About this Document
9
General Information
9
Target Groups
9
Symbols
9
Associated Documents
9
Safety
11
Proper Use
11
Safety Information
12
Safety Instructions for Magnetic Coupling Systems
13
Labelling
15
Type Code
15
Communication Plate
16
Technical Data
17
Operating Limits
17
Required NPSH Values
18
Weights
19
Dimensions
20
Capacity Tables
22
Sound Pressure Levels
24
Overflow Valve
24
Materials
24
Function Description
25
Structure
25
Standard Direction of Rotation
26
Flow Direction
26
Magnetic Coupling
26
Overflow Valve
26
Transportation, Storage and Disposal
27
Unpacking and Checking the State of Delivery
27
Lifting the Pump/Pump Unit
27
Storage
28
Preservation
29
Removing the Preservation
30
Disposing of the Pump
31
Installation, Removal and Connection
33
Safety Instruction on Installation, Removal and Connection
33
Installation
33
Installing the Pump
34
Protect the Pump against Soiling
35
Connecting the Pump to the Pipe System
35
Connecting the Motor
36
Removing the Pump
37
Operation
39
Commissioning
39
Cleaning the Pipe System
40
Filling the Pump
41
Filling the Pump Via the Suction or Pressure Connection
42
Checking Direction of Rotation
43
Commissioning the Pump
44
Taking Pump out of Operation
45
Recommissioning the Pump
46
Maintenance
47
Safety Instructions on Maintenance and Repairs
47
Required Maintenance
48
Magnetic Coupling
48
Ball Bearing
48
Replacing the Magnetic Coupling
49
Dismantling the Outer Rotor
49
Dismantling the Inner Rotor
51
Installing the Magnetic Coupling
53
Mounting the Inner Rotor
53
Mounting the Outer Rotor
57
Replacing the Ball Bearing
59
Removing the Ball Bearing
59
Installing the Ball Bearing
61
Troubleshooting
63
Possible Faults
63
Troubleshooting
64
Spare Parts
67
ALP Magnetic Coupling Spare Parts
67
ALP Magnetic Coupling - Maintenance Kit
68
ALP 0015-0020 Magnetic Coupling - Maintenance Kit
68
ALP 0030-0040 Magnetic Coupling - Maintenance Kit
69
ALP 0055-0085 Magnetic Coupling - Maintenance Kit
70
Flange Gasket
70
Tensioning Element
71
Valve Body (Cone)
72
Cylindrical Spring
72
Containment Can
72
Screw Plug for ALP Magnetic Coupling
73
Appendix
75
General Drawings
75
Parts Table
76
Tightening Torques
77
Required Tool for Maintenance Work
78
EC Declaration of Conformity
79
4
