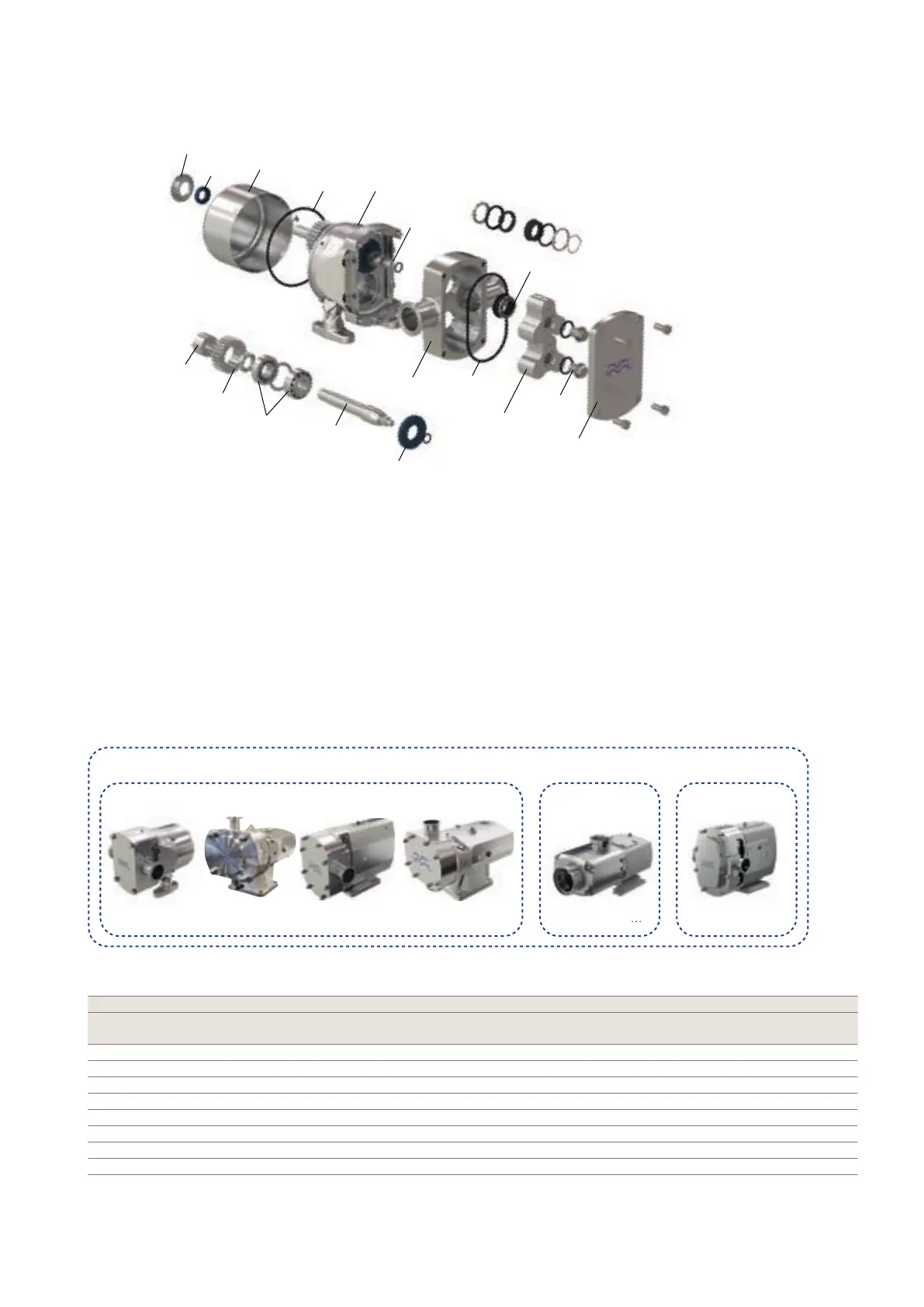

Example of exploded view - OptiLobe
Lip seal retainer
Lip seal
Canister
Canister O-ring
Bearing housing
Shaft
Mechanical seal
Mechanical seal arrangement
Rotorcase cover
Rotor nuts
Rotors
Rotorcase
co
ver O-ring
Rotorcase
Lip se
a
l
Shaft
Bearings
Timing gear
Torque locking assembly
Inspect the pump regularly
The Alfa Laval pumps are available in various configurations to fit specific applications. To inspect the pump you need to know
the type of pump. This information is available on the name plate of your pump. Further information can be obtained online by
using the serial number.
Pr
eventive maintenance aims to prevent failure of equipment by doing e.g. regular inspection and lubrication. Based on
experience and knowledge about the running conditions it is also possible to replace wear parts before they fail. Keeping a
maintenance log is a good way to build experience. It is advisable to install pressure gauges on both sides of the pump so that
any problems within the pump/pipework can be monitored.
Positive displacement pumps
Rotary lobe pumps Twin screw pumps Circumferential
piston pumps
OptiLobe SX UltraPureSRU SX
DuraCirc &
DuraCirc Aseptic
OS Twin Screw
This Preventive maintenance guidelines mainly cover positive displacement pumps as below:
Inspect / Clean / Lubricate
Supplier
instruction
Weekly Monthly Half-yearly
OptiLobe, SRU, SX & SX UltraPure, OS Twin Screw, SCPP*, DuraCirc & DuraCirc Aseptic
Checking the seals for leakage X
Checking the lip seals for leakage X
Check pumping pressures X
Drive unit / all type of pump
X
Check the oil seals for leakage X
Checking the oil level in the gearcase with pump stationary X
