Traditional clay flue with indents. Optimal efficiency 80%
Do not use flue pipes with rectangular cross section with ratio
different from the plan. Efficiency of modest 40%

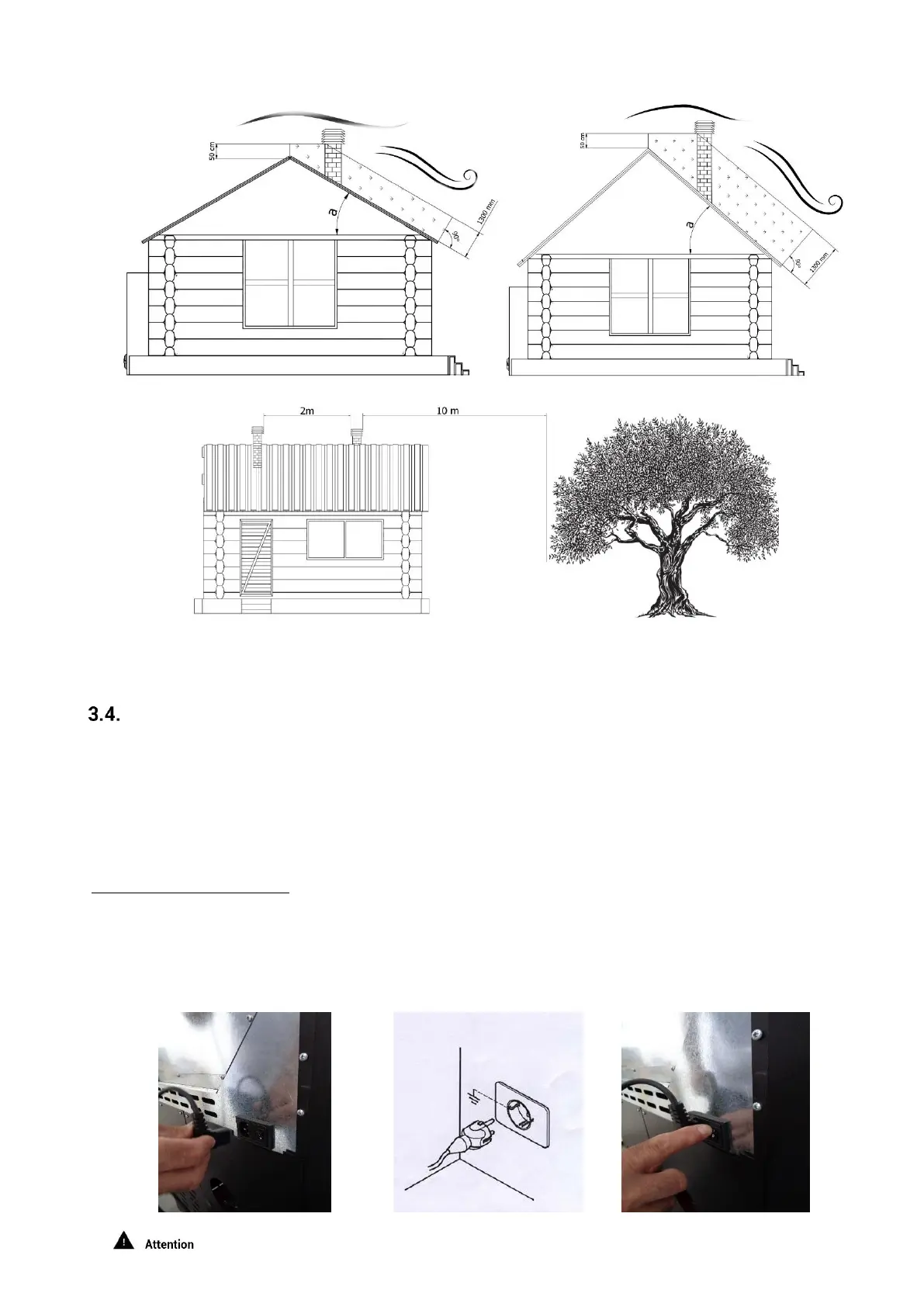

Flue – position and distance
CONNECTION TO ELECTRIC POWER SUPPLY
These boiler s should be connected to the electric power supply. Our boiler s have electrical cables suitable for mild
temperatures. Should the cable be damaged, please consult our authorized maintenance staff. Before you connect the boiler to
the electric power supply, ensure that:
The characteristics of the electrical installations correspond to the data i.e. specification stated on the nameplate
of the boiler .
The smoke discharge system must be grounded in accordance with applicable local regulations. (Grounding is
prescribed by the law).
Under no circumstances may the electrical cable be exposed to a temperature above 80°C
The power cable is part of the equipment that is supplied with the boiler . It is 1.5m long.
Connection to the power supply
The pellet boiler should be connected to the mains.
Place the power cable in the bipolar switch connector located on the back of the boiler (Figure 9a).
Connect the boiler's power cable to the socket (Schuko) with grounding (Figure 9b).
Set the switch to position 1 (Figure 9c). The display of the boiler will light up and LED symbols will appear on it. If the boiler is
not used for a longer period of time, disconnect it from the power supply or turn the switch into the switched off (0) position.
In case of any breakdown or improper operation, switch the boiler off immediately or turn the switch into the switched off
position (0) and contact the authorized maintenance centre.
Figure 9b Figure 9c Figure 9a
