AVF7000 Operation Manual OP7000.1.1.7.R12ENG
11

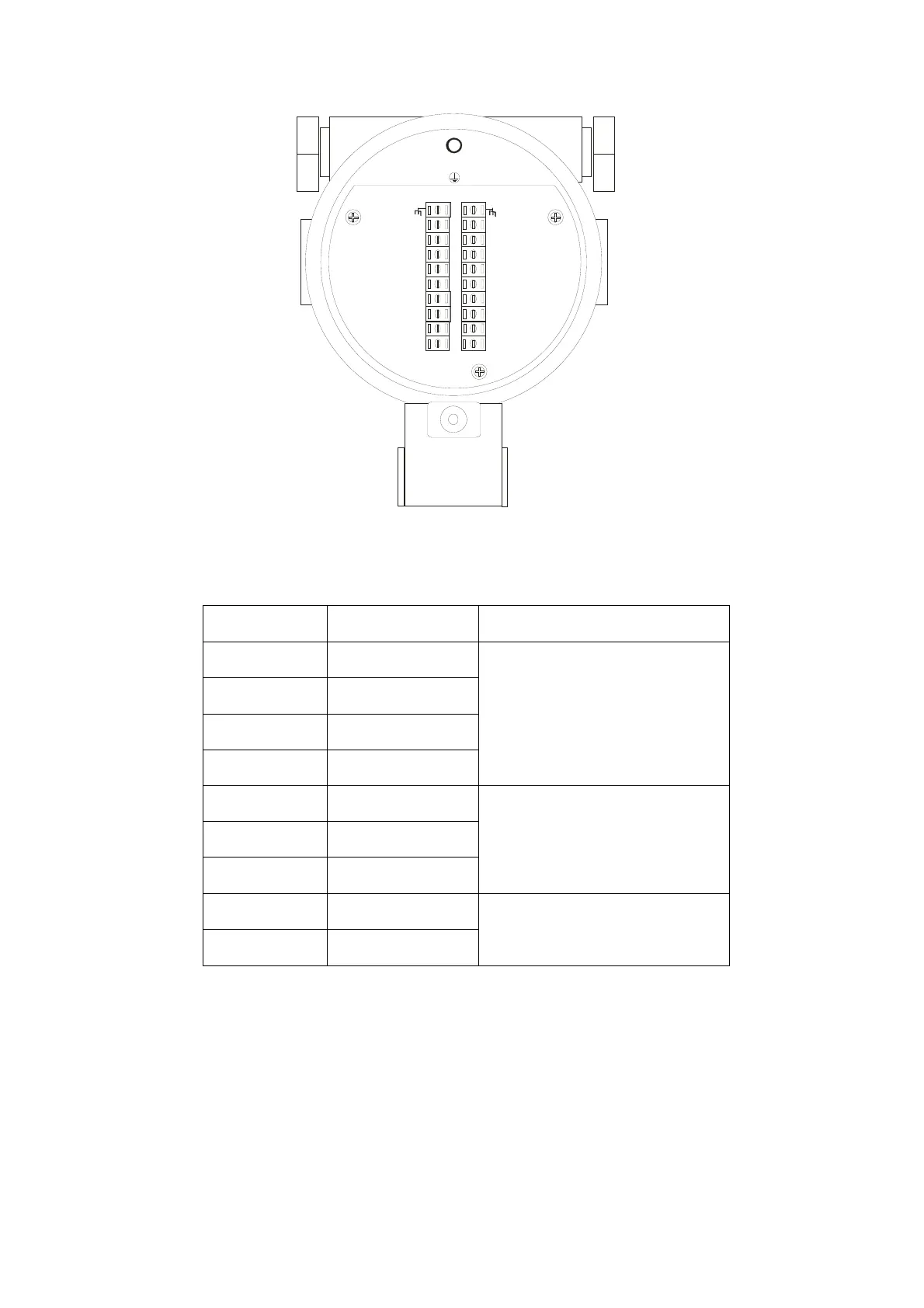

7.5 Separation board
Note: The terminals S1+, S2+ are signal ports of vortex sensor.
Terminal Cable color Sensor
PI+ red
PI- blue
PV+ black
PV- yellow
Pressure sensor
T+ white
TA- red
TB- red
Temperature sensor
S1+ orange
S2+ orange
Vortex sensor
PI+
PI-
PV+
PV-
TA-
T+
TB-
S1+
S2+
PI+
PI-
PV+
PV-
TA-
T+
TB-
S1+
S2+
