UPMIDIAS

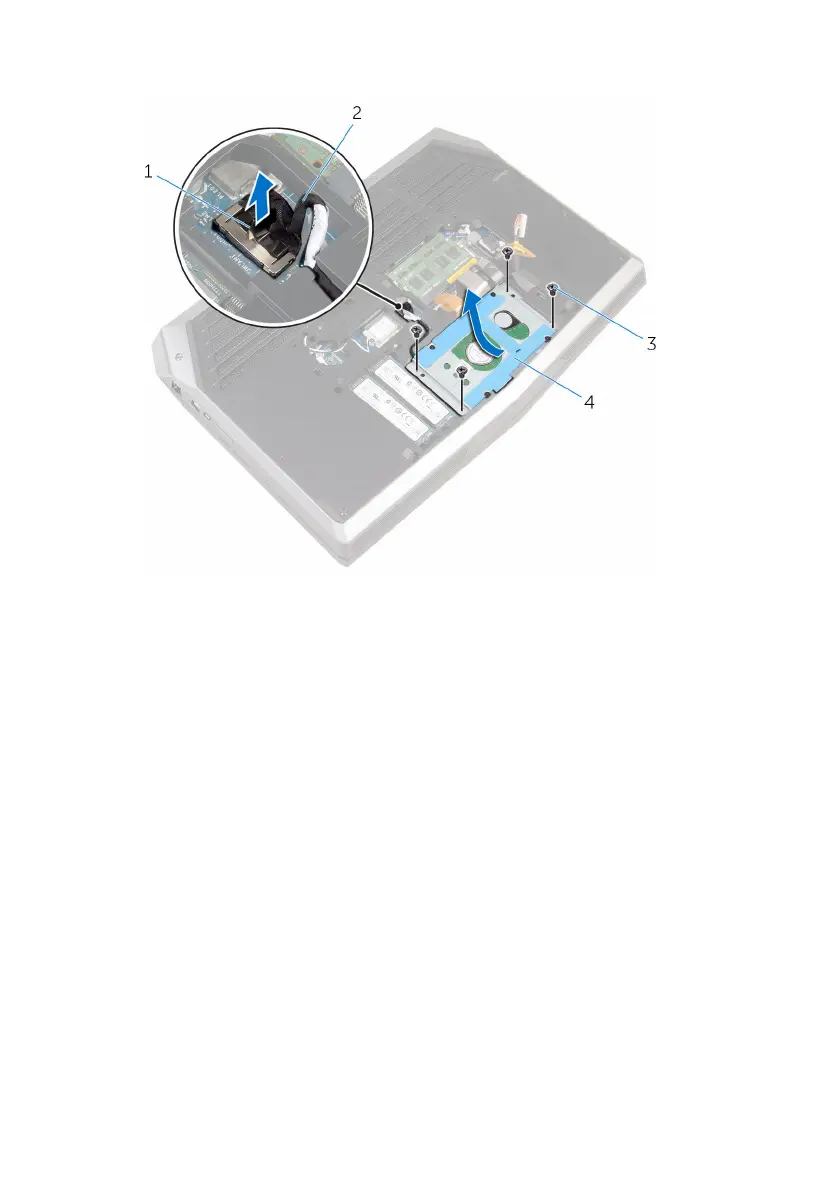

5 Lift and slide the hard-drive assembly off the computer base.
1 pull tab 2 hard-drive cable
3 screws (4) 4 hard-drive assembly
6 Remove the screws that secure the hard-drive bracket to the hard-drive
assembly.
28
